• Blue Sea 4306 WeatherDeck Water Resistant Fuse Panel - 6 Position - Grey
1 1

Blue Sea Systems

Blue Sea 4306 WeatherDeck Water Resistant Fuse Panel - 6 Position - Grey

Blue Sea 4306 WeatherDeck Water Resistant Fuse Panel - 6 Position - Grey

OM-BLUESEA-4306WEATHERDEC-4306

$115.09
$167.99 $115.09
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

WaterproofWaterproof
12vVoltage
DCAC/DC
6Max Breaker Quantity

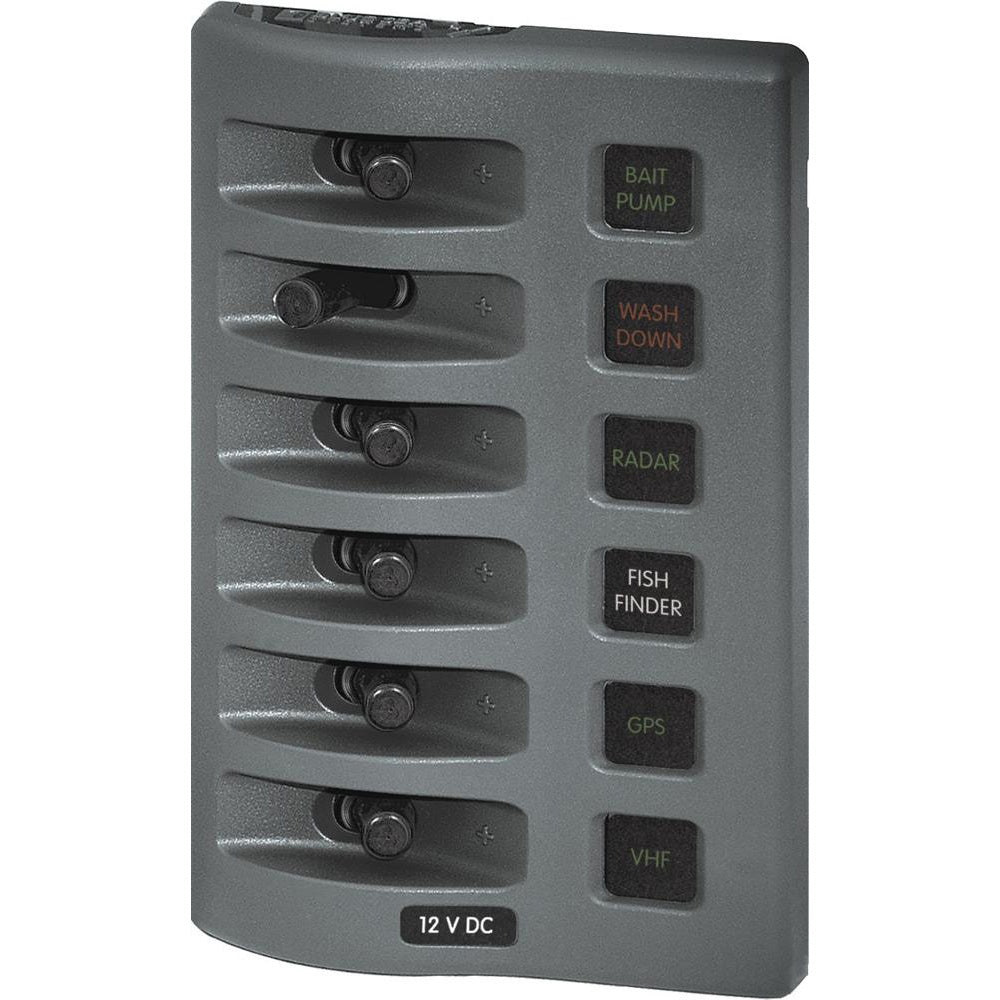

The Blue Sea Systems 4306 WeatherDeck fuse panel provides six switched DC circuits for exposed marine locations such as flybridges and open cockpits. It combines ATO/ATC fuse protection, toggle switches, and bicolored label lighting in a grey water-resistant panel.

  • Brand: Blue Sea Systems
  • Part number: 4306
  • Series: WeatherDeck
  • Color: Grey
  • Positions: 6
  • Nominal voltage: 12V DC
  • Circuit protection: ATO/ATC fuse
  • Maximum amperage: 15A at 12V DC per circuit
  • Panel cumulative rating: 90A
  • Backlighting: Bicolored LED labels
  • Backlighting amperage: 10mA per illuminated circuit
  • Backlighting voltage: 12V DC
  • Weather rating: Panel front rated IP67 when properly mounted with watertight mounting gasket
  • IP67 note: Protected against immersion up to 1 meter for 30 minutes
  • Mounting: Panel can be mounted in four orientations
  • Dimensions: 6.0 inch height, 3.88 inch width, 2.5 inch depth
  • Included: Six 4138 black WeatherDeck toggle switch boots
  • Included: Six 4150 WeatherDeck SPST ON-OFF toggle switches
  • Included: One 4215 waterproof DC label kit with 30 black square labels V1
  • Included: Six 5242 ATO/ATC 15 amp fuses
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP). See P65Warnings.ca.gov.

Specifications

WaterproofWaterproof
Voltage12v
AC/DCDC
Max Breaker Quantity6
BrandBlue Sea Systems
Manufacturer part #4306
UPC632085043063
Boxed dimensions9 x 6 x 5 in
Shipping weight1.5 lb
Country of originUNITED STATES
