• Blue Sea 4304 WeatherDeck Water Resistant Fuse Panel - 4 Position - Grey
1 1

Blue Sea Systems

Blue Sea 4304 WeatherDeck Water Resistant Fuse Panel - 4 Position - Grey

Blue Sea 4304 WeatherDeck Water Resistant Fuse Panel - 4 Position - Grey

OM-BLUESEA-4304WEATHERDEC-4304

$84.09
$119.99 $84.09
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

WaterproofWaterproof
4Max Breaker Quantity
DCAC/DC
12vVoltage

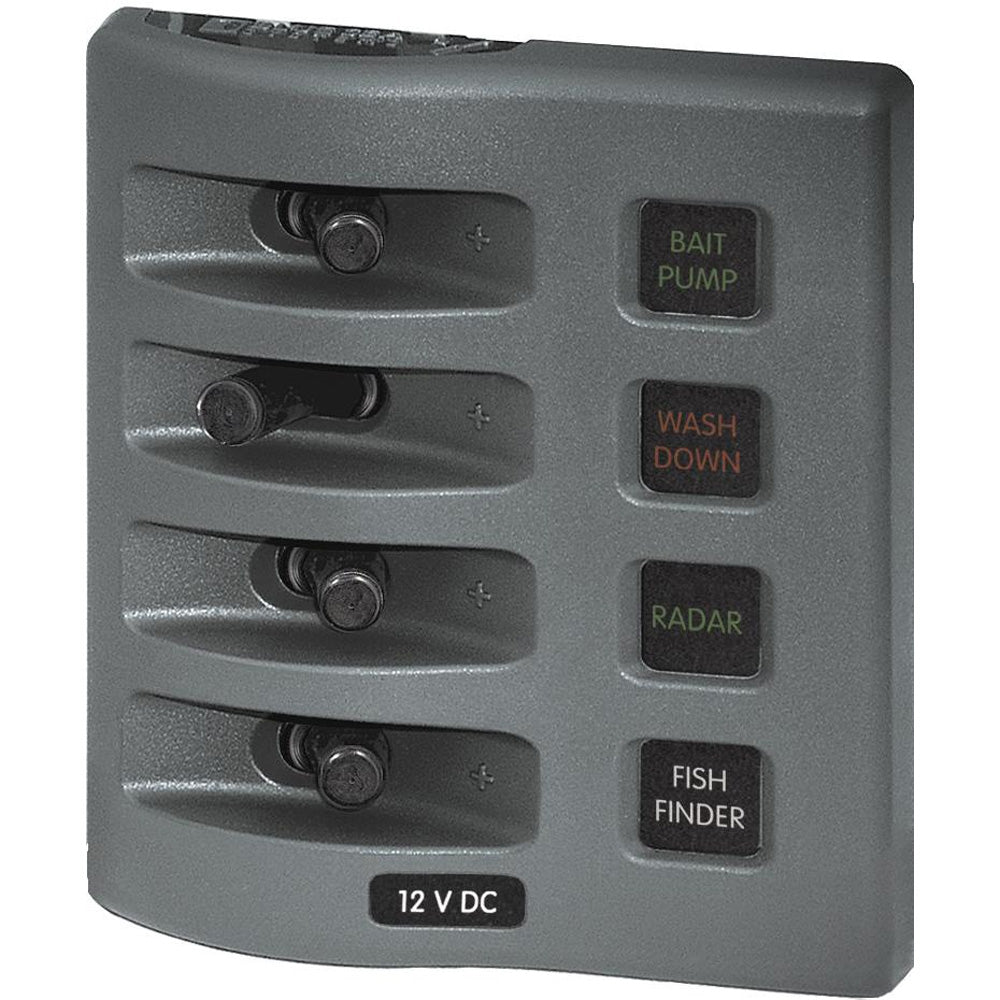

The Blue Sea Systems 4304 WeatherDeck fuse panel combines four switched circuits with integrated ATO/ATC fuse protection. It is made for flybridge and open cockpit installations where waterproof panel construction and readable circuit status are important.

  • Part number: 4304
  • Color: Gray
  • Positions: 4
  • Nominal voltage: 12V DC
  • Circuit protection: ATO/ATC fuse
  • Maximum amperage: 15A @ 12V DC per circuit
  • Panel cumulative rating: 60A
  • Weatherproof rating: Waterproof
  • Panel front rating: IP67 when properly mounted with watertight mounting gasket
  • IP67 protection: Protected against immersion up to 1 meter for 30 minutes
  • Backlit label: Bicolored LED
  • Backlighting amperage: 10mA per illuminated circuit
  • Backlighting voltage: 12V DC
  • Status indication: Red for OFF, green for ON and no color for blown circuit
  • Mounting: Can be installed in four orientations
  • Dimensions: 4.3 in H x 3.88 in W x 2.5 in D
  • Included: Four 4138 black WeatherDeck toggle switch boots, four 4150 SPST ON-OFF toggle switches, one 4215 waterproof DC label kit with 30 black square labels V1 and four 5242 15 Amp ATO/ATC fuses
  • California Prop 65: Can expose users to di(2-ethylhexyl)phthalate (DEHP)

Specifications

WaterproofWaterproof
Max Breaker Quantity4
AC/DCDC
Voltage12v
BrandBlue Sea Systems
Manufacturer part #4304
UPC632085043049
Boxed dimensions7 x 6 x 4 in
Shipping weight0.9 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
