• Blue Sea 4303 WeatherDeck® 12V DC Waterproof Switch Panel - 2 Position
1 1

Blue Sea Systems

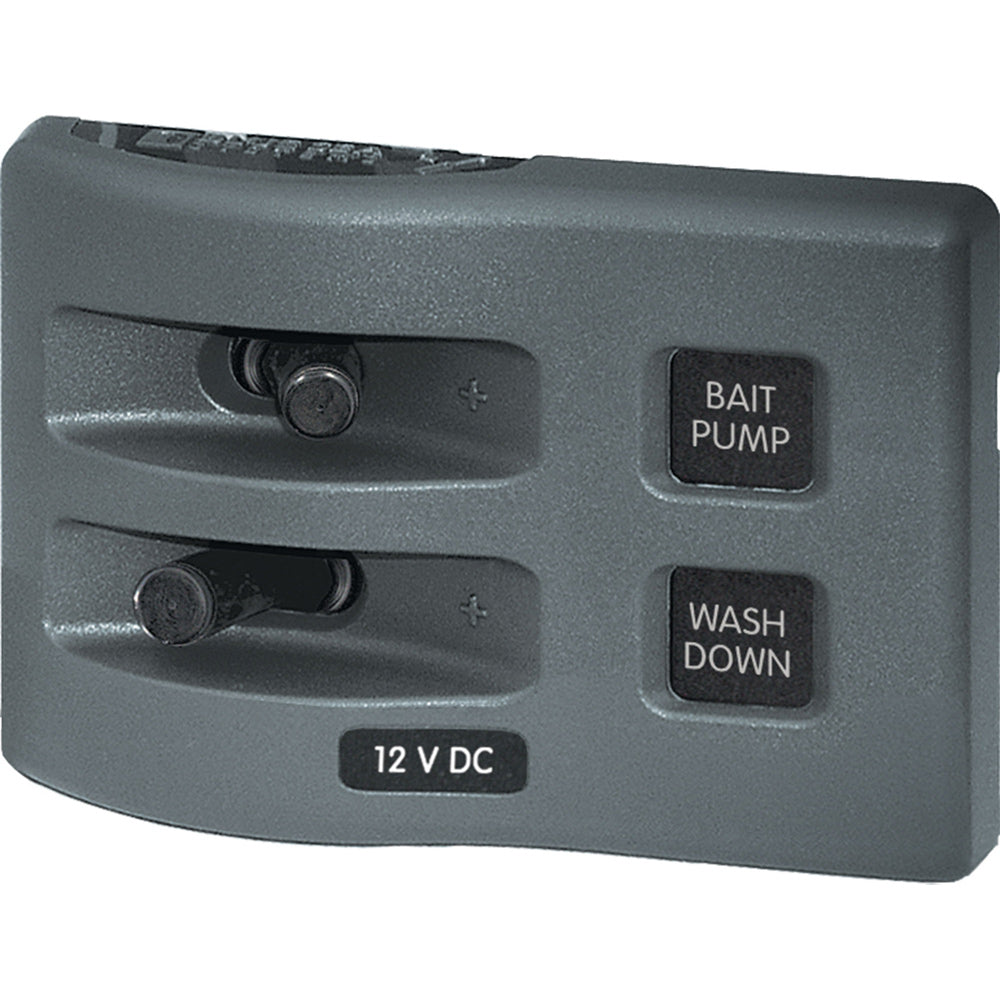

Blue Sea 4303 WeatherDeck® 12V DC Waterproof Switch Panel - 2 Position

Blue Sea 4303 WeatherDeck® 12V DC Waterproof Switch Panel - 2 Position

OM-BLUESEA-4303WEATHERDEC-4303

$48.01
$61.99 $48.01
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

WaterproofWaterproof
DCAC/DC
2Max Breaker Quantity
12/24vVoltage

The Blue Sea Systems 4303 WeatherDeck switch panel is a waterproof two-position control panel for 12V DC and 24V DC marine electrical systems. It is built for exposed locations, with a sealed front face when correctly mounted with the included watertight gasket.

  • Positions: 2
  • Nominal voltage: 12V DC/24V DC
  • Circuit protection: none
  • Maximum amperage: 15A at 12V DC per circuit
  • Waterproof rating: IP67 panel front when properly mounted with watertight mounting gasket
  • Faceplate: UV-stabilized, weather-resistant, snap-on design
  • Switch guards: integrated guards help reduce accidental switching
  • Mounting: can be installed in four orientations
  • Material: reinforced polycarbonate
  • Height: 2.60" (66.04 mm)
  • Width: 3.88" (98.55 mm)
  • Depth: 2.50" (63.5 mm)
  • Weight: 0.52 lb (0.24 kg)

Specifications

WaterproofWaterproof
AC/DCDC
Max Breaker Quantity2
Voltage12/24v
BrandBlue Sea Systems
Manufacturer part #4303
UPC632085043032
Boxed dimensions6 x 6 x 4 in
Shipping weight0.45 lb
Country of originUNITED STATES
