Blue Sea 3121 - SMS Panel Enclosure w/ELCI (16A) & 3 Blanks - 230V AC

Blue Sea 3121 - SMS Panel Enclosure w/ELCI (16A) & 3 Blanks - 230V AC

OM-BLUESEA-3121SMSPANEL-3121

$710.17
$1,228.99 $710.17
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ACAC/DC
230Voltage

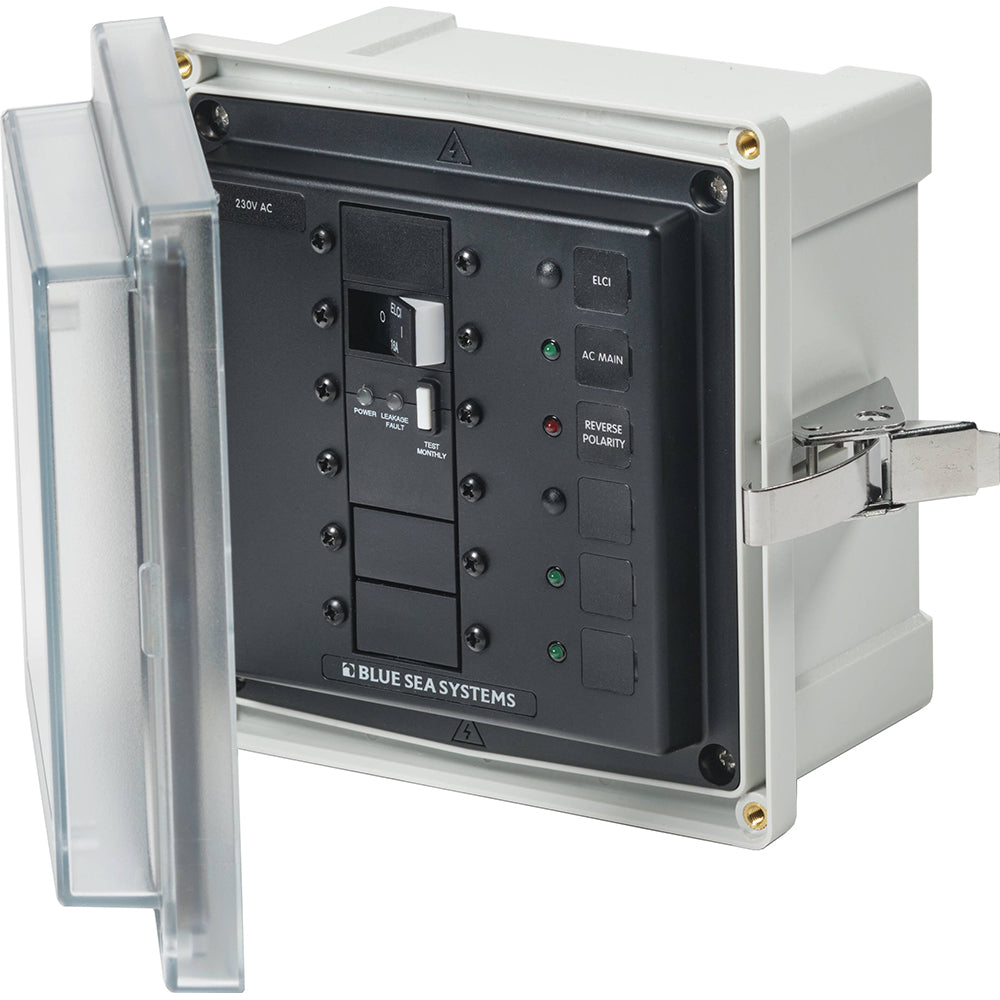

The Blue Sea Systems 3121 SMS Panel Enclosure is a 230V AC enclosure supplied with a 16A ELCI main circuit breaker and three blank positions. It is built for ELCI main circuit breakers and other large frame devices, with a clear cover for viewing breaker status.

  • Model: 3121
  • Breaker configuration: 1 x ELCI 16A Main 230V and 3 x blank
  • Standard: Meets ABYC E-11 when used with an ELCI main circuit breaker and mounted within 10 feet of the AC shore power inlet
  • Base: Glass-filled polycarbonate
  • Cover: Clear overlapping cover with increased gasket protection
  • Gasket: Oversized, formed-in-place seamless PUR gasket
  • Hardware: Easily removable stainless steel hinge pin and stainless steel latch
  • Blank positions: Accept Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
  • LEDs installed: 1 red reverse polarity LED for 230V AC and 3 green ON LEDs for 230V AC
  • Overall dimensions: 7.6 inches high x 7.4 inches wide x 4.7 inches deep (192 x 188 x 120mm)
  • Enclosure dimensions: 6 inches high x 6 inches wide x 4 inches deep (152 x 152 x 102mm)
  • Included: 3121 enclosure, 5 glands, labels, mounting hardware, and instruction manual
  • Quantity: Sold as an individual

Specifications

AC/DCAC
Voltage230
BrandBlue Sea Systems
Manufacturer part #3121
UPC632085031213
Boxed dimensions10 x 9 x 7 in
Shipping weight3.9 lb
Country of originUNITED STATES
