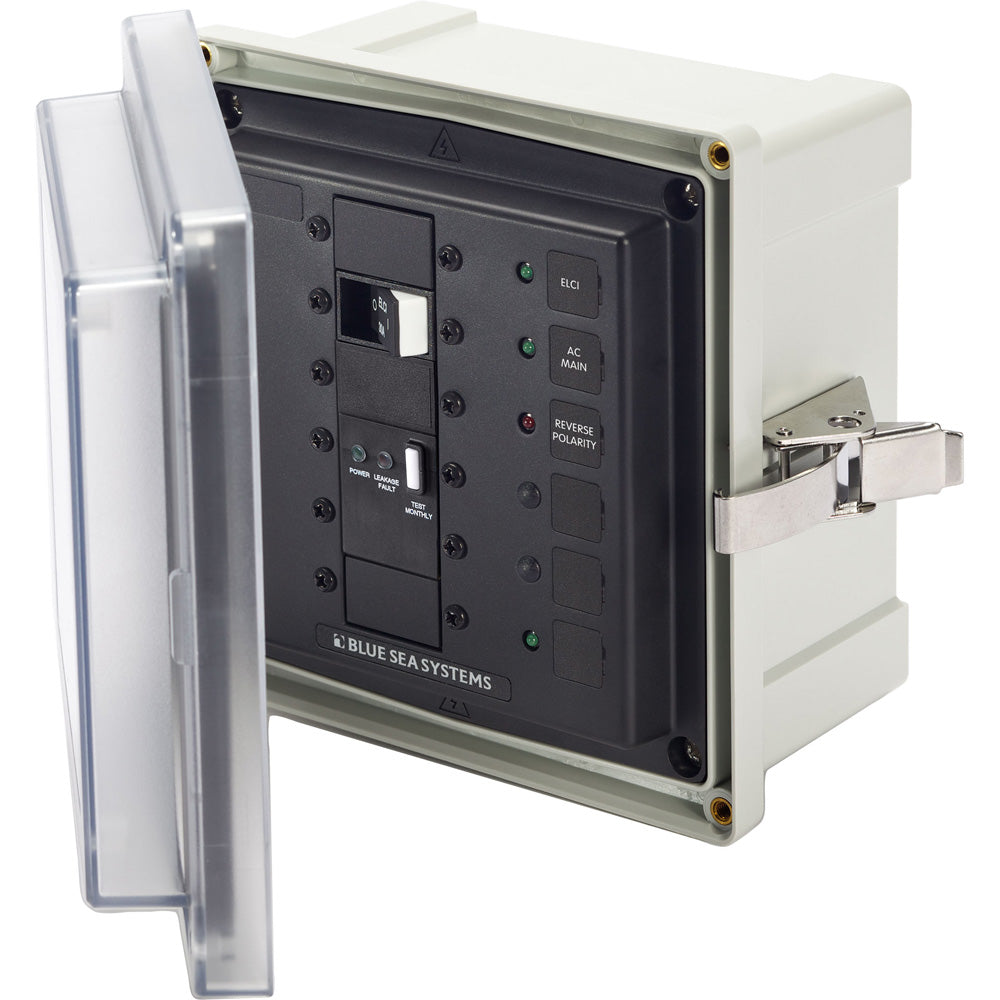

Blue Sea 3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position

The Blue Sea Systems 3119 SMS panel enclosure is a surface-mount enclosure for ELCI Main circuit breakers and other large frame devices. This model includes a 120/240V AC, 50A ELCI Main, plus one blank circuit position for custom breaker loading.

When used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet, it meets ABYC E-11. The enclosure uses a glass-filled polycarbonate mounting box with a clear covered design so breaker status remains visible.

• Model: 3119 SMS Surface Mount System Panel Enclosure
• Included main: 120/240V AC / 50A ELCI Main
• Circuit positions: one blank circuit position
• Breaker compatibility: blank positions accommodate Carling Technologies A-Series and C-Series Flat Rocker and ELCI Main circuit breakers
• Mounting box: glass-filled polycarbonate
• Cover: clear, overlapping cover with oversized seamless formed-in-place PUR gasket
• Hardware: stainless steel latch, removable stainless steel hinge pin, and stainless steel mounting hardware
• Included accessories: five waterproof glands, labels, mounting hardware, and instruction manual
• Lighting: LED lights for back lighting and ON indication
• Operating temperature: -35 degrees C minimum to 66 degrees C maximum
• Enclosure size: 6.0 x 6.0 x 4.0 inches (152 x 152 x 102 mm)
• Overall exterior dimensions: 7.6 x 7.4 x 4.7 inches (192 x 188 x 120 mm)
• Cover screws and hardware: 10-32 stainless steel
• Mounting hardware size: 1/4 inch diameter, #12 (6 mm)
• Weight: 7.00 lb (3.18 kg)
• Quantity: sold individually
• Warning: this product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
