• Blue Sea 3118 - SMS Panel Enclosure w/ELCI (50A) and 2 Blanks - 120V AC
1 1

Blue Sea Systems

Blue Sea 3118 - SMS Panel Enclosure w/ELCI (50A) and 2 Blanks - 120V AC

Blue Sea 3118 - SMS Panel Enclosure w/ELCI (50A) and 2 Blanks - 120V AC

OM-BLUESEA-3118SMSPANEL-3118

$656.23
$1,082.99 $656.23
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

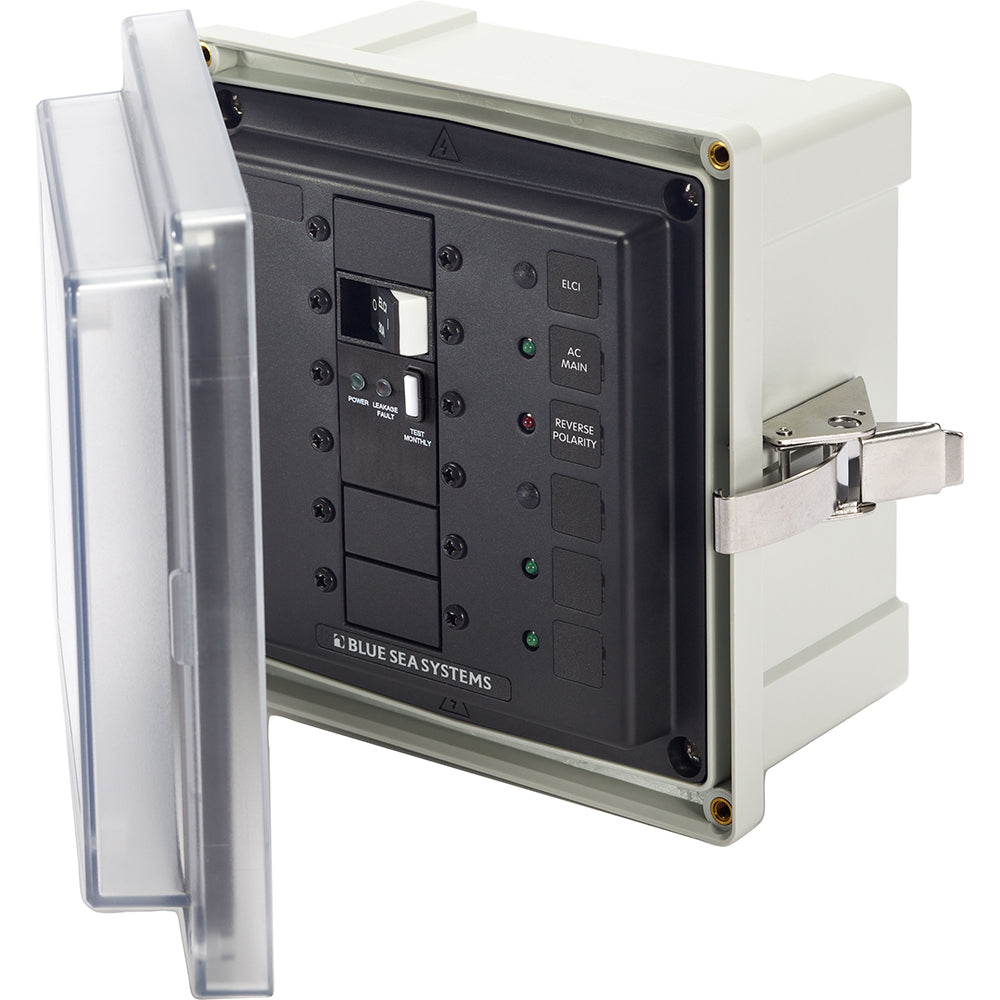

The Blue Sea Systems 3118 SMS Panel Enclosure is a 120V AC enclosure configured with a 50A ELCI main breaker position and two blank circuit positions. It is designed for ELCI main circuit breakers and other large frame devices in shore power installations.

  • Model: 3118 SMS Panel Enclosure
  • Configuration: 1 x ELCI Main 50A 120V and 2 x blanks
  • Standards note: Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 ft of the AC shore power inlet
  • Base material: Glass-filled polycarbonate
  • Cover: Clear cover with overlapping design
  • Gasket: Oversized formed-in-place seamless PUR gasket
  • Hardware: Removable stainless steel hinge pin and stainless steel latch
  • Blank circuit positions: Accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
  • Overall dimensions: 7.6 in H x 7.4 in W x 4.7 in D, 192 x 188 x 120 mm
  • Enclosure dimensions: 6 in H x 6 in W x 4 in D, 152 x 152 x 102 mm
  • Installed LEDs: 1 red reverse polarity 120V AC and 3 green ON 120V AC
  • Included: 3118 enclosure, 5 glands, labels, mounting hardware and instruction manual
  • Sold as: Individual enclosure
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects or other reproductive harm

Specifications

BrandBlue Sea Systems
Manufacturer part #3118
UPC632085031183
Boxed dimensions9 x 9 x 6 in
Shipping weight3.7 lb
Country of originUNITED STATES
