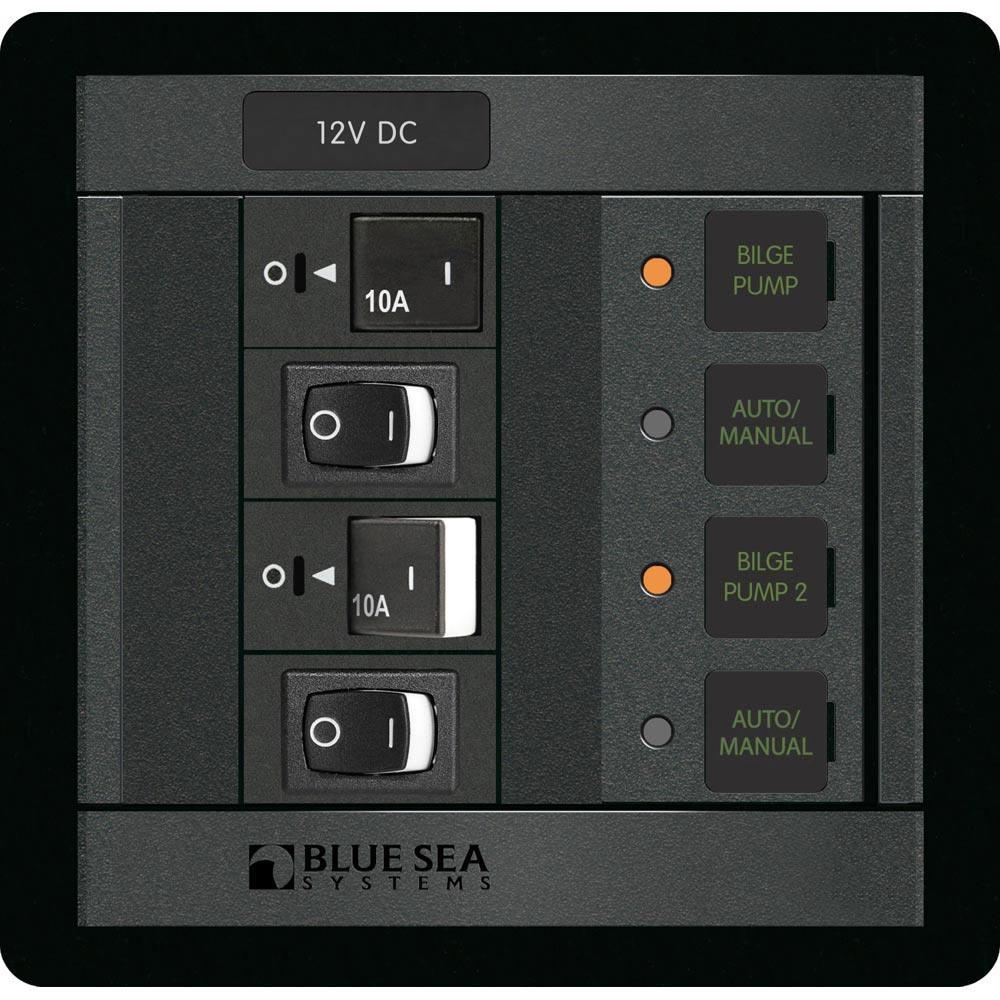

Blue Sea 1522 360 Panel Dual Bilge Pump Control

Blue Sea 1522 360 Panel Dual Bilge Pump Control

OM-BLUESEA-1522360PANEL-1522

$294.85
$473.99 $294.85
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

DCAC/DC

Manage two bilge pumps from the Blue Sea Systems 1522 360 Panel on your 12V DC boat. Restricted-off breakers protect the float-switch circuits around the clock, while manual override switches and LEDs let you operate the pumps and see their status.

Key features

  • Dual-pump control brings operation of two bilge pumps onto one panel.
  • Restricted-off circuit breakers provide continuous protection for the bilge pump float-switch circuits.
  • Power LEDs show when power is available at the float switches.
  • Manual override switches let you run the pumps directly.
  • Pump-running LEDs illuminate during both manual operation and float-switch activation.

Specifications

  • Model: 1522
  • Panel series: 360
  • Pumps controlled: 2
  • Nominal voltage: 12V DC
  • Height: 4.75 inches (120.65mm)
  • Width: 4.88 inches (123.95mm)
  • Included circuit breakers: 2 × 7427 A-Series Restricted Off Flat Rocker, single pole, 10A
  • Included switches: 2 × 7480 Rocker Switch, SPST, ON-OFF

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

AC/DCDC
BrandBlue Sea Systems
Manufacturer part #1522
UPC632085015220
Boxed dimensions9 x 7 x 5 in
Shipping weight1.3 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
