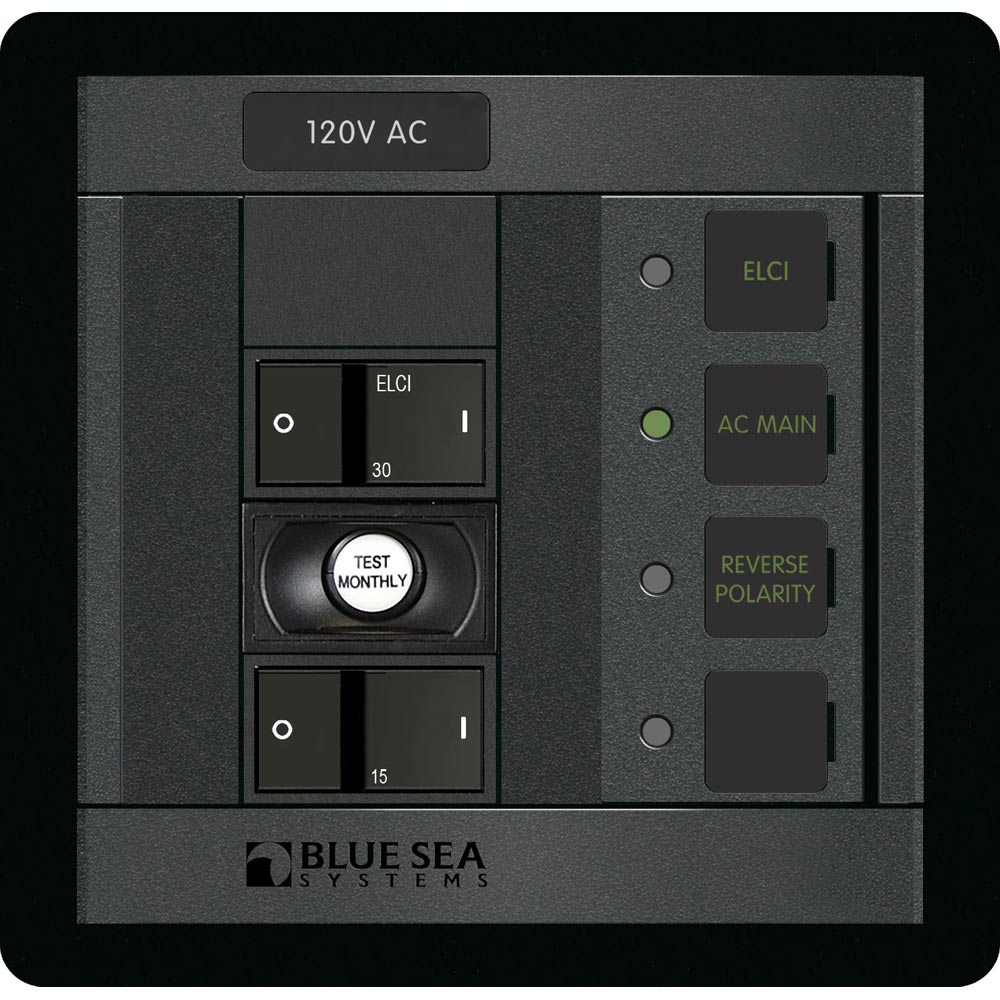

Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position

The Blue Sea Systems 1190 is a 120V AC ELCI main panel with one branch breaker position for marine shore power systems. It combines a 30A double pole ELCI main breaker with leakage protection and a 15A AC branch flat rocker breaker.

• Positions: 1
• Nominal voltage: 120V AC
• Main breaker: 30A AC ELCI Main Residual Current Circuit Breaker
• Leakage trip amperage: 30 mA
• Protection: Overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
• Branch breaker: One 15A AC Branch Flat Rocker Circuit Breaker
• Indicator: Red Reverse Polarity LED
• Labels: Includes 4206 AC Panel Basic Square Format Label Set
• Lighting: All circuit label positions are backlit with green LEDs; labels are lit when the panel is powered regardless of switch position
• ON indication: Includes ON indicating LEDs
• Dimensions: 4.75 in. H x 4.88 in. W x 3.99 in. D (120.65mm x 123.95mm x 101.35mm)
• Weight: 1.00 lb. (0.45kg)
• Included breaker: 7403 A-Series Flat Rocker Circuit Breaker, Single Pole 15A
• Included ELCI breaker: 3102100 A-Series ELCI Main Circuit Breaker, Double Pole 120V AC 30A
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
