• Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position
  • 34970
  • 34970
1 3

Blue Sea Systems

Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position

Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position

OM-BLUESEA-11003HDSERIES-11003

$95.68
$137.99 $95.68
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

YesAFD
3Positions

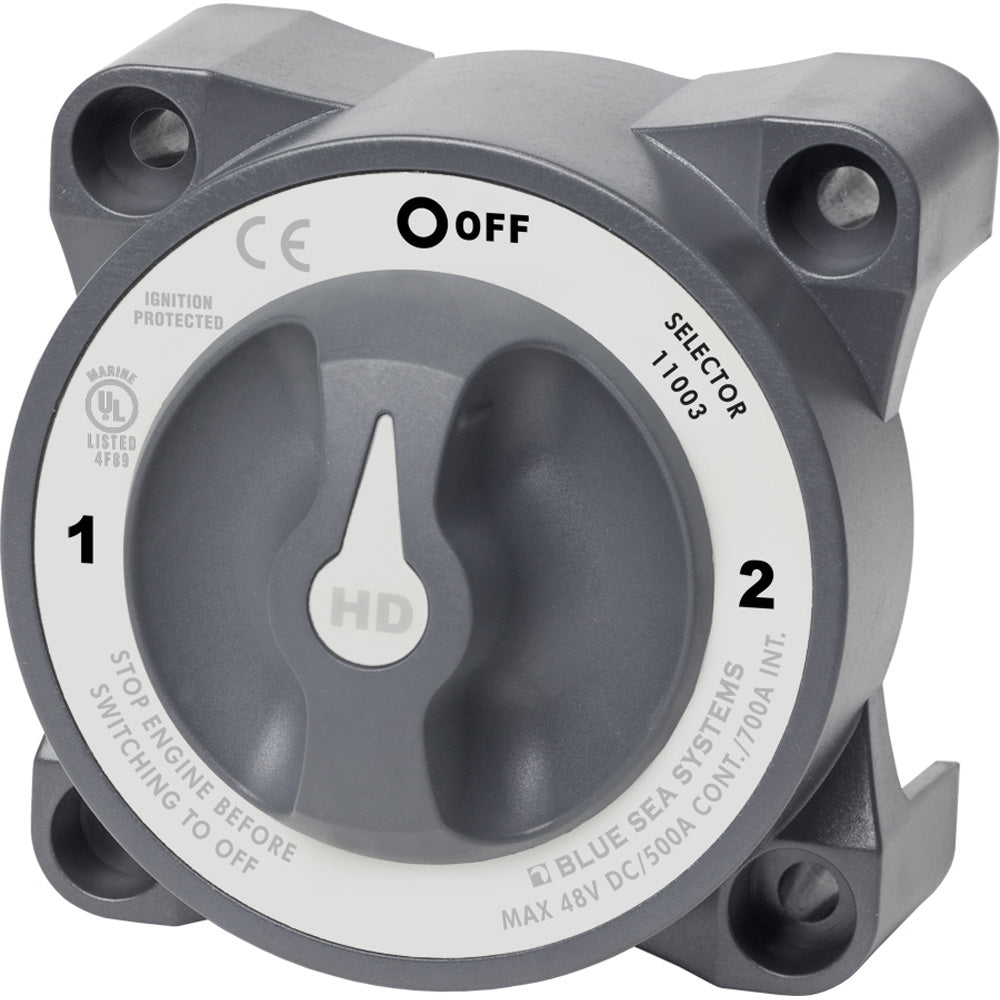

Manage your boat's battery connection with the Blue Sea Systems 11003 HD-Series three-position switch with alternator field disconnect. For marine electrical installations, it offers a 500A continuous rating and ignition protection suitable for gasoline-powered boats.

Key features

  • Textured knob positions let you identify the setting by touch.

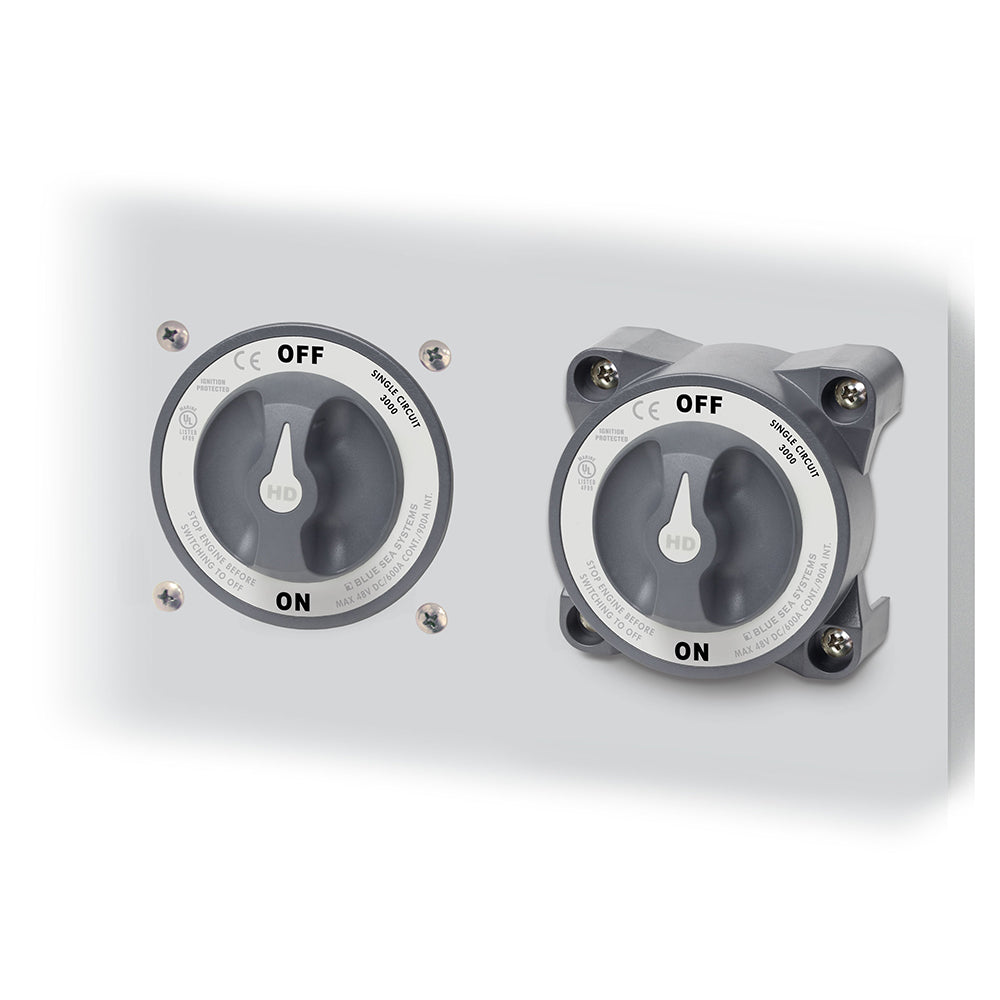

  • Surface and rear-panel mounting options give you flexibility in placement.
  • Tin-plated copper studs provide conductive, corrosion-resistant cable connections.
  • Studs with 7/8-inch length accommodate multiple cable terminals.
  • Ignition protection permits installation aboard gasoline-powered boats.
  • Meets ABYC battery-switch requirements for marine installations.

Specifications

  • Brand: Blue Sea Systems
  • Model: 11003
  • Series: HD-Series
  • Positions: 3
  • Function: Alternator field disconnect
  • Continuous current rating: 500A
  • 5-minute current rating: 700A
  • 60-second current rating: 1150A
  • 10-second current rating: 2750A
  • Maximum voltage: 32V DC

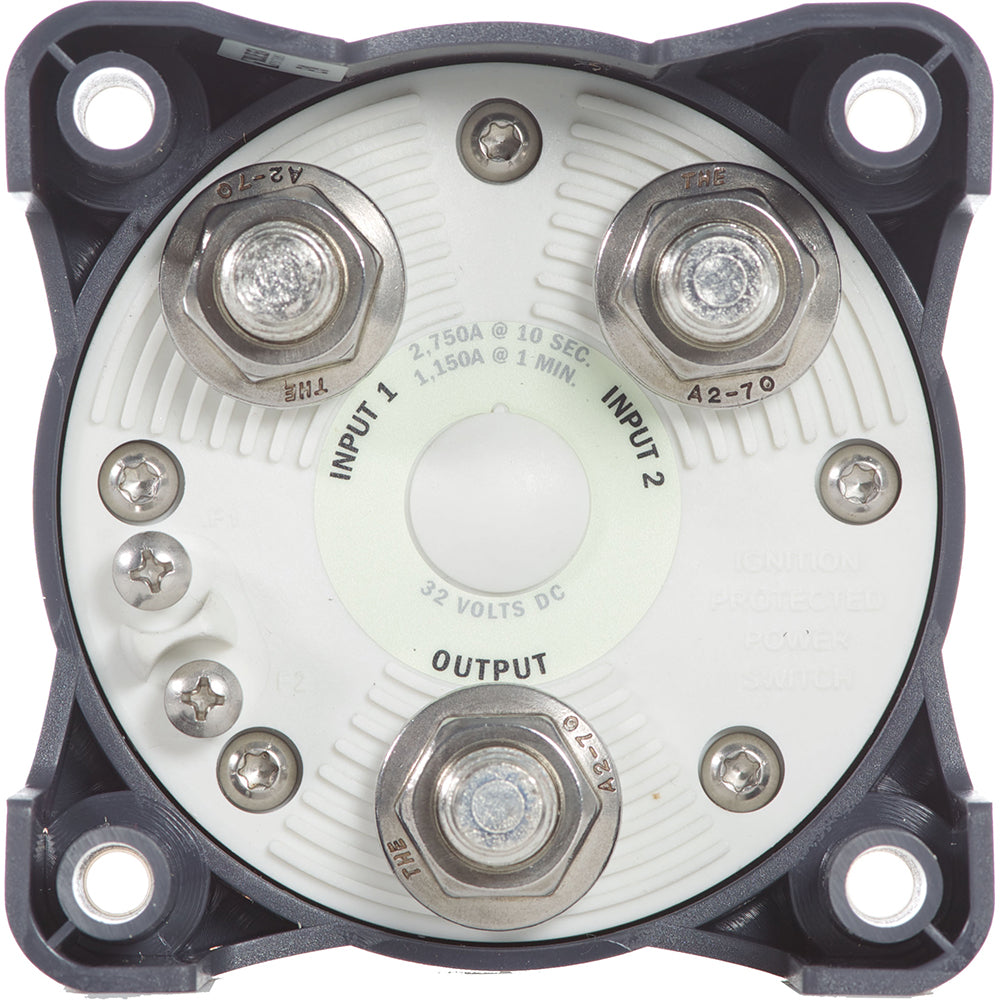

  • Cable capacity: Two 4/0 AWG battery cables
  • Studs: M12 tin-plated copper
  • Stud length: 7/8 inch / 22.22mm
  • Ring terminal compatibility: 1/2 inch and M12

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

AFDYes
Positions3
BrandBlue Sea Systems
Manufacturer part #11003
UPC632085110031
Boxed dimensions9 x 7 x 3 in
Shipping weight1.3 lb
Country of originUNITED STATES
