Black Oak LED

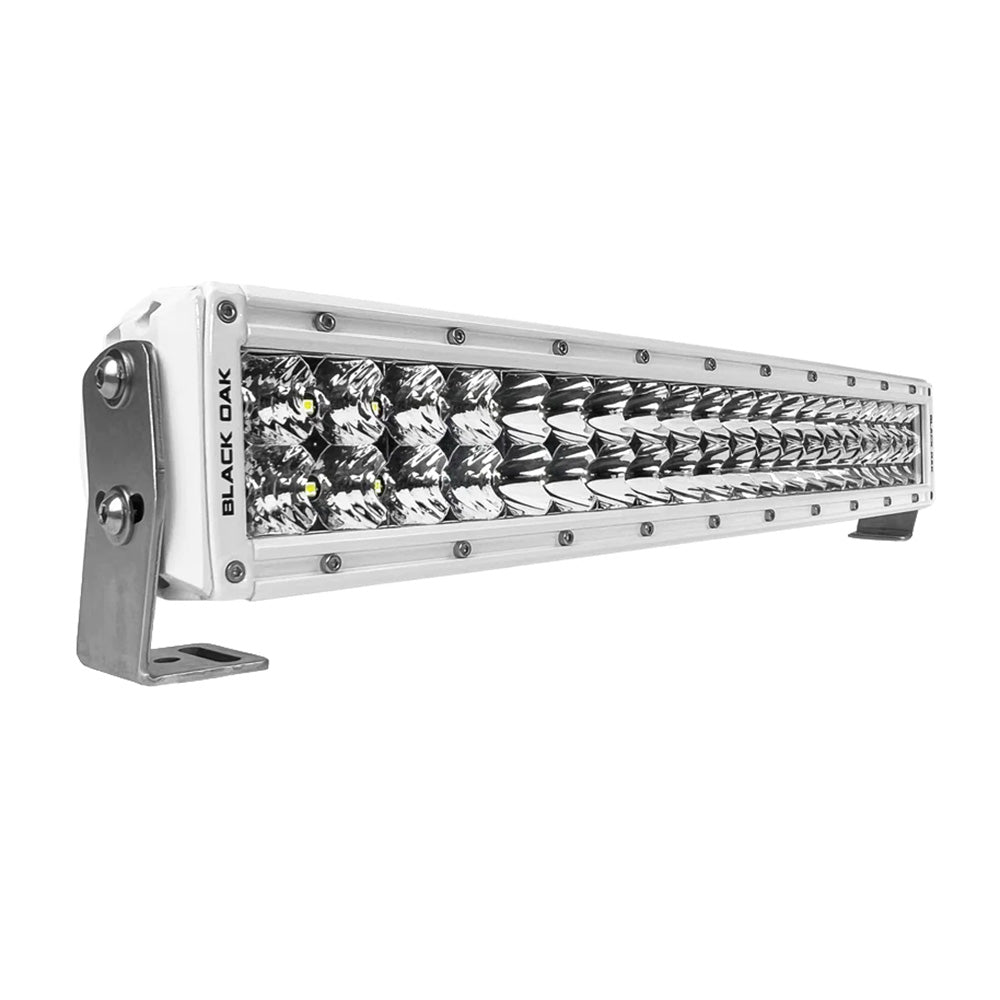

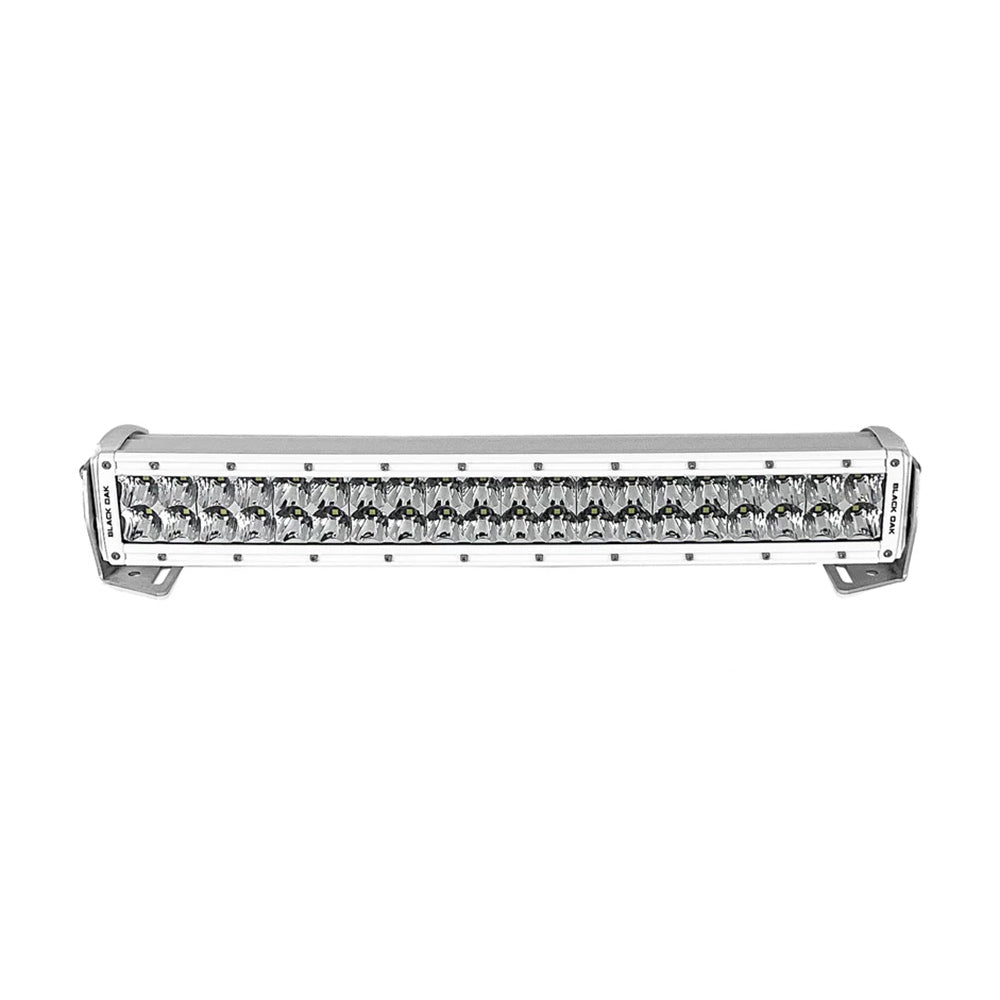

Black Oak Pro Series 3.0 Curved Double Row 20" LED Light Bar - Combo Optics - White Housing
Black Oak Pro Series 3.0 Curved Double Row 20" LED Light Bar - Combo Optics - White Housing
SKU:OM-BLACKOAKLED-PROSERIES3-20CCMD5OS
Low stock: 2 left
Couldn't load pickup availability
Overview
For boaters adding light for docking or searching, the Black Oak LED Pro Series 3.0 20-inch curved light bar combines flood and spot beams. Its white housing and double-row layout also suit outdoor vehicle applications such as UTV and truck lighting.
Key features
- Combination optics bring broad coverage and focused lighting together.
- Ceramic protection helps defend against saltwater, UV exposure and corrosion.
- The two-stage Hydrex sealing system allows the bar to be fully submerged.
- A Lexan cover with UV protection shields the lens during outdoor use.

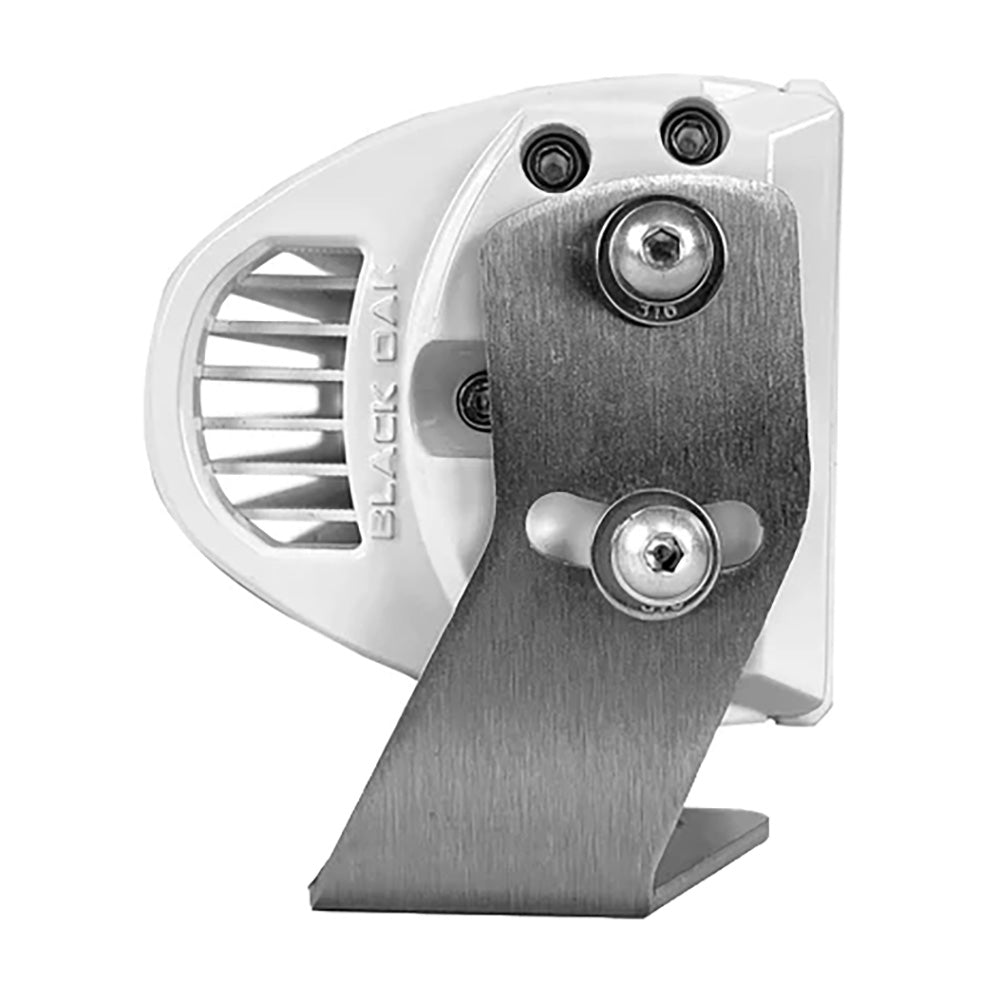

- Marine-grade stainless steel multi-mount brackets provide mounting options.
- The supplied harness includes a switch, fuse and relay for installation.
Specifications
- Series: Pro Series 3.0
- Nominal size: 20 inches
- Shape: Curved
- LED arrangement: Double row
- Housing: White, DuPont powder-coated Dynamax
- Optics: Flood/spot combination
- Total wattage: 200W
- Current draw: 8.4A
- LED quantity: 40
- Raw light output: 26,400 lumens
- Weight: 7.8 lbs.
- IP rating: IP69K
- Connection: Deutsch connector
- Width x height with mounting bracket: 21.4 x 4.125 inches
- Bracket material: 9-gauge marine-grade stainless steel
- Harness wire: 12 gauge
- Warranty: Limited lifetime
Good to know
Each unit is sold individually with mounting brackets, installation hardware and a complete wiring harness containing a fuse, relay and switch.
Specifications
| Beam Pattern | Spot-Flood Combo |
|---|---|
| Housing | White |
| Length (Inches) | 20" |
| Voltage - Input Range (Volts) | 12v |
| Brand | Black Oak LED |
| Manufacturer part # | 20CCM-D5OS |
| UPC | 860470002207 |
| Boxed dimensions | 25 x 6 x 6 in |
| Shipping weight | 8.0 lb |
