Black Oak LED

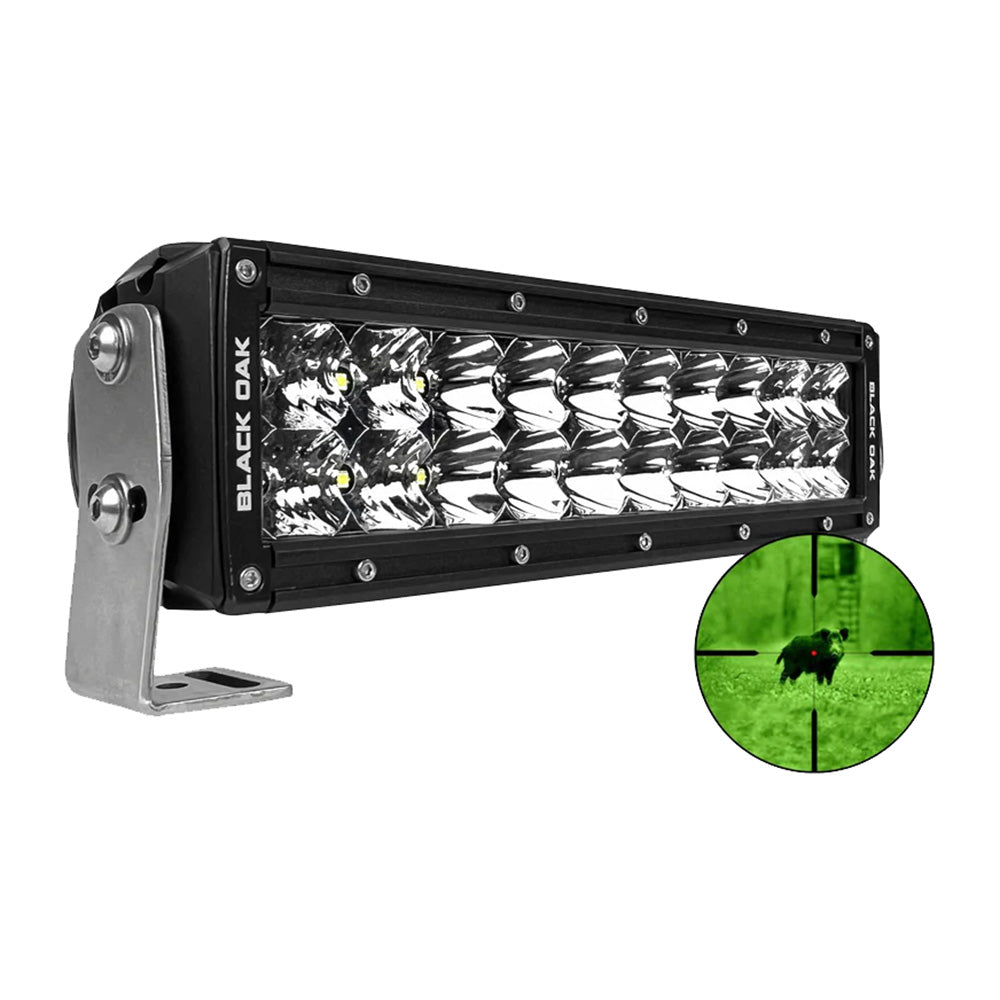

Black Oak Pro Series 3.0 10" 850nm Infrared Double Row LED Light Bar - Combo Optics - Black Housing
Black Oak Pro Series 3.0 10" 850nm Infrared Double Row LED Light Bar - Combo Optics - Black Housing
SKU:OM-BLACKOAKLED-PROSERIES3-10IR850
Low stock: 1 left
Couldn't load pickup availability
Overview
For night fishing, hunting or vehicle operations using night vision equipment, the Black Oak LED Pro Series 3.0 infrared light bar supplies 850nm illumination. Its double-row layout combines flood and spot optics for use with night vision optics or infrared cameras.
Key features
- Dedicated infrared LEDs generate IR output without relying on a filter.
- Combined flood and spot optics provide both lighting patterns in one bar.
- Ceramic protection helps resist UV exposure, salt water and corrosion.
- A two-stage Hydrex seal and a breather help manage water intrusion and internal fogging.
- A UV-protected Lexan lens cover and Dupont powder coating protect exterior components.
- Marine-grade stainless steel multi-mount brackets provide mounting options.
Specifications
- Series: Pro Series 3.0
- Nominal size: 10 inches
- LED arrangement: Double row
- Wavelength: 850nm
- Optics: Flood/spot combination
- Housing color: Black
- Total wattage: 100W
- Current draw: 3.15A
- LED quantity: 20
- Weight: 6.6 lbs
- IP rating: IP69K
- Connection: Deutsch connector
- Width with mounting bracket: 11.4 inches
- Height with mounting bracket: 4.125 inches
- Bracket material: 9-gauge marine-grade stainless steel
- Lens cover material: Lexan
- Warranty: Lifetime
Good to know
Supplied components include the light bar, mounting brackets, stainless hardware, 12-gauge wire and a wiring harness with fuse and relay.
Specifications
| Beam Pattern | Spot-Flood Combo |
|---|---|
| Housing | Black |
| Length (Inches) | 10" |
| Voltage - Input Range (Volts) | 12v |
| Brand | Black Oak LED |
| Manufacturer part # | 10IR-850 |
| UPC | 850044517008 |
| Boxed dimensions | 16 x 10 x 4 in |
| Shipping weight | 5.5 lb |
