Overview

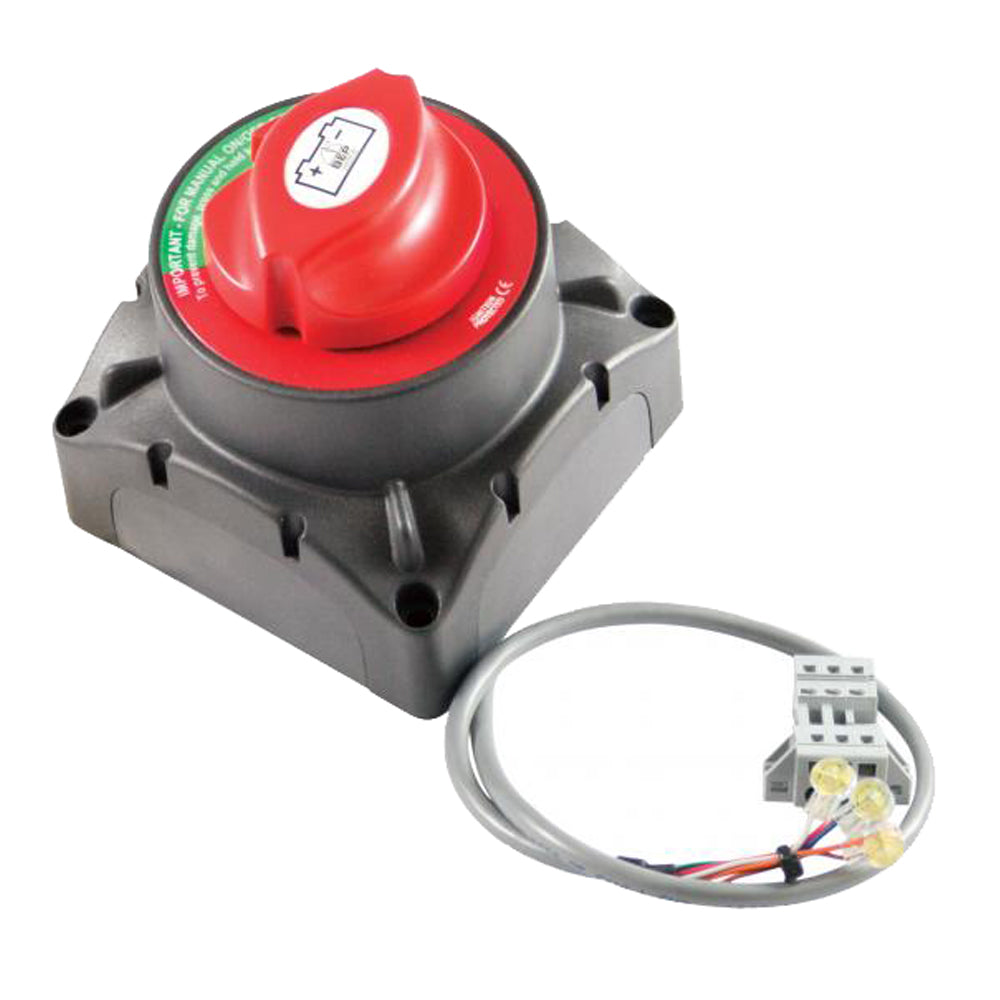

Control battery isolation remotely with the BEP Marine 720-MDO battery switch, including for bow and stern thrusters. Mounting it close to the battery allows shorter cable runs, reducing the copper cable weight and expense associated with installation.

Key features

  • Remote switching lets you isolate battery power with the switch mounted beside the battery.
  • Optical sensing supports advanced installations that switch circuits at a different voltage from the control supply.
  • Positive or negative line switching gives flexibility when arranging the electrical system.
  • Main contacts can be isolated from the control circuit for operation from another battery source.
  • A manual override option supports CE/ABYC requirements, while LED status identification serves the remote control switch.
  • Standby draw below 5mA limits the control circuit’s demand while idle.

Specifications

  • Brand: BEP Marine
  • Model: 720-MDO
  • Nominal system voltage: 12/24V
  • Listed voltage range: 9.5–32V DC
  • Continuous rating: 500A DC
  • Intermittent rating: 700A DC
  • Cranking rating: 2500A DC
  • Standby current: Less than 5mA
  • Function: On/Off
  • Dimensions (L x W x H): 4 x 4 x 4.33 inches
  • Studs: 2 x 1/2 inch / 12mm

Good to know

Advanced optical-sensor configurations support switching 36V or 48V circuits, including a 48V bow thruster circuit with a 24V house supply. The switch uses interchangeable labels, item 713 or 715, and shares mounting options with standard BEP battery switches.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

BrandBEP Marine
Manufacturer part #720-MDO
UPC843687003731
Boxed dimensions5 x 5 x 5 in
Shipping weight1.45 lb
Country of originNEW ZEALAND
