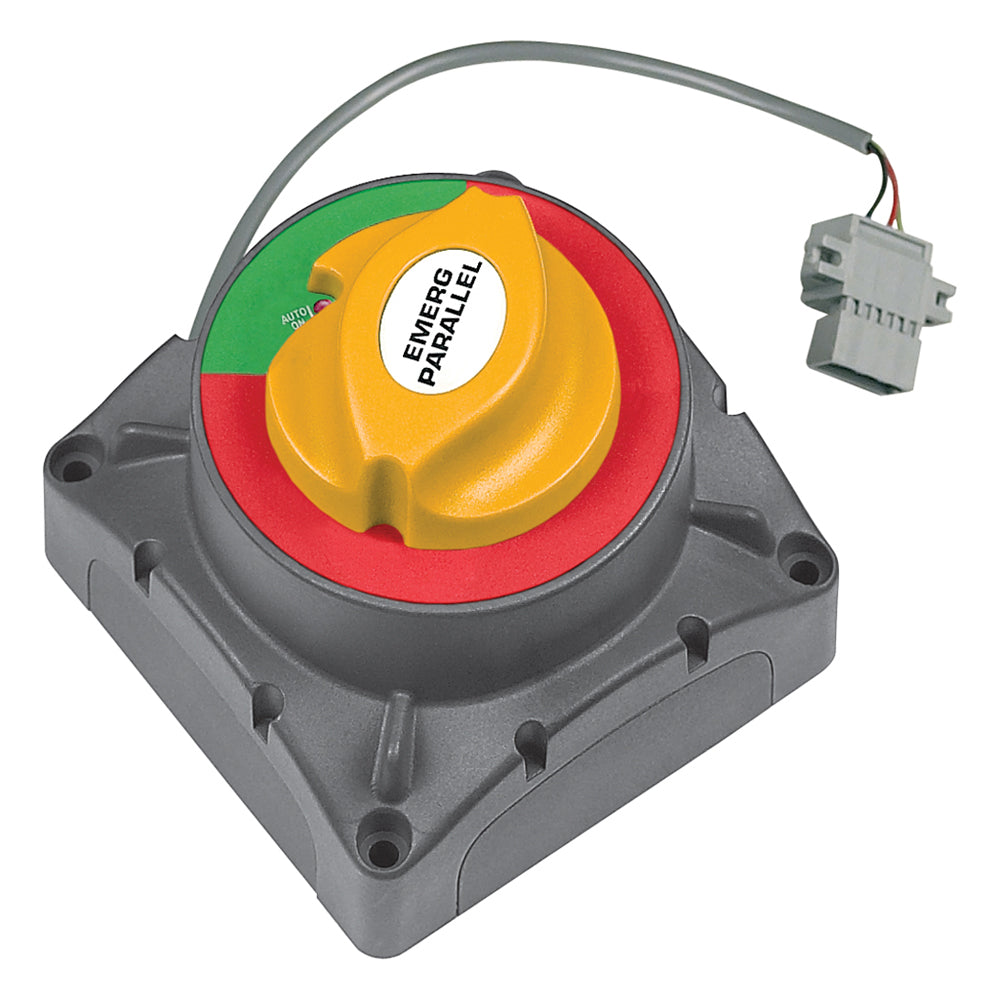

BEP Emergency Parallel Switch - 12/24V - 500A

When a large engine needs an emergency start, the BEP motorized parallel switch lets you connect the battery banks remotely through a momentary dash button. It ends the parallel connection automatically after 10 minutes, helping prevent drained starting batteries caused by leaving the connection engaged.

Key features

• Remote activation lets you initiate an emergency battery connection from the dash.
• A 10-minute automatic shutoff removes the parallel connection without a second button press.
• Support for up to 2500A for 10 seconds accommodates emergency starting of large engines.
• Manual override gives you another way to operate the switch.
• Recessed or surface mounting provides a choice of installation arrangements.
• Tinned copper conductors, stainless steel nuts and high-temperature fiber-reinforced plastics support use in marine conditions.

Specifications

• Operating voltage: 12/24V
• Current rating: 500A
• Emergency starting capacity: Up to 2500A for 10 seconds
• Remote parallel duration: 10 minutes
• Dimensions (L x W x H): 4 x 4 x 4.3 inches
• Switching operation: On/Off
• Ignition protection: Yes
• Voltage-sensitive function: None
• Mounting options: Recessed or surface

Good to know

Both battery banks must have the same voltage. Sold individually, the package contains the parallel switch and an instruction manual.
