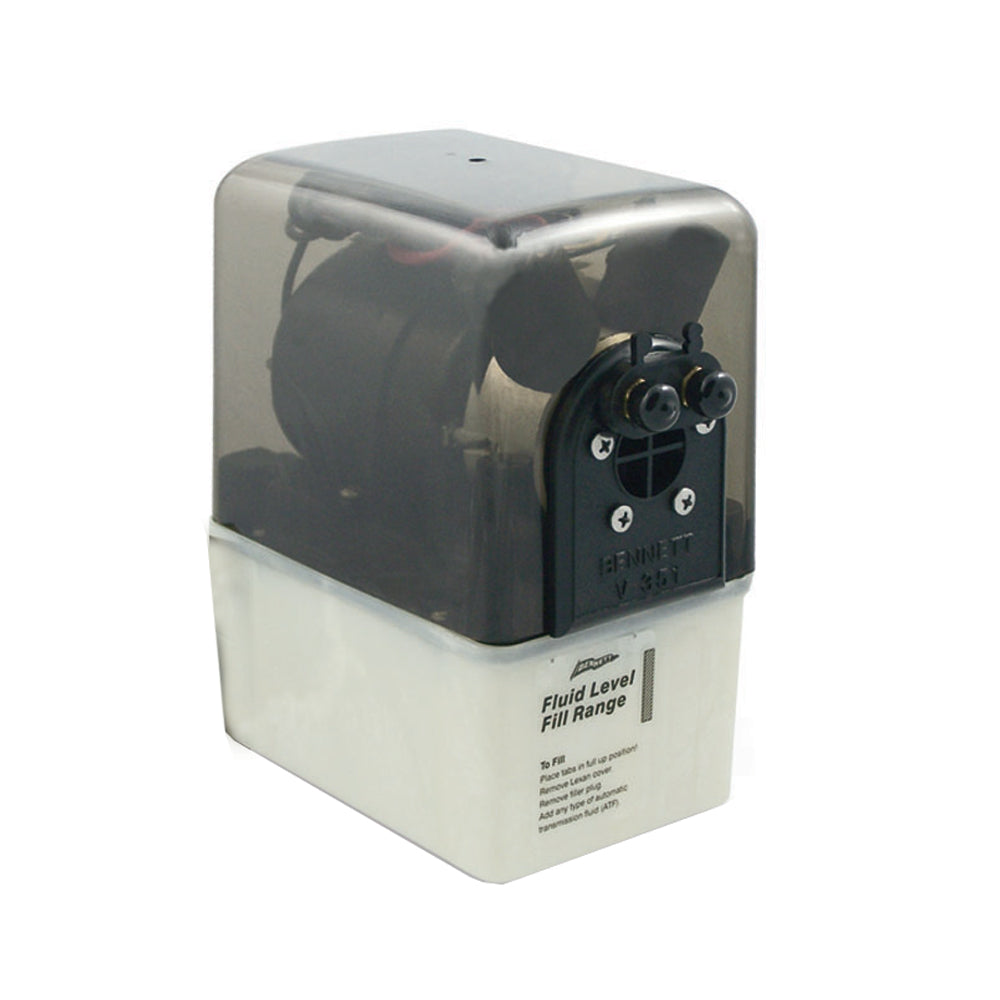

Bennett V351HPU1 Hydraulic Power Unit - 12V Pump

The Bennett Marine V351HPU1 Hydraulic Power Unit is a 12V pump assembly for trim tab systems. It creates the hydraulic pressure used to move trim tabs up and down, then uses solenoid valves to direct fluid to the actuators.

The unit includes the pump, solenoid valves, reservoir, and cover. Its Lexan cover helps protect the electrohydraulic unit during occasional washdown, while the translucent reservoir lets you check fluid level visually.

• Model: V351HPU1
• Voltage: 12V
• Function: Raises and lowers hydraulic trim tabs
• Valves: Two solenoid valves direct fluid flow to the actuators and lock tightly to hold tab position
• Dimensions: 4 inch x 7 1/2 inch x 5 1/2 inch
• Fluid: Uses automatic transmission fluid
• Included: Pump, solenoid valves, reservoir, and cover

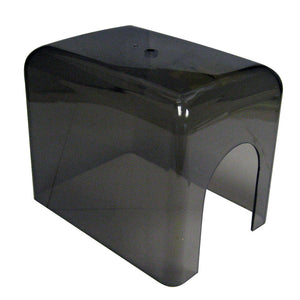

• Cover: Lexan cover protects the electrohydraulic unit from occasional washdown
• Reservoir: Translucent reservoir allows quick fluid checks
• Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
• Return note: This product may not be returned to the original point of purchase; contact the manufacturer with issues or concerns.
