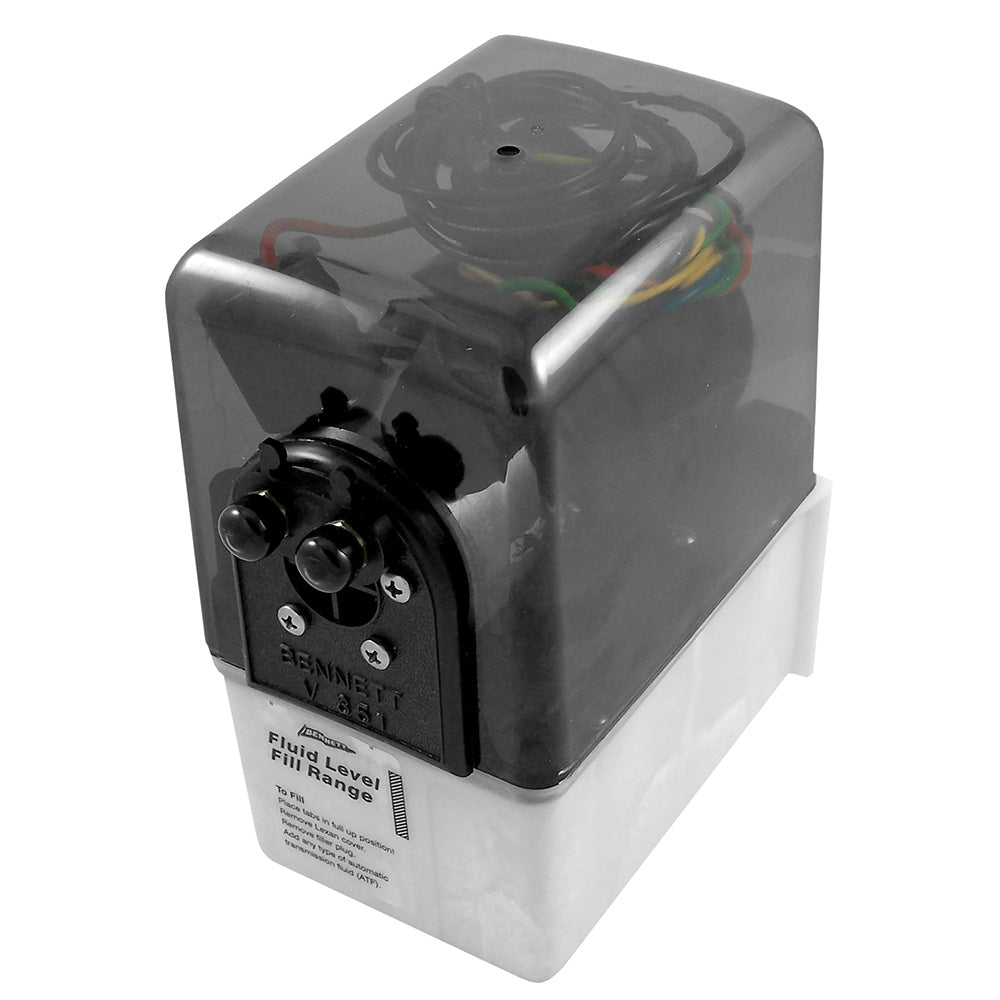

Bennett Marine Hydraulic Power Unit 12V w/Deutch Connector

This Bennett Marine hydraulic power unit is the 12V pump assembly for operating trim tabs. It is built to create the hydraulic pressure needed to raise and lower the tabs, with solenoid valves controlling fluid flow to the actuators.

The unit includes the main hydraulic components in a compact package, with a translucent reservoir for quick fluid checks. The mounting bracket is not included and is sold separately as # H1179.

• Voltage: 12V
• Connector: Deutch connector
• Function: Provides hydraulic pressure for trim tab raising and lowering
• Valves: Two solenoid valves direct fluid to the actuators and hold the tabs in position
• Cover: Lexan cover provides water resistance for the electrohydraulic unit
• Reservoir: Translucent reservoir allows fluid level checks at a glance
• Fluid: Uses automatic transmission fluid
• Included: Pump, solenoid valves, reservoir, and cover
• Dimensions: 4 in. x 7 1/2 in. x 5 1/2 in.
• Sold separately: Mounting bracket # H1179
