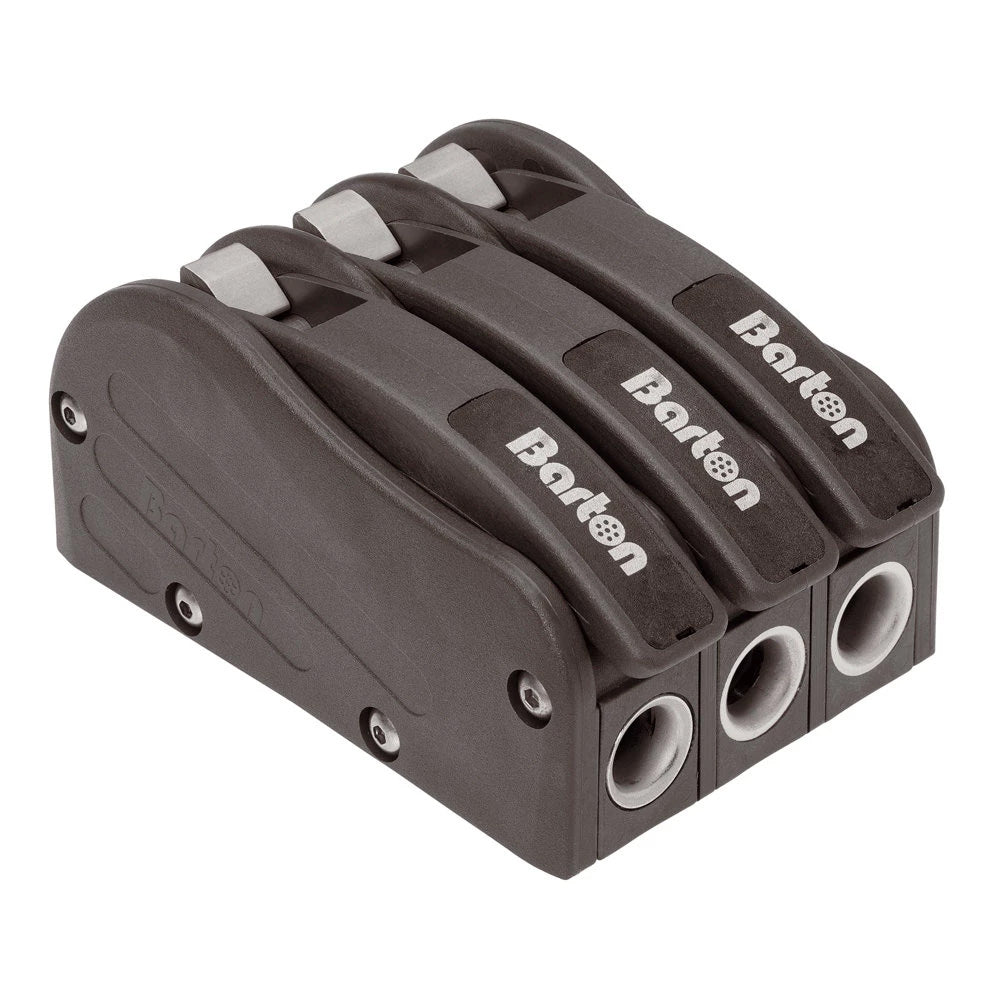

Barton Triple DO 550 Rope Clutch

Adjust yacht lines while the clutch remains closed with the Barton Marine Triple DO 550 Rope Clutch. Its mechanism permits line adjustment with minimal slippage and provides low-effort release under load, while the handle remains easy to operate with cold, wet hands.

Key features

• The clutch mechanism lets you adjust lines through the locked unit with minimal slip.
• A grippable handle and positive closed-position lock support controlled operation.
• Specially tempered teeth on the cam and base combine rope grip with reduced line wear.
• Stainless steel fairleads at both ends help protect the rope and clutch from wear.
• Bolted construction allows access for servicing and replacing components.
• Lightweight, impact-resistant molded parts and anodized aluminum components suit marine use.

Specifications

• Model: DO 550
• Configuration: Triple rope clutch
• Molded parts: High-grade plastic
• Cams and bases: Anodized marine-grade aluminum
• Entry and exit fairleads: Stainless steel
• Construction: Bolt-together
• Handle insert: Removable
• Recommended position: Approximately 1 ft / 300 mm forward of the winch
• Fastening method: Bolt-through with suitable sealant

Good to know

Align the rope straight through the clutch in both horizontal and vertical directions; a poor lead can wear the side plates or reduce load capability. Barton deck organisers can be positioned ahead of the clutch to establish alignment. The packaging includes a drilling template. Replacement components are available, and handle inserts are sold separately.
