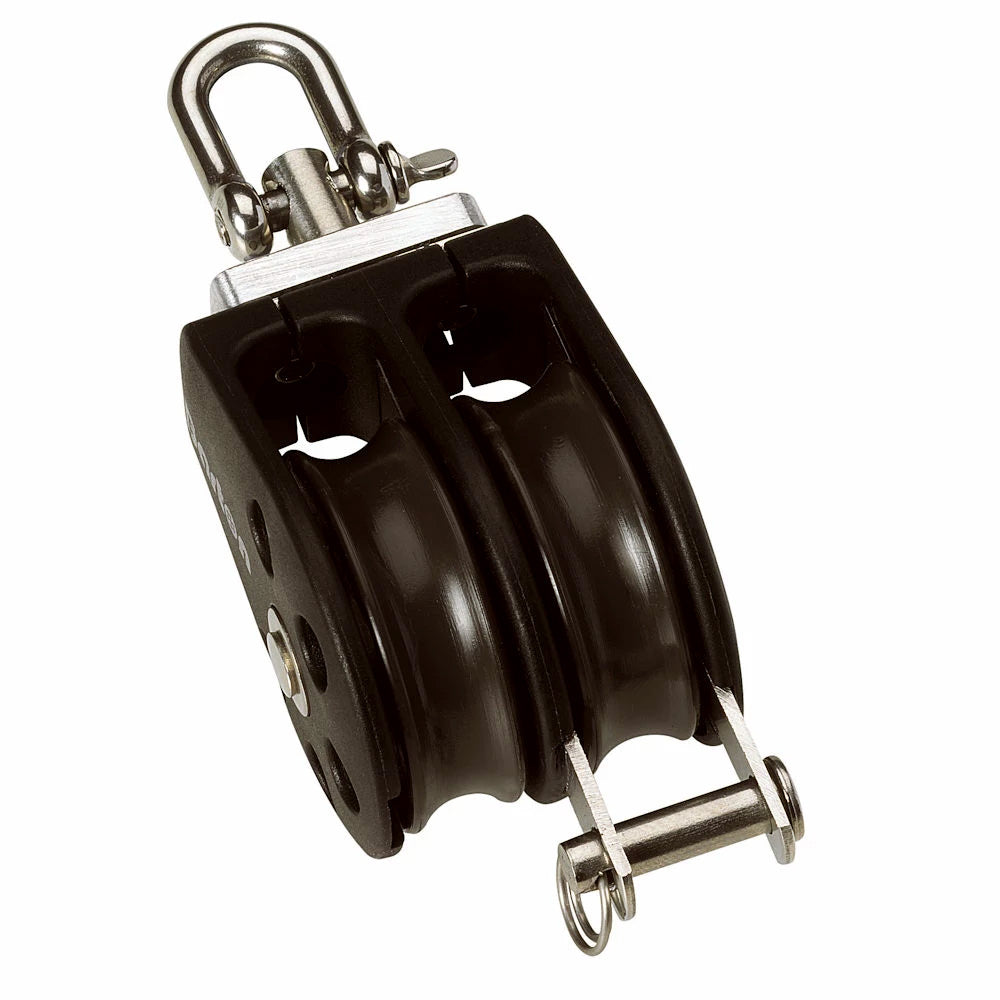

Barton Size 5 54mm Plain Bearing Pulley Block Double Swivel & Becket
Barton Size 5 54mm Plain Bearing Pulley Block Double Swivel & Becket
SKU:OM-BARTONMARINE-SIZE554MM-N05231
Low stock: 1 left
Couldn't load pickup availability
Overview
Equip a larger cruising or racing yacht with the swivel-and-becket version of Barton Marine's Size 5 double pulley block. Two 54mm plain-bearing sheaves accommodate rope up to 12mm, while reinforced side plates and stainless steel load-carrying parts provide structural strength.
Key features
- Moulded side plates use both through-bolts and rivets for a secure assembly.
- A marine-grade 316 stainless steel frame and load-carrying components strengthen the load-bearing structure.
- The block works with Barton Marine's ball bearing mainsheet traveller system for compatible installations.
Specifications
- Size: 5
- Configuration: Double sheave, swivel and becket
- Bearing type: Plain
- Internal frame and load-carrying components: Marine-grade 316 stainless steel
- Side plates: Moulded, through-bolted and riveted
- Sheave dimensions: 54mm × 17mm (2 1/8" × 5/8")
- Maximum rope diameter: 12mm (7/16")
- Dimensions: 155 × 59 × 58mm
- Weight: 312g
- Safe working load: 750kg (1650lbs)
- Break load: 1500kg (3300lbs)
Specifications
| Brand | Barton Marine |
|---|---|
| Manufacturer part # | N05231 |
| UPC | 5035088081578 |
| Boxed dimensions | 7 x 3 x 2 in |
| Shipping weight | 0.7 lb |
| Country of origin | BULGARIA |
