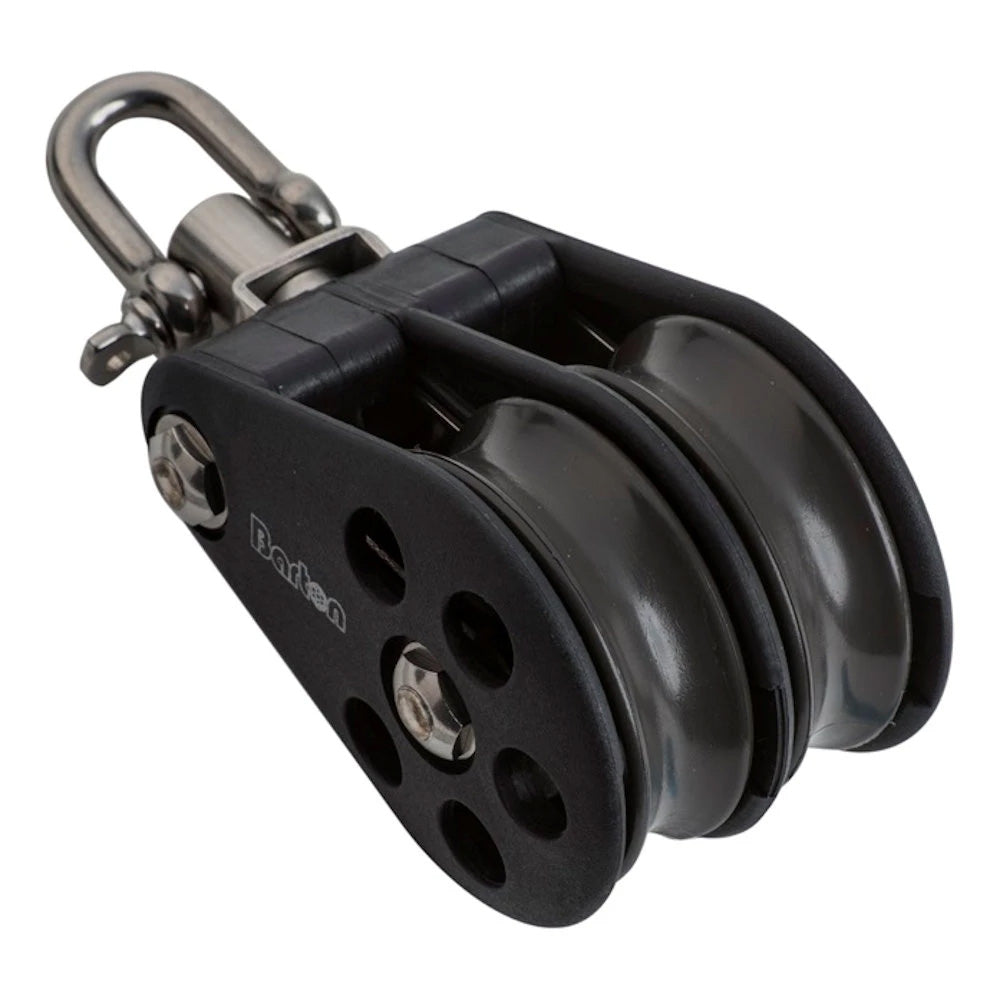

Barton Size 5 54mm Plain Bearing Pulley Block Double Block & Swivel
Barton Size 5 54mm Plain Bearing Pulley Block Double Block & Swivel
SKU:OM-BARTONMARINE-SIZE554MM-N05230
Low stock: 1 left
Couldn't load pickup availability
Overview
For line handling aboard larger cruising and racing yachts, the Barton Marine Size 5 double pulley block pairs 54mm plain-bearing sheaves with a swivel. It accepts rope up to 12mm and uses a marine-grade 316 stainless steel internal frame and load-carrying components.
Key features
- Through-bolted and riveted moulded side plates reinforce the block's construction.
- Marine-grade 316 stainless steel supports the load through the internal frame and load-carrying parts.
- Compatibility with Barton Marine's ball bearing mainsheet traveller system provides an option for that setup.
Specifications
- Size: 5
- Configuration: Double sheave with swivel
- Bearing type: Plain
- Internal frame and load-carrying components: Marine-grade 316 stainless steel
- Side plates: Moulded, through-bolted and riveted
- Sheave dimensions: 54mm × 17mm (2 1/8" × 5/8")
- Maximum rope diameter: 12mm (7/16")
- Dimensions: 130 × 59 × 58mm
- Weight: 290g
- Safe working load: 750kg (1650lbs)
- Break load: 1500kg (3300lbs)
Specifications
| Brand | Barton Marine |
|---|---|
| Manufacturer part # | N05230 |
| UPC | 5035088084845 |
| Boxed dimensions | 6 x 3 x 2 in |
| Shipping weight | 0.65 lb |
| Country of origin | UNITED KINGDOM |
