• Barton Size 1 30mm Plain Bearing Pulley Block Single Swivel & Becket
1 1

Barton Marine

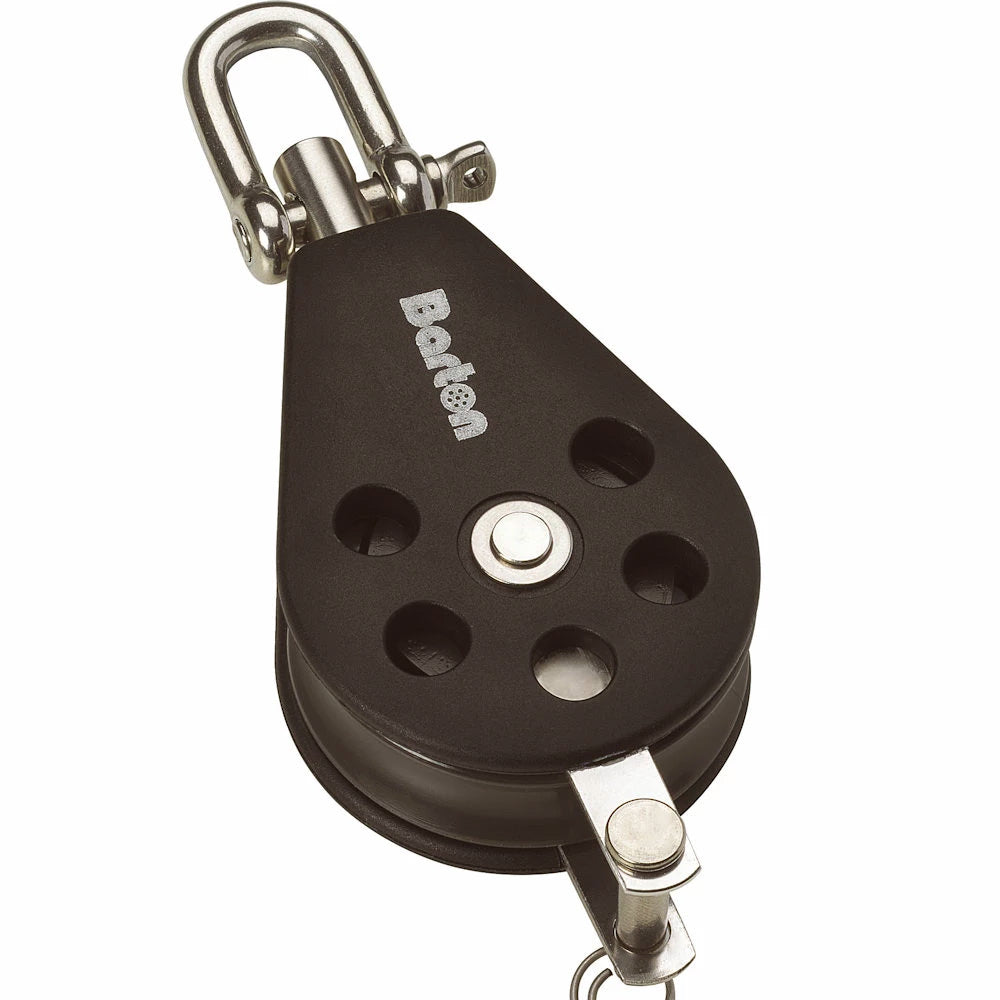

Barton Size 1 30mm Plain Bearing Pulley Block Single Swivel & Becket

Barton Size 1 30mm Plain Bearing Pulley Block Single Swivel & Becket

OM-BARTONMARINE-SIZE130MM-N01131

$31.61
$31.61
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Route sailing lines with the Barton Marine Size 1 single pulley block, fitted with a swivel and becket. Its 30 mm plain-bearing sheave accepts rope up to 8 mm, giving boat owners a lightweight block for a variety of onboard line-handling tasks.

Key features

  • An internal steel frame reinforces the block for strength and durability.
  • The lightweight construction limits the weight added to your rigging.
  • A single sheave accommodates rope up to 8 mm in diameter.
  • The swivel-and-becket configuration provides another rigging option within the Size 1 range.

Specifications

  • Size: 1
  • Configuration: Single swivel and becket
  • Bearing type: Plain
  • Internal frame material: Steel
  • Sheave dimensions: 30 mm x 12 mm (1 3/16 in. x 15/32 in.)
  • Maximum rope diameter: 8 mm (5/16 in.)
  • Overall dimensions: 85 x 32 x 25 mm
  • Weight: 51 g
  • Safe working load: 355 kg (782 lb.)
  • Breaking load: 710 kg (1565 lb.)

Specifications

BrandBarton Marine
Manufacturer part #N01131
UPC5035088080243
Boxed dimensions5 x 2 x 1 in
Shipping weight0.1 lb
Country of originBULGARIA
