Barton Marine SkyDock Storage System 4 to 1 Reduction Up to 175 LBS 4-Point Lift

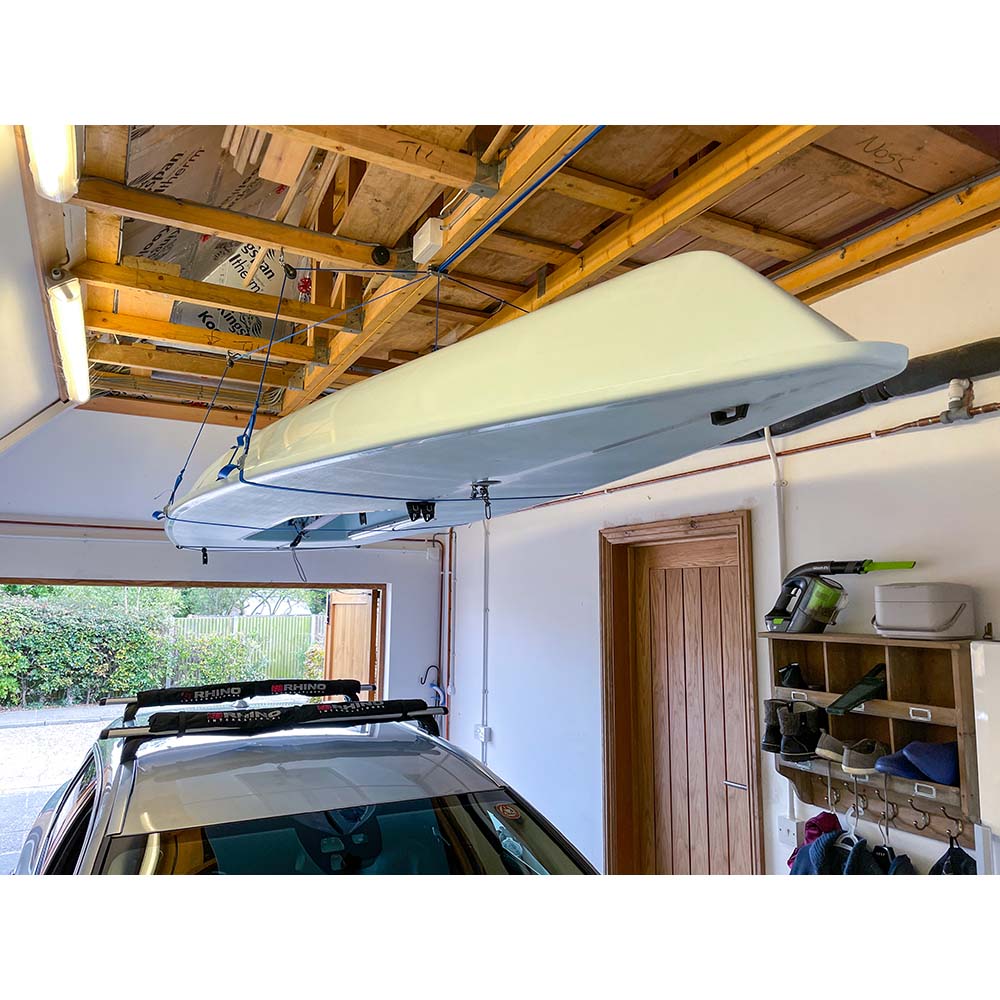

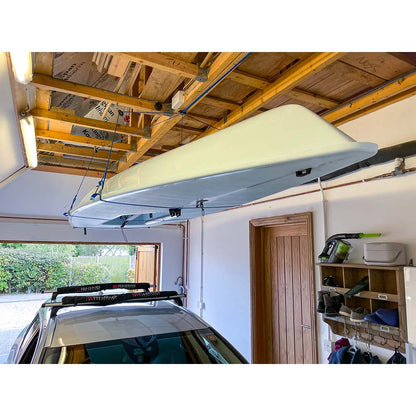

The Barton Marine SkyDock Storage System is a ceiling-mounted lift kit for storing bulky gear above the floor. It uses a 4:1 reduction and a 4-point lift to raise loads such as dinghies, kayaks, canoes, paddleboards, bicycles, roof boxes, camping equipment, and other stored items.

• Mechanical advantage: 4:1
• Lift points: 4-point lift
• Maximum lift capacity: 175 lbs (80 KG)
• Maximum lift height: 13 feet (4 M)
• Use areas: Garages, sheds, barns, lofts, yards, marinas, yacht clubs, and warehouses
• Operation: Designed so one person can raise the load
• Load control: Self-locking block holds the load if the control line is released
• Line security: Fixed wall cleat supplied for tying off the line

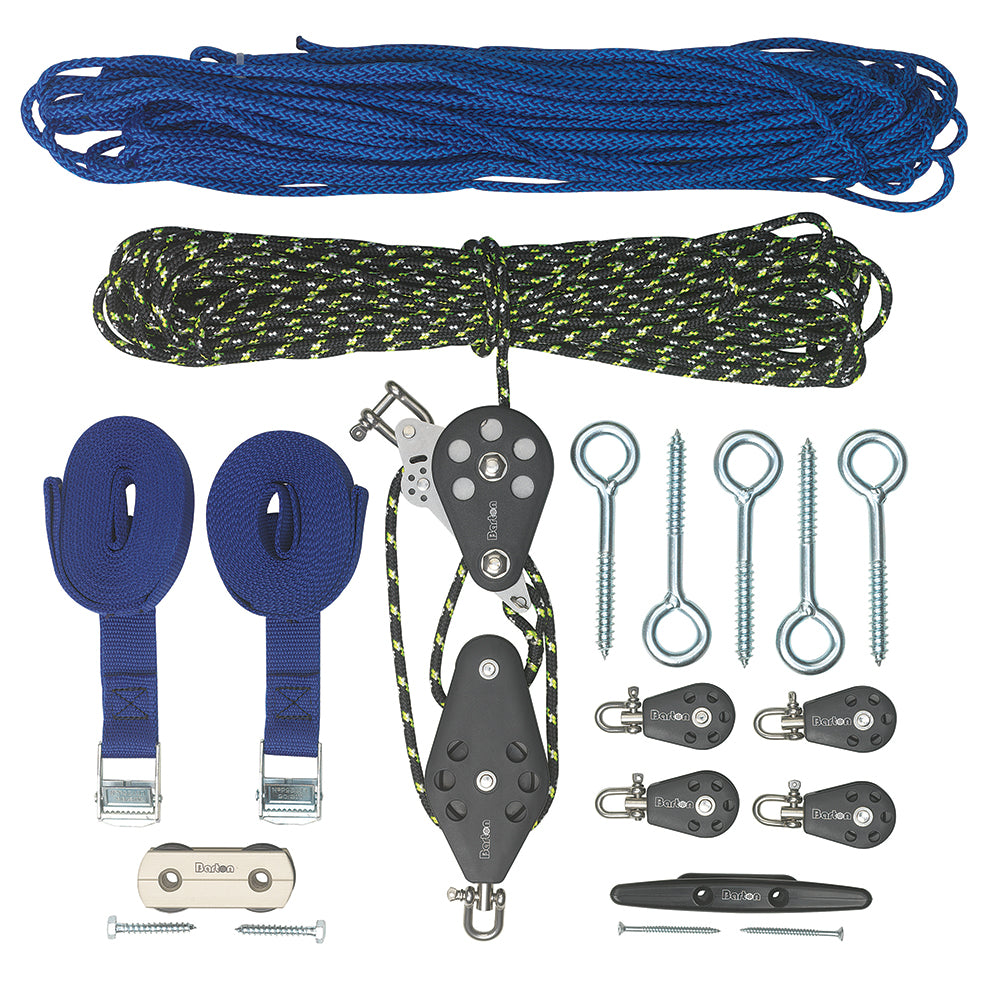

• Included: Black control line with SkyLock block and fiddle block, 5 eye bolts, 4 pulley blocks with shackles, blue lifting line, 2 blue lifting straps, rope organizer with 2 bolts, horn cleat with 2 screws, and instruction manual
• Package: Sold as an individual kit
