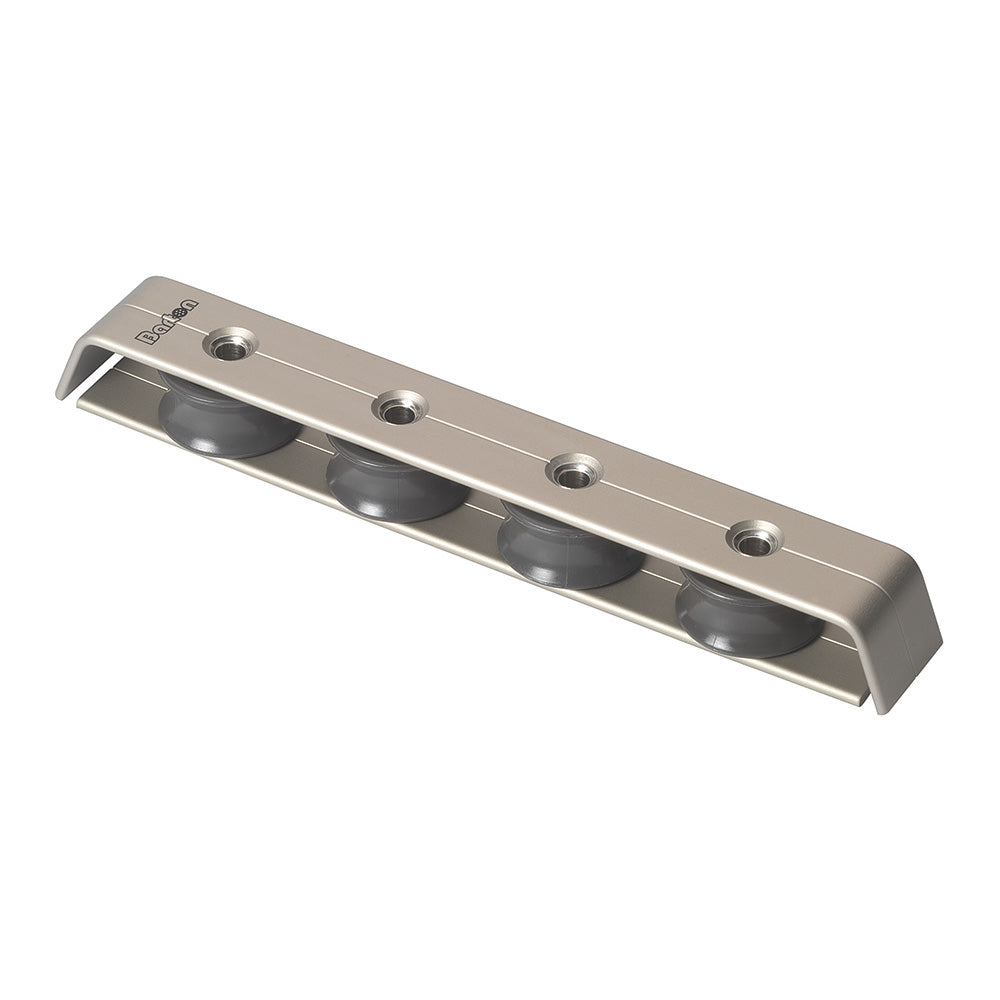

Barton Marine Size 1 Deck Organizer - 4 Sheave

Lead halyards and mast-base control lines back to the cockpit with the Barton Marine Size 1 four-sheave deck organizer. It lets sailors manage those lines from the cockpit and is suitable for boats up to 32 feet.

Key features

• Four sheaves guide control lines as they change direction toward the cockpit.
• Cockpit-led lines allow the crew to handle sailing controls from that position.
• Double-stacking is possible when arranging your deck layout.
• Acetal sheaves provide the line-guiding surfaces within a Spectro anodized aluminum organizer.

Specifications

• Size: 1
• Sheave count: 4
• Material: Spectro anodized aluminum
• Dimensions, L × W × H: 7.87 × 1.1 × 1 inches (200 × 28 × 25mm)
• Weight: 7.05 oz (200g)
• Sheave material: Molded acetal
• Sheave diameter: 1.26 inches (32mm)
• Sheave width: 0.67 inches (17mm)
• Maximum boat length: 32 feet (9.75m)
• Stated halyard size suitability: Up to 7/16 inch
• Maximum line diameter: 0.47 inch (12mm)

Good to know

Sold individually. The source lists halyard suitability up to 7/16 inch separately from its maximum line diameter of 12mm; consider both figures when checking your line setup.
