Barton Marine

Barton Marine Laser Replica 15:1 Boom Vang Assembly

Barton Marine Laser Replica 15:1 Boom Vang Assembly

SKU:OM-BARTONMARINE-LASERREPLICA15-98075

Regular price $234.75
Regular price $260.83 Sale price $234.75
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left

Quantity
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

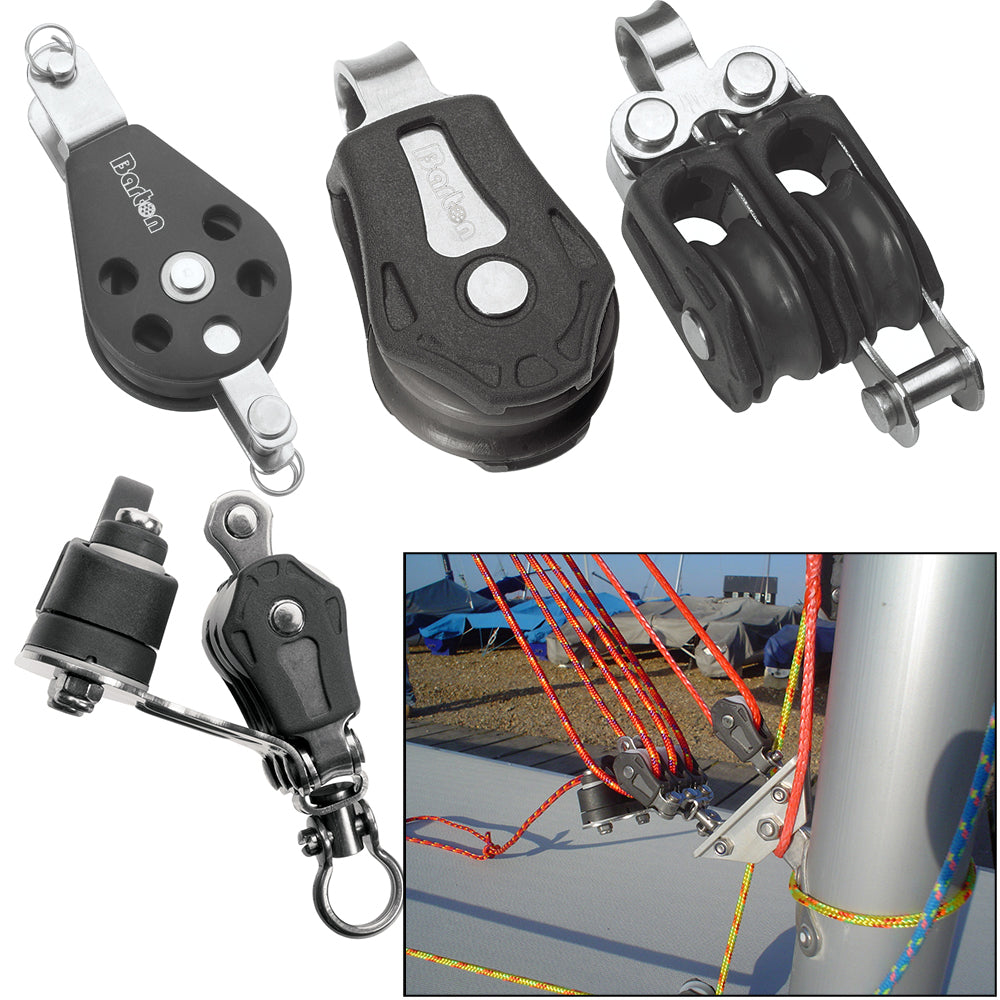

Set up boom vang control on a Laser class sailboat with this Barton Marine replica assembly. The base plate and swivelling triple cam block work together to provide a 15:1 purchase, with blocks and control lines supplied for the system.

Key features

  • 15:1 purchase provides mechanical advantage for vang adjustment.
  • Swivelling triple cam block forms part of the control arrangement on the base plate.
  • Supplied fixing bolts and shackled base-plate blocks support straightforward fitting.
  • Primary and secondary control lines are included for the vang setup.
  • A curved kicker key is supplied with the boom tang block for the boom connection.

Specifications

  • Compatibility: Laser class sailboats
  • Purchase ratio: 15:1
  • Base plate: Spectro anodised aluminium
  • Base plate fixing bolts: 3
  • Primary line: Dyneema, 1.2 m / 3 feet 11 inches long, 4 mm / 5/32 inch diameter
  • Secondary line: 3 m / 9 feet 11 inches long, 4 mm / 5/32 inch diameter
  • Control line color: Red

Good to know

The assembly includes the Barton base plate; a 00 931 Series 0 triple swivel cam block and 00 110 Series 0 single fixed eye block, each attached to the plate by shackle; a 00 211 Series 0 double block with becket; and a 01 091 Series 1 single tang block with becket and curved kicker key for the boom. Primary and secondary control lines are also included. Sold as one assembly.

Specifications

BrandBarton Marine
Manufacturer part #98075
UPC5035088980758
Boxed dimensions8 x 6 x 2 in
Shipping weight0.9 lb
Country of originUNITED KINGDOM
