Barton Marine

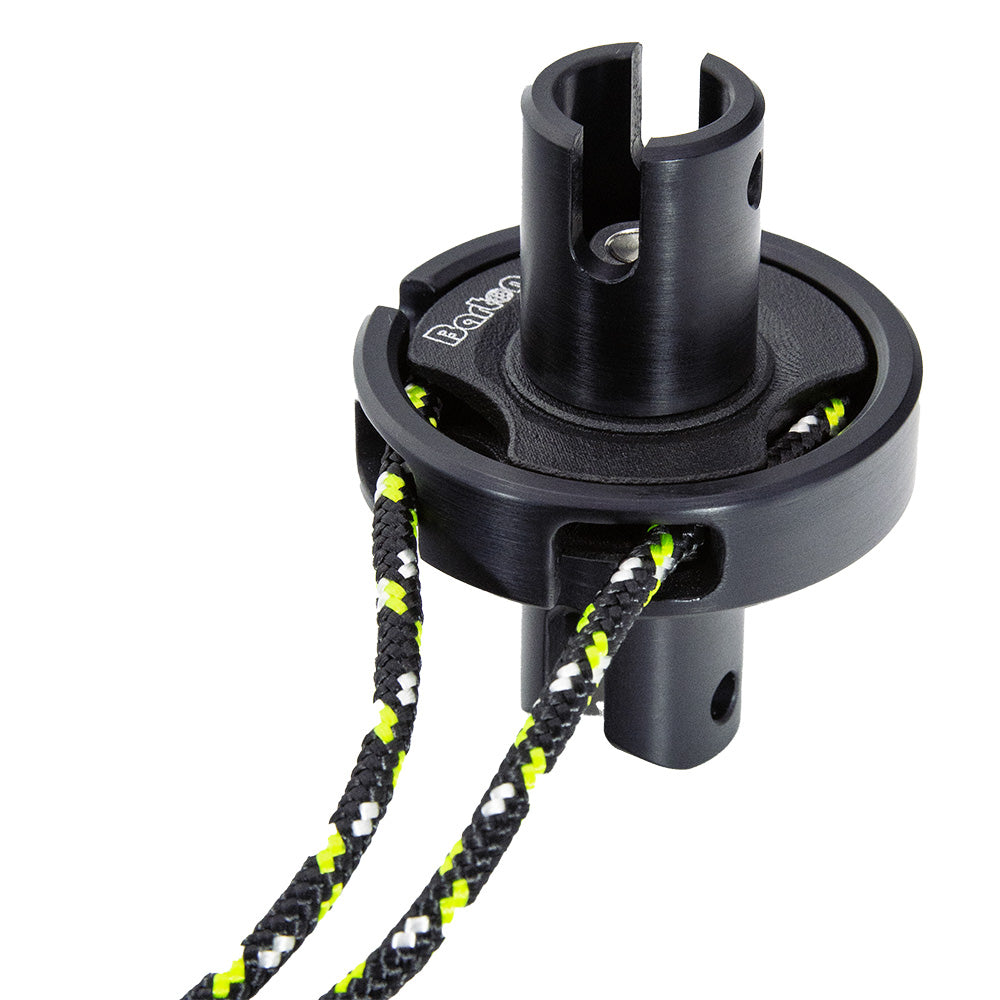

Barton Continuous Line Furler
Barton Continuous Line Furler
SKU:OM-BARTONMARINE-CONTINUOUSLINE-42340
Low stock: 1 left
Couldn't load pickup availability
Overview
Manage sail furling with the Barton Marine Continuous Line Furler, suitable for sail areas up to 12 square metres. Its HBT1 hybrid bearings help the wheel stay balanced and turn freely under load, while the integrated fairlead allows tool-free line insertion.
Key features
- Solid-state and Torlon ball bearings work together to keep the furling wheel turning freely under load.
- The 3D-printed tri-rotor wheel grips the furling line to help transfer its movement to the furler.
- Tool-free rope insertion avoids loose parts that could be lost on deck.
- A 175g weight keeps the furler light while providing a 600kg working load limit.
- Accepts furling lines from 4mm to 6mm, giving sailors a stated range for line selection.
Specifications
- Brand: Barton Marine
- Type: Continuous line furler
- Bearing system: HBT1 hybrid with solid-state and Torlon ball bearings
- Central shaft: 316 stainless steel
- Chassis and fork: Anodized 6061 aluminum
- Weight: 175g
- Furling line diameter: 4–6mm
- Overall length: 90mm
- Pin-to-pin length: 65mm
- Pin diameter: 6mm
- Maximum sail area: 12m² / 130ft²
- Breaking load: 1200kg
- Working load limit: 600kg
- Drum diameter: 50mm
- Overall diameter: 68mm
Specifications
| Brand | Barton Marine |
|---|---|
| Manufacturer part # | 42340 |
| UPC | 5035088423408 |
| Boxed dimensions | 5 x 5 x 3 in |
| Shipping weight | 0.04 lb |
| Country of origin | UNITED KINGDOM |
