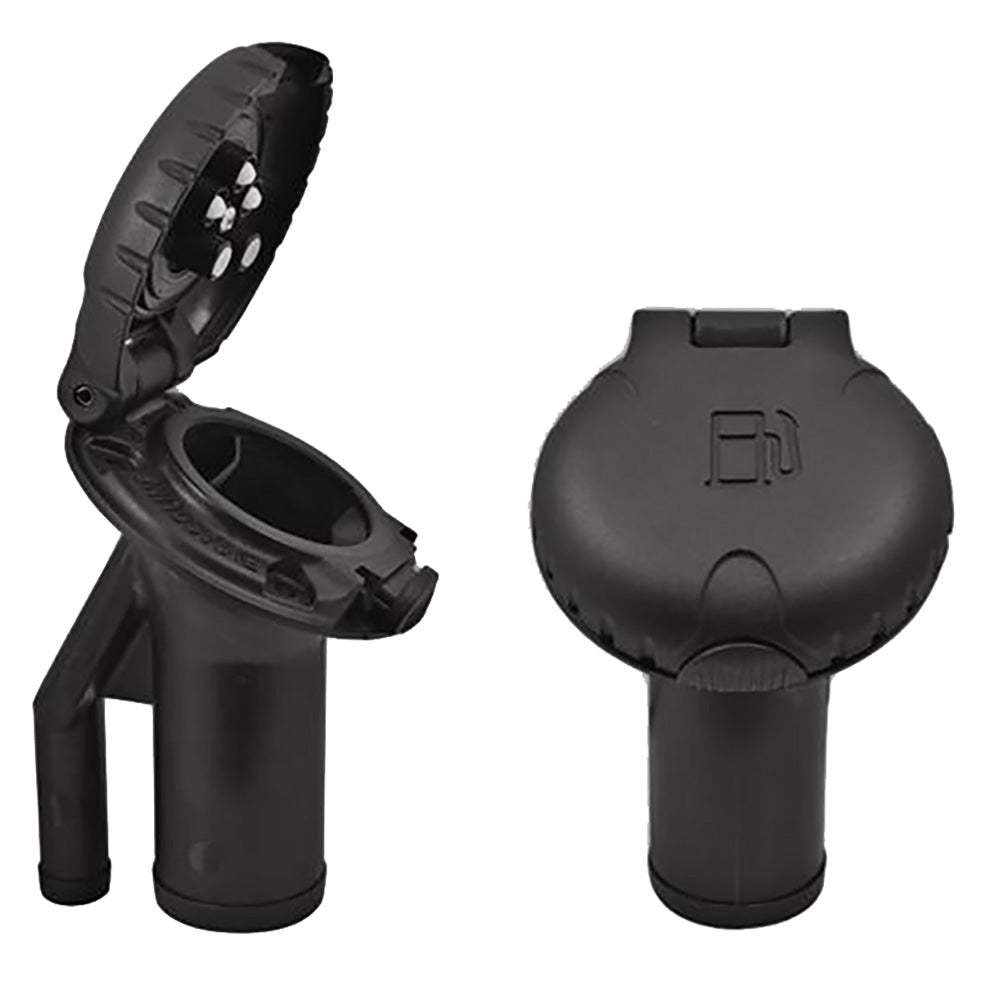

Attwood Deck Fill f/Pressure Relief Systems - Angled Body & Scalloped Black Plastic Cap

For boats using a pressure relief fuel system, this Attwood Marine deck fill combines an angled body with a scalloped black plastic cap. Cap-mounted valves manage diurnal emissions and excess pressure, while vacuum valves admit air as the engine uses fuel.

Key features

• Cap-mounted relief valves release pressure above 1 psi.
• Three high-flow vacuum valves supply replacement air to the tank, including in high-horsepower applications.
• Automatic nozzle shutoff supports refueling at flow rates from 4 to 18 gpm.
• A design tested to prevent water entry helps keep water out of the fuel system.
• The hinged cap provides an audible click and meets EPA requirements.
• Compatibility with Jerry Cans and marine nozzles accommodates both refueling methods.

Specifications

• Body configuration: Angled
• Cap: Scalloped black plastic, hinged
• Finish: Black composite
• Fill hose size: 1-1/2 inches
• Vent hose size: 5/8 inch
• Vacuum valves: Three
• Diurnal emission control and overpressure relief valves: Two, 1 psi
• Automatic nozzle shutoff flow range: 4–18 gpm
• Certification: EPA / CARB
• Nozzle mating and retention standards: CARB 13 CCR 2235 and ISO 13331
• Fuel compatibility: Ethanol-blended fuels

Good to know

This deck fill is a component of VaporTec and SecureStop pressure relief systems. Other system components manage the tank's fill level to prevent spit-back or well-back.
