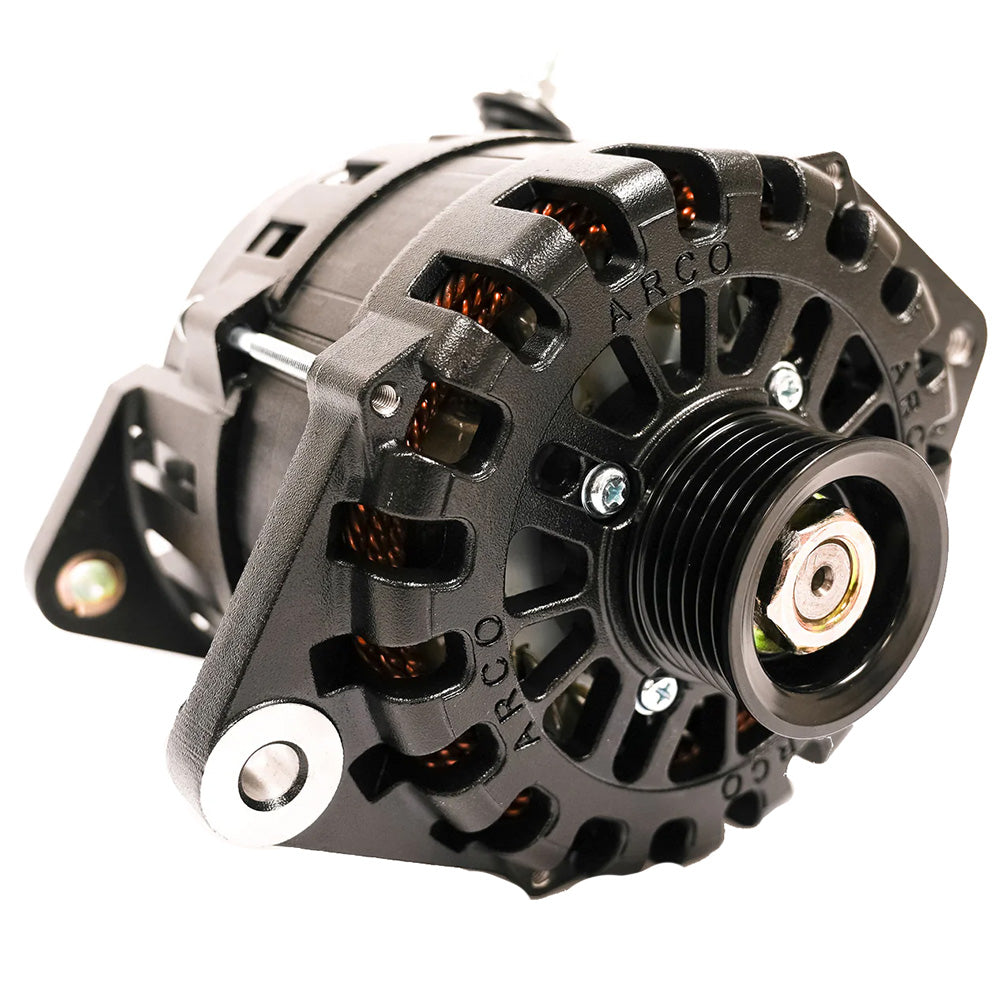

ARCO Marine Zeus A8000-48V 8kW 3.15 Alternator w/Isolated Ground (Common Rail)

ARCO Marine Zeus A8000-48V 8kW 3.15 Alternator w/Isolated Ground (Common Rail)

OM-ARCOMARINE-ZEUSA800048V-4602

$1,577.02
$2,528.90 $1,577.02
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

The ARCO Marine Zeus A8000-48V is an 8kW 48V alternator built for externally regulated charging systems with isolated ground common rail configuration. It is intended for high-demand electrical setups in marine, RV, military, and commercial use where large battery banks need substantial output from engine-driven charging.

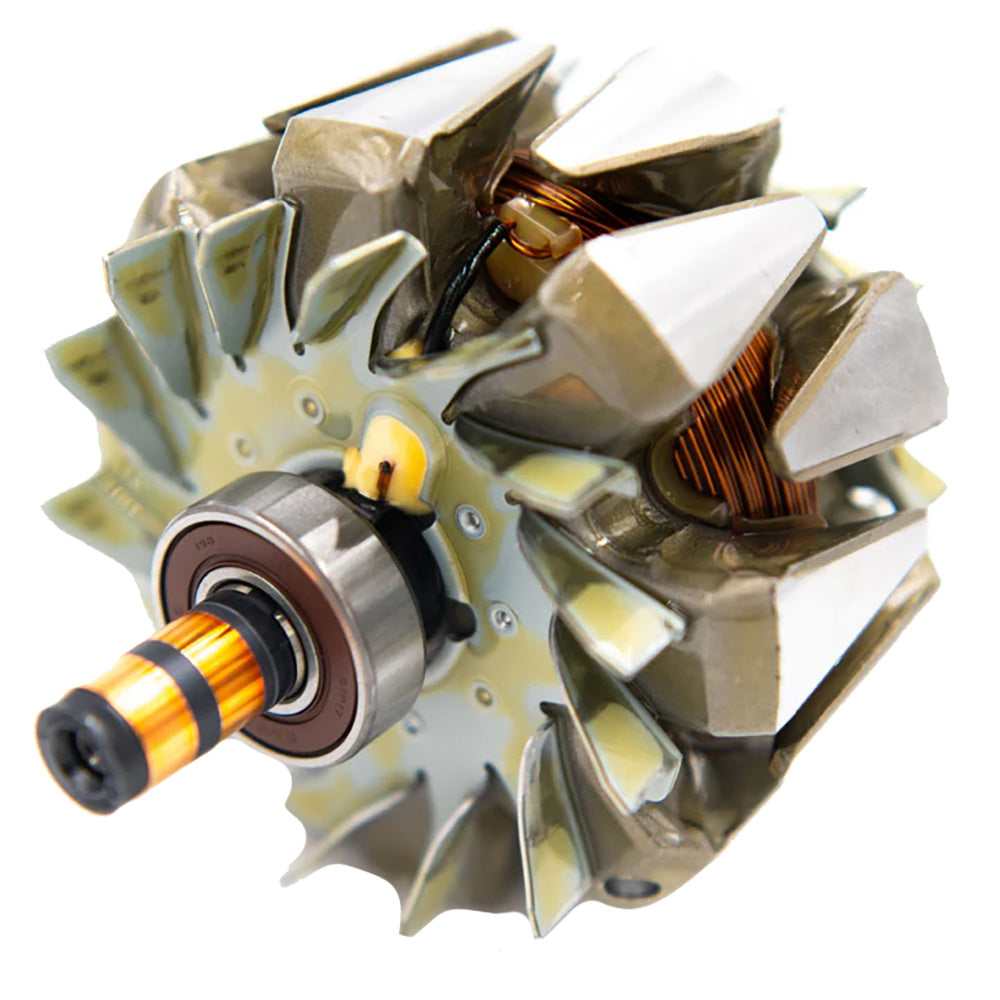

ARCO uses a native 48V rotor and field current design, with cooling-focused construction that includes exterior rectifier placement, dual fans, heat-shedding coatings, and OEM components. For lithium battery charging or maximum performance, use it with the ARCO Zeus Bluetooth Alternator Regulator.

  • Voltage: 48V
  • Rated output: 8kW
  • Field type: P
  • Rotor poles: 16

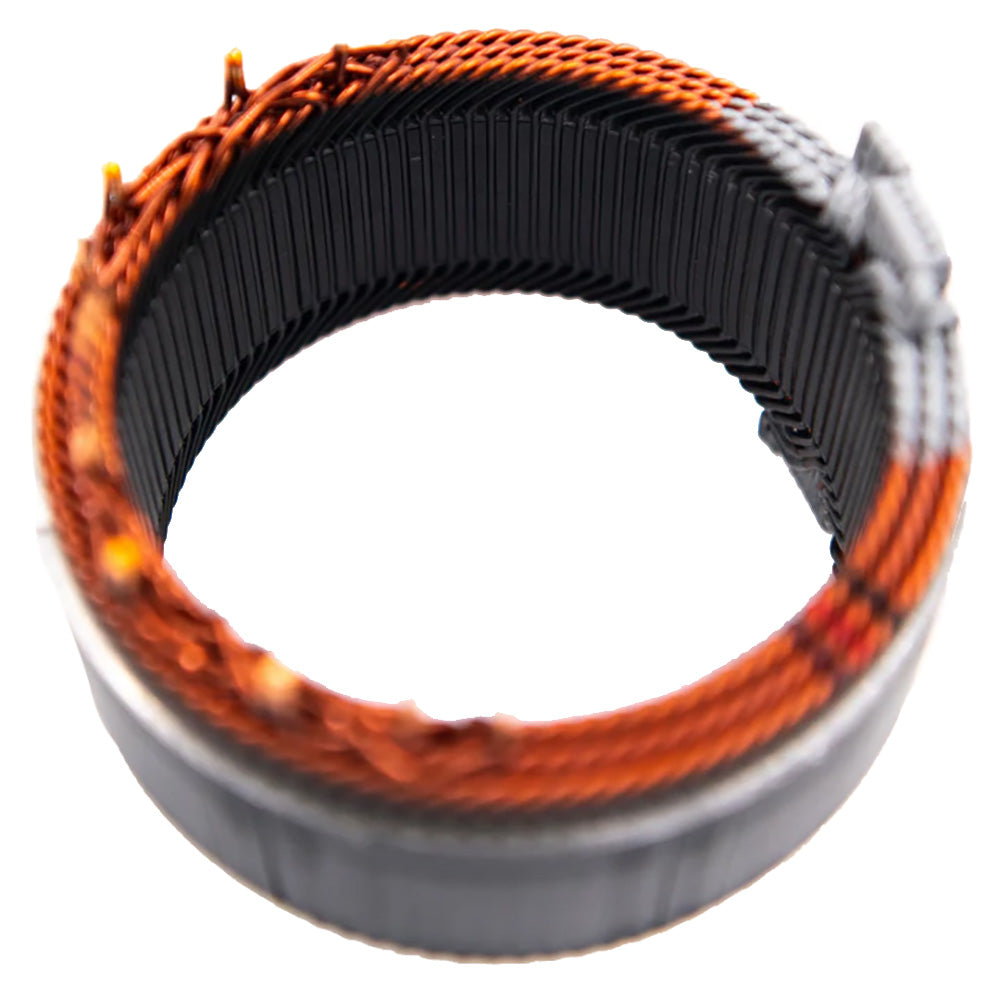

  • Stator size: 138mm
  • Frame size: Large
  • Weight: 15.89 lb / 7.2 kg
  • Regulation: External only
  • Finish: Black E-coating
  • Cut-in speed: 1,920 alternator RPM
  • Maximum speed: 19,000 alternator RPM

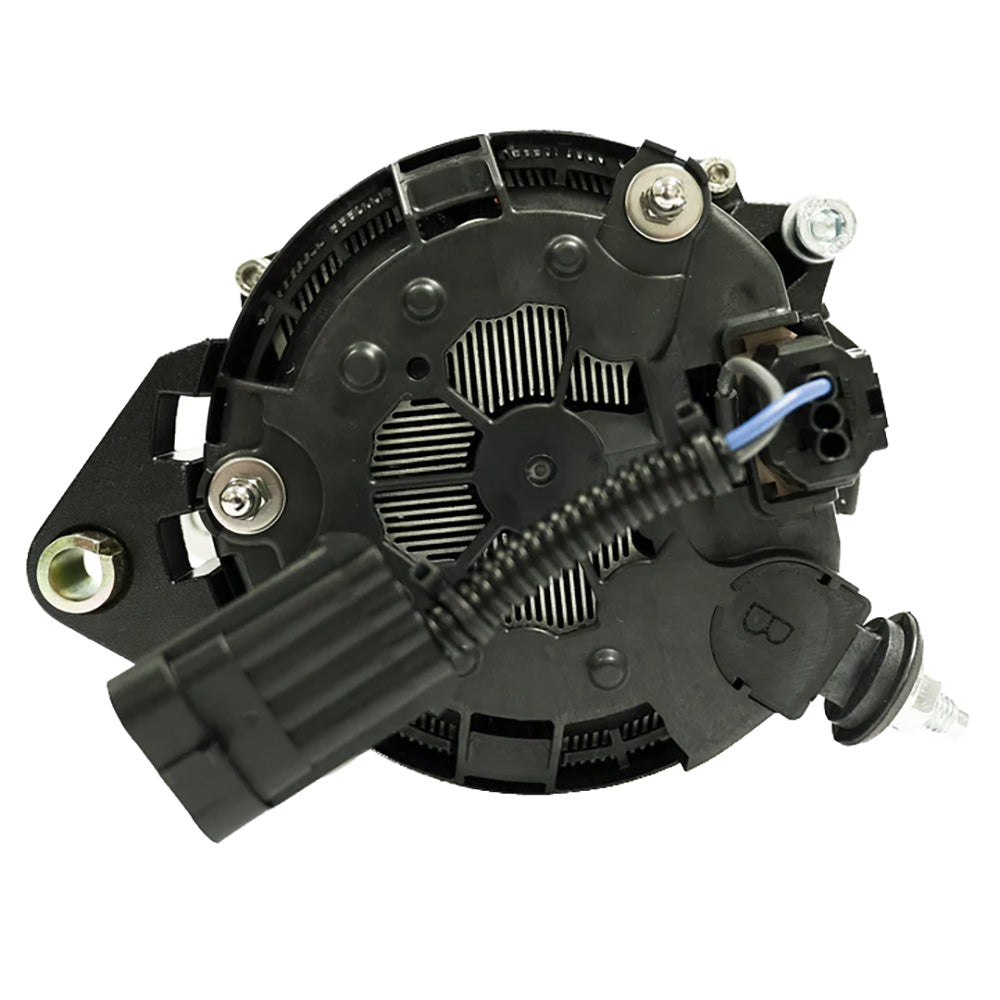

  • Battery post: M8 threaded side-mount post
  • Standard pulley: 49K6, 6-groove, 49mm
  • Pulley mount: 17mm diameter shaft, 25mm long, threaded M17 x 1.5
  • Included pulley hardware: M17 x 1.5 x 24mm nut with 18mm ID x 29mm OD washer
  • Diodes: 6 positive and 6 negative, 80A rated avalanche
  • Output examples: Over 3kW / 55A at 2,500 alternator RPM; almost 6kW / 111A at 4,000 alternator RPM
  • Max output cold: 180A / 9,360W at 53.5V and 9,000 RPM
  • Sustained cruising output hot: 138A / 7,383W at 53.5V and 6,000 RPM
  • Certification: SAE J1171 certified
  • Country of manufacture: Made in the U.S.A.

Specifications

BrandARCO Marine
Manufacturer part #4602
UPC612461748201
Boxed dimensions10 x 10 x 9 in
Shipping weight16.3 lb
