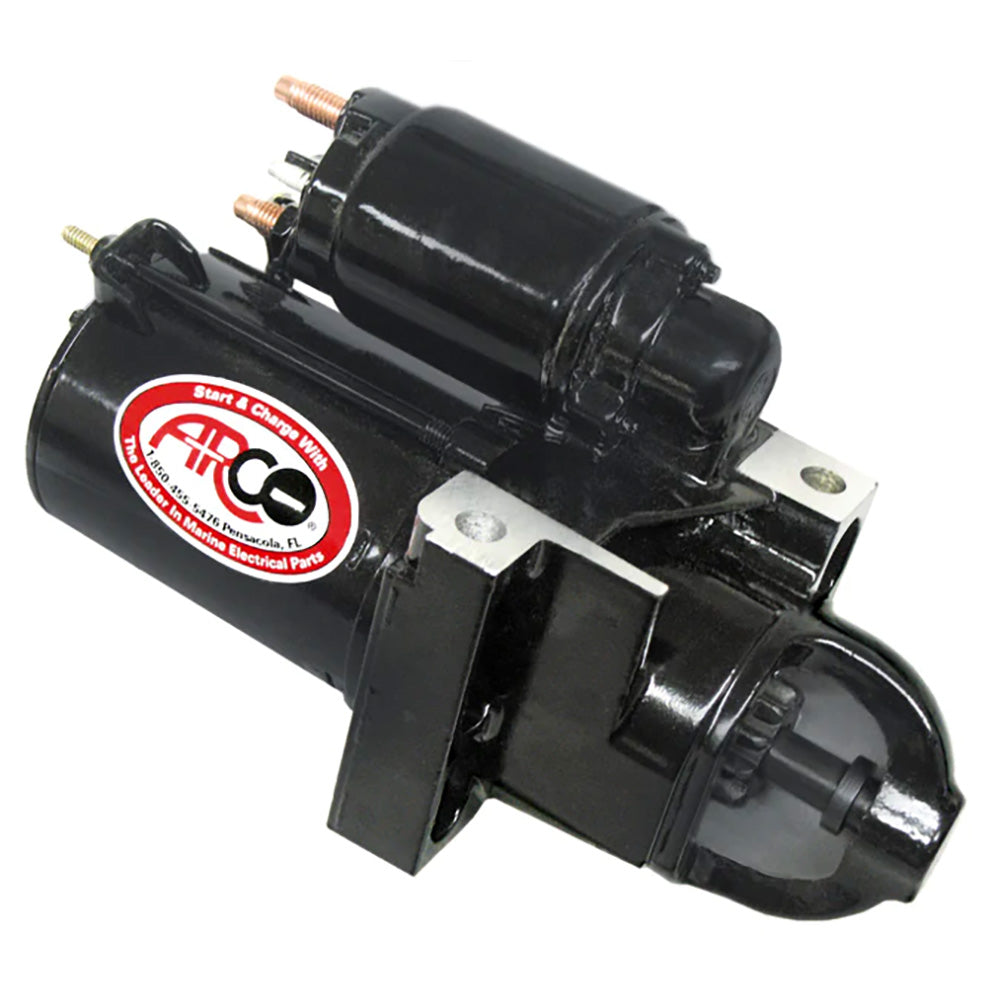

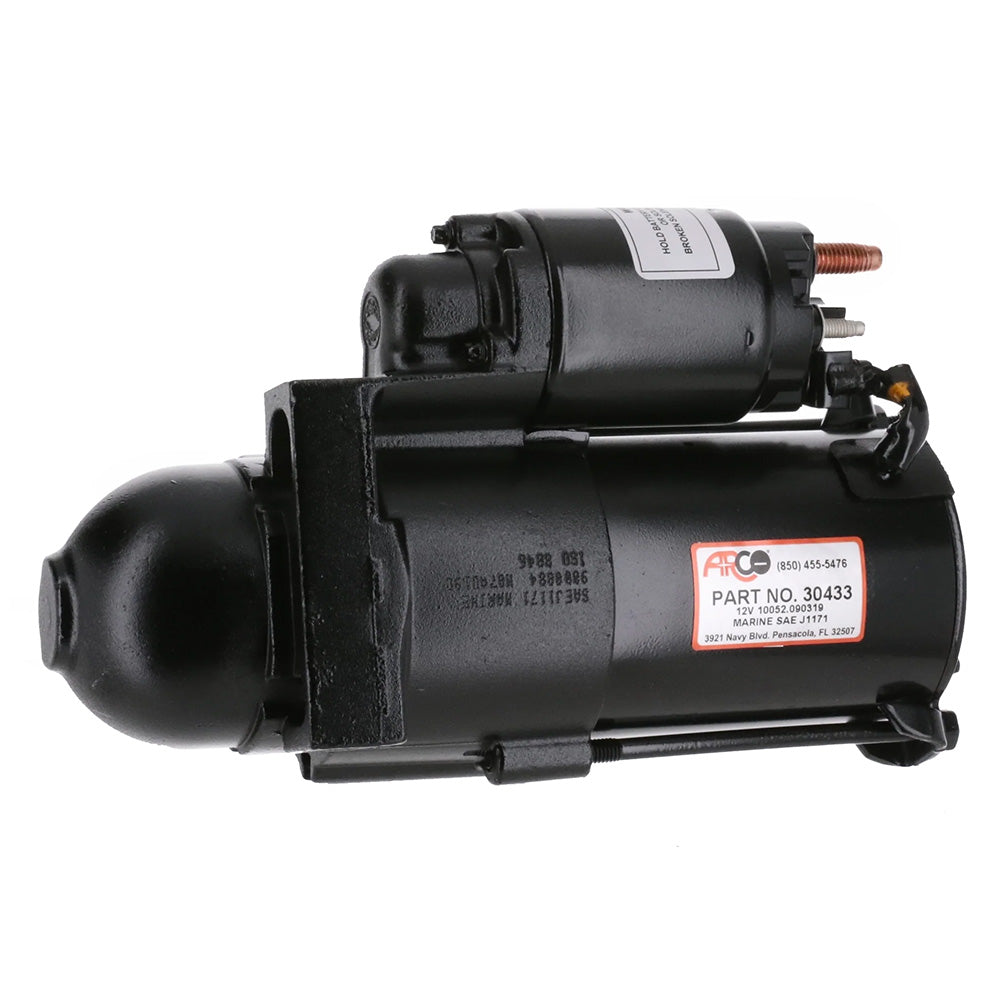

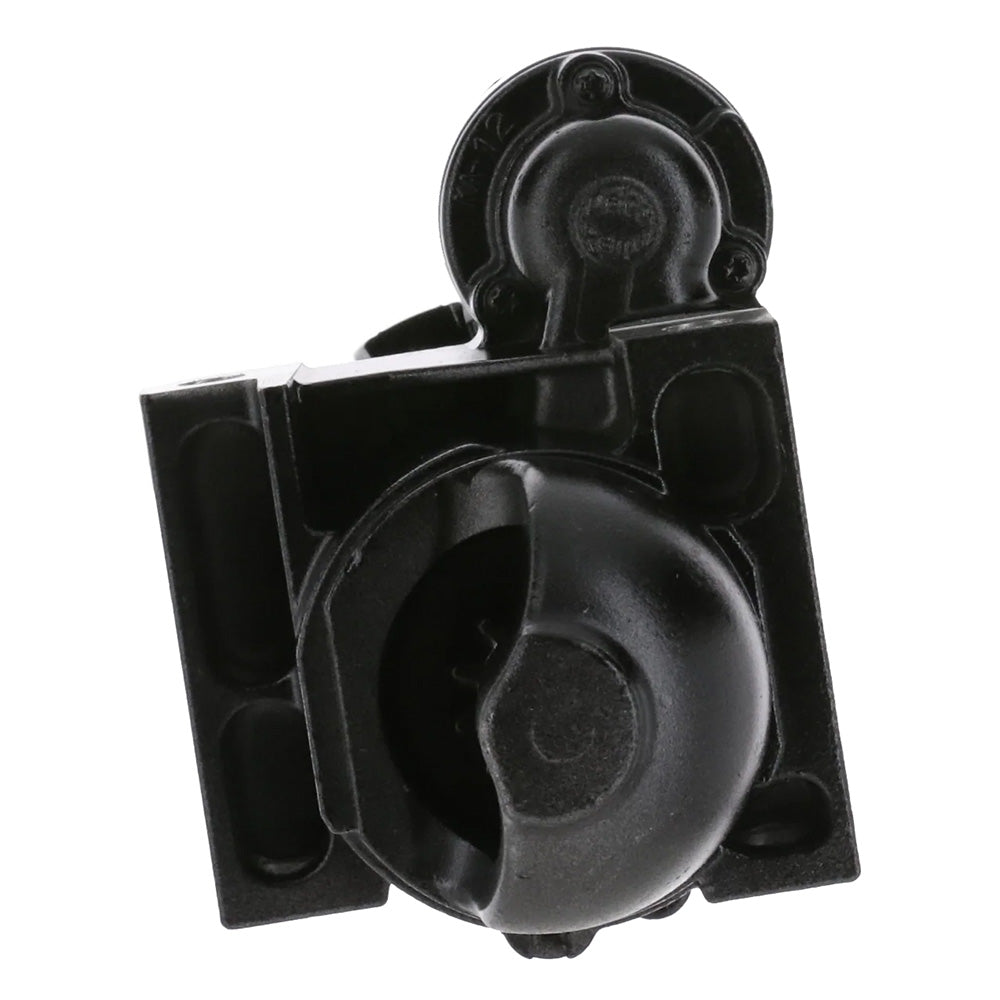

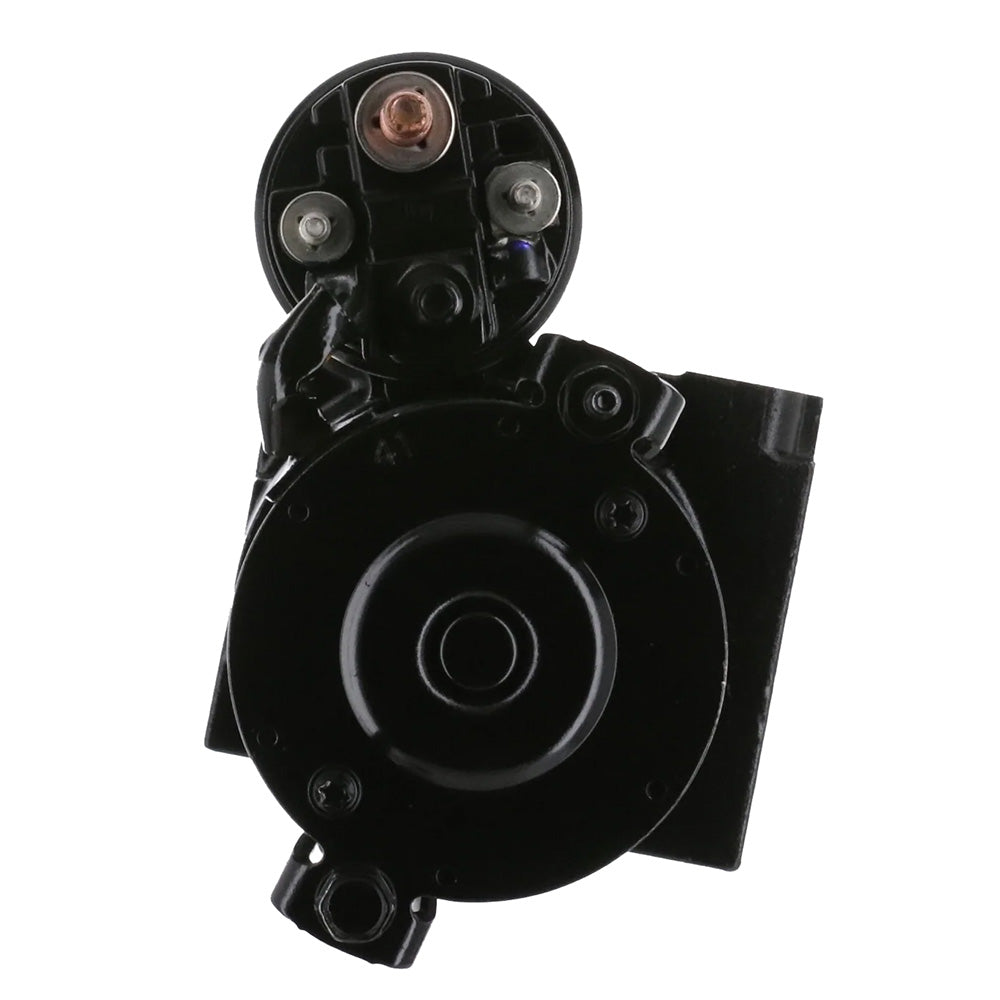

ARCO Marine Standard Duty Inboard Starter w/Gear Reduction

ARCO Marine Standard Duty Inboard Starter with gear reduction is a replacement starter for compatible GM-based inboard engine applications. It is intended for engines using a 14" flywheel with a staggered bolt pattern, including listed Mercruiser, Volvo Penta, OMC, Marine Power and other applications.

Use a fully charged battery and clean electrical connections before installation, as low battery output or corroded connections can reduce starting-circuit amperage and damage the starter or solenoid.

• Type: Standard duty inboard starter with gear reduction
• Voltage: 12 volts
• Fitment: GM engines with 14" flywheel and staggered bolt pattern
• Recommended use: Late model 3.0 Liter with 14" flywheel using a tail bracket
• Replacement note: Can be used in place of a 10MZT style starter with two long bolt staggered patterns
• Mounting note: MBK450 mounting bolt kit required when replacing 10MT
• Construction: Nickel-coated and/or epoxy-painted to help reduce corrosion
• Protection: Sealed design helps minimize water intrusion
• Testing: Dynamically tested and packaged for out-of-the-box performance
• Armature testing: Tested to withstand 50 times operating voltage
• Warranty: 12 months for leisure use and 90 days for commercial or racing applications when properly installed
• Registration: Rotating electric ARCO products can receive an extra year of warranty when registered within 30 days of purchase
• Replaces: BRP/OMC 984456, 986505, 3850525, 3853982, 3854751, 3855177, 3857747, 3860566
• Replaces: Delco 9000735, 9000762, 9000768, 9000789, 9000819, 9000821, 9000839, 9000840, 9000849, 9000885, 9000940, 9000884
• Replaces: Marine Power 0174-000
• Replaces: Mercury 50-12121A2, 50-12177A2, 50-806964A2, 50-806964A3, 50-806964A4, 50-812428A3, 50-812604A2, 50-822330A2, 50-864340A2, 50-8M8021116
