ARCO Marine

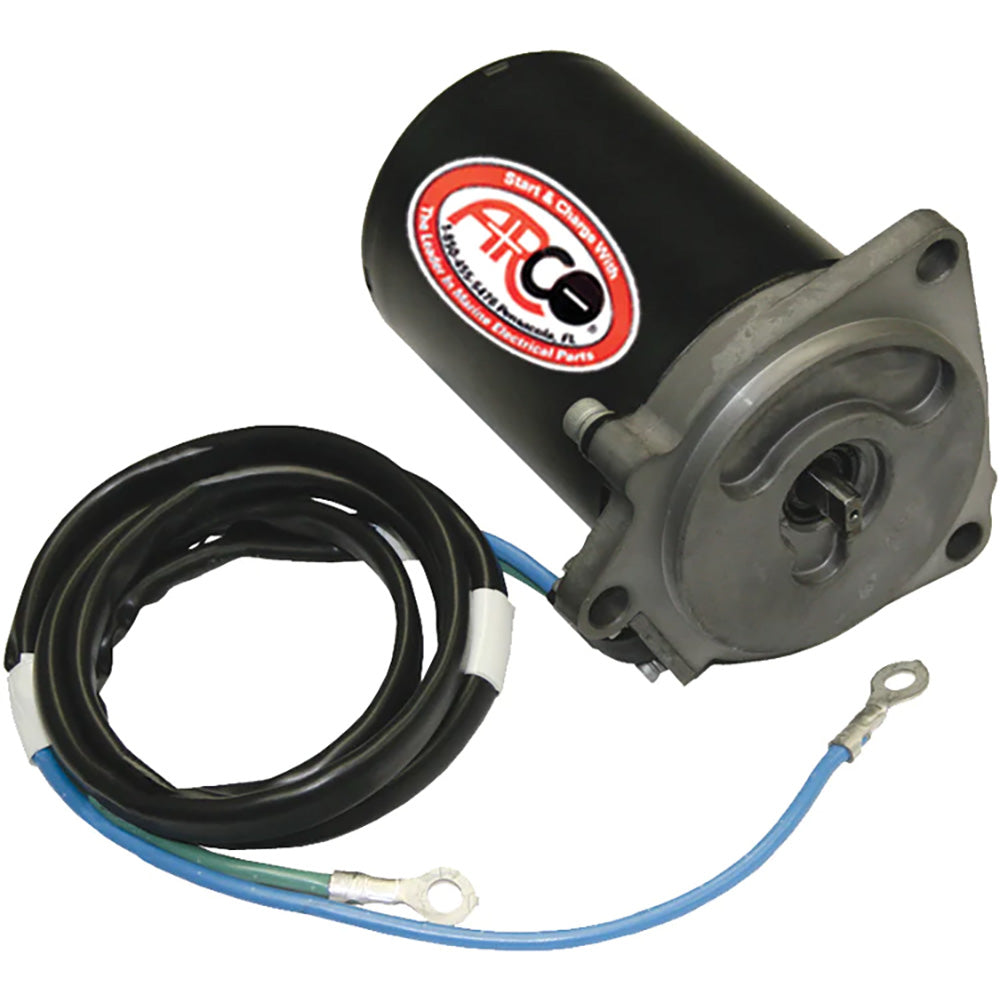

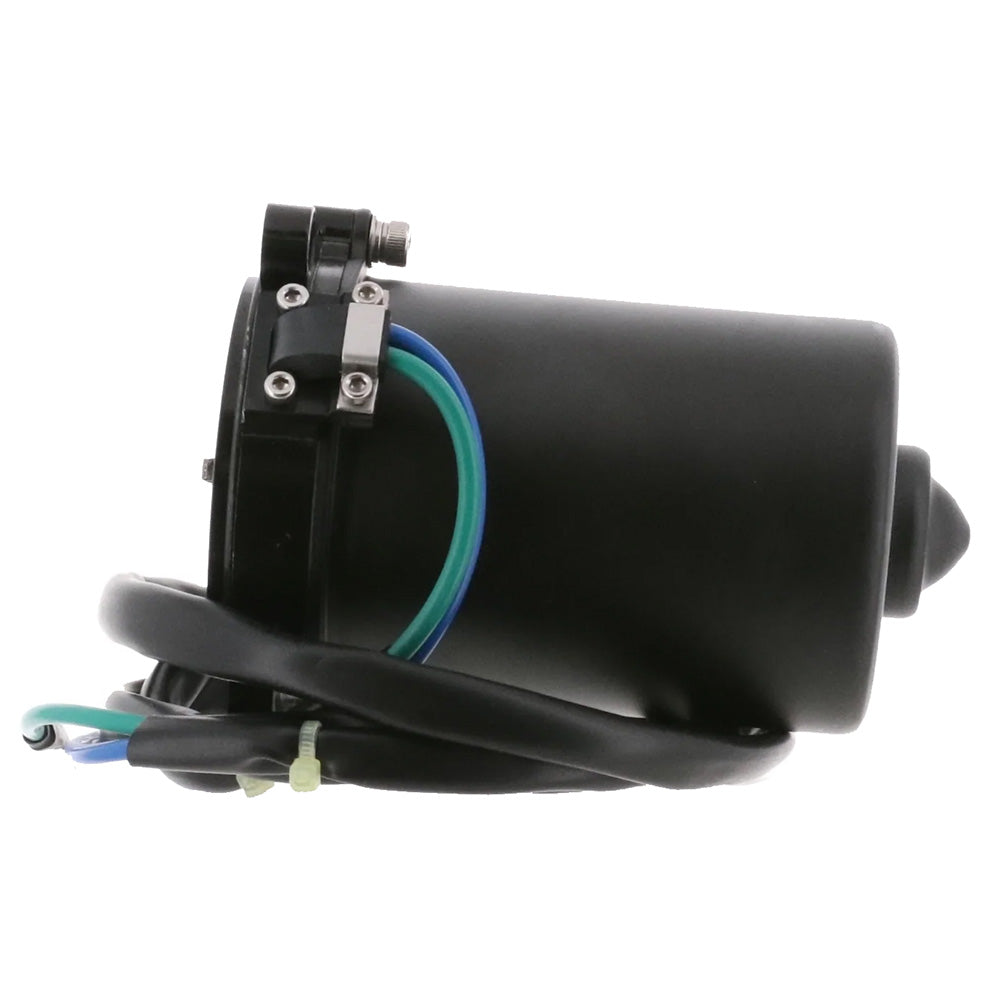

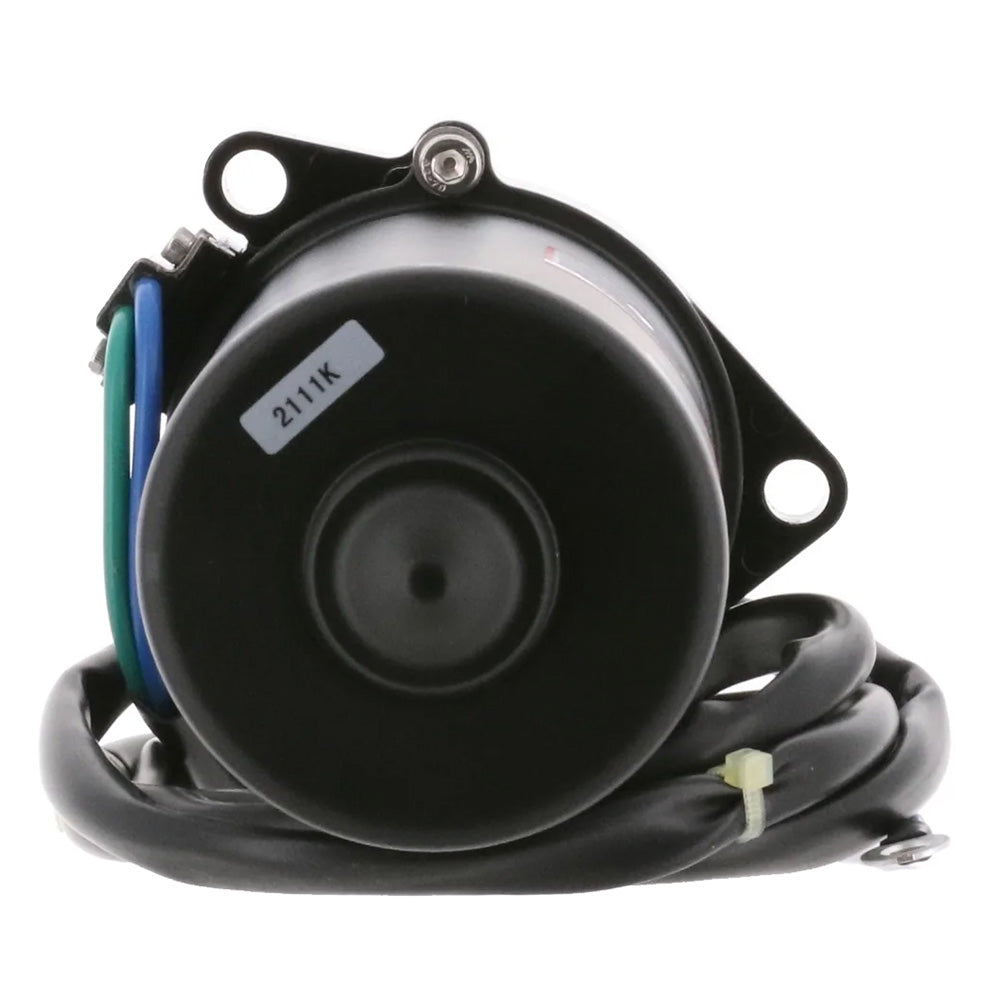

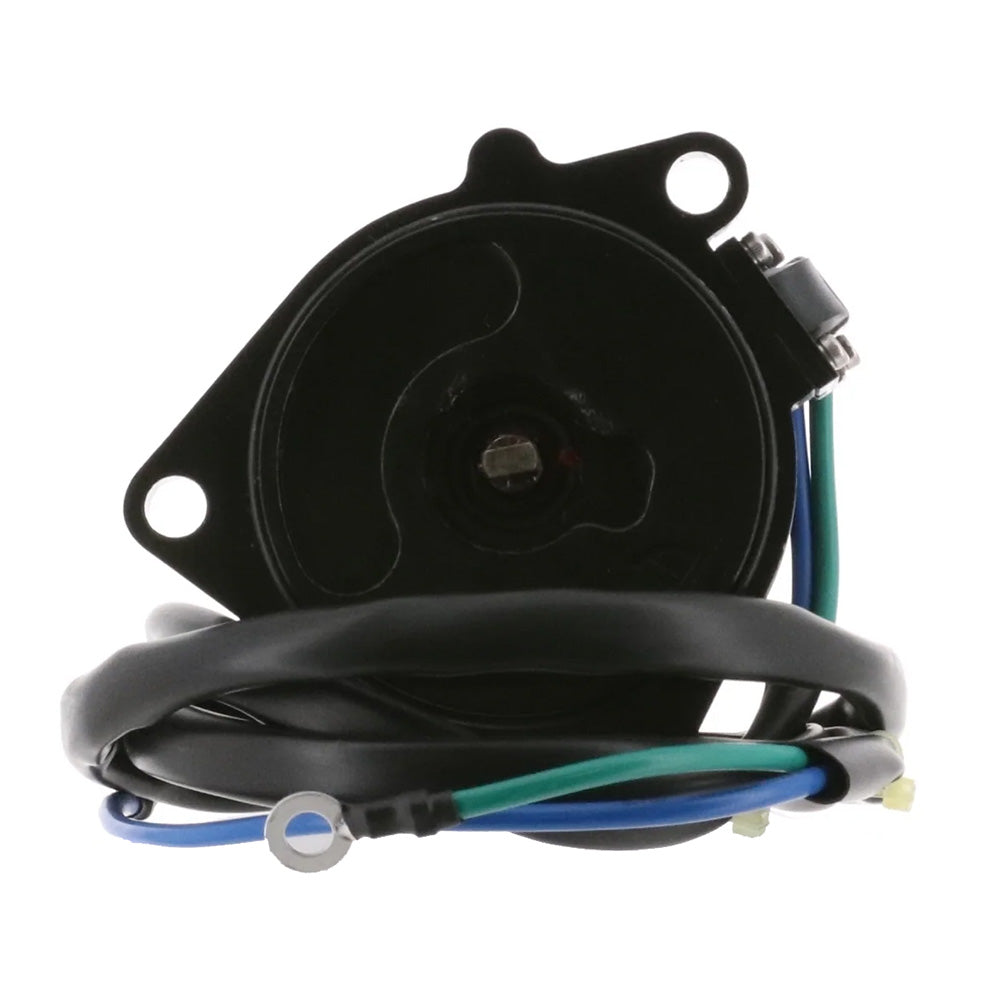

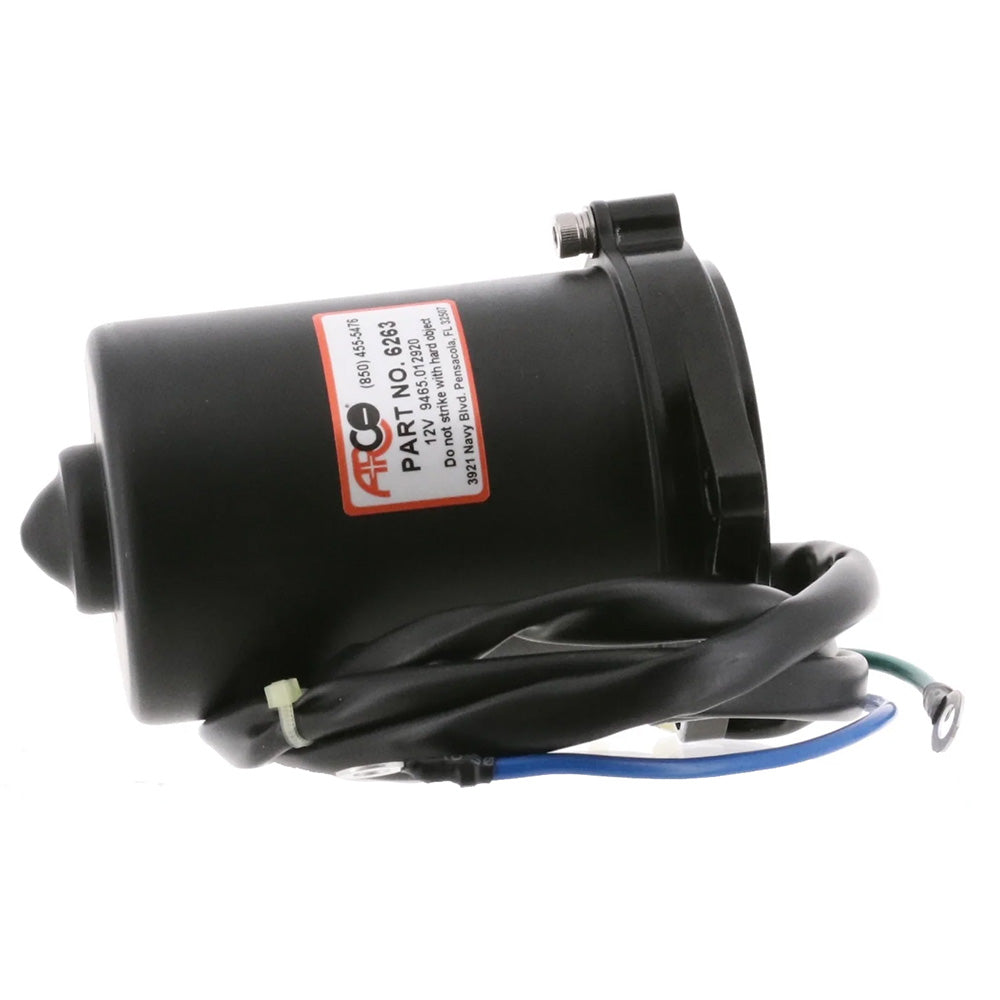

ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha, 2-Wire, 3 Bolt, Flat Blade Shaft
ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha, 2-Wire, 3 Bolt, Flat Blade Shaft
SKU:OM-ARCOMARINE-REPLACEMENTOUT-6263
Low stock: 2 left
Couldn't load pickup availability
Overview
Replace the tilt trim motor on a compatible Yamaha outboard with this ARCO Marine motor. It uses a two-wire connection, three-bolt mounting and a flat blade shaft for the listed Yamaha applications.
Key features
- Dynamic testing checks motor operation before installation.
- Induction case hardening at the shaft's bearing surfaces helps resist wear.
- An epoxy powder coating provides insulation protection.
- Included O-ring and ring terminal ends supply these components for the replacement.
Specifications
- Product type: Replacement outboard tilt trim motor
- Connection: 2-wire
- Mount: 3-bolt
- Shaft: Flat blade
- Yamaha 4-stroke fitment: 2002–2009, 200, 225 and 250 HP
- Yamaha 2-stroke fitment: 2002–2009, 200–300 HP
- Replaces Mercury: 888645T1
- Replaces Yamaha: 60V-43880-00, 69J-43880-00, 69J-43880-01
- Replaces Sierra: 18-6798
- Included components: O-ring and ring terminal ends
Good to know
ARCO recommends cleaning every connection during installation. With proper installation, coverage for defects in materials and workmanship lasts 12 months for leisure use or 90 days for commercial or racing use. Registering this rotating electric product within 30 days of purchase adds one year of warranty coverage.
Specifications
| Brand | ARCO Marine |
|---|---|
| Manufacturer part # | 6263 |
| UPC | 693006010496 |
| Boxed dimensions | 10 x 5 x 4 in |
| Shipping weight | 3.9 lb |
| Country of origin | CHINA |
