ARCO Marine

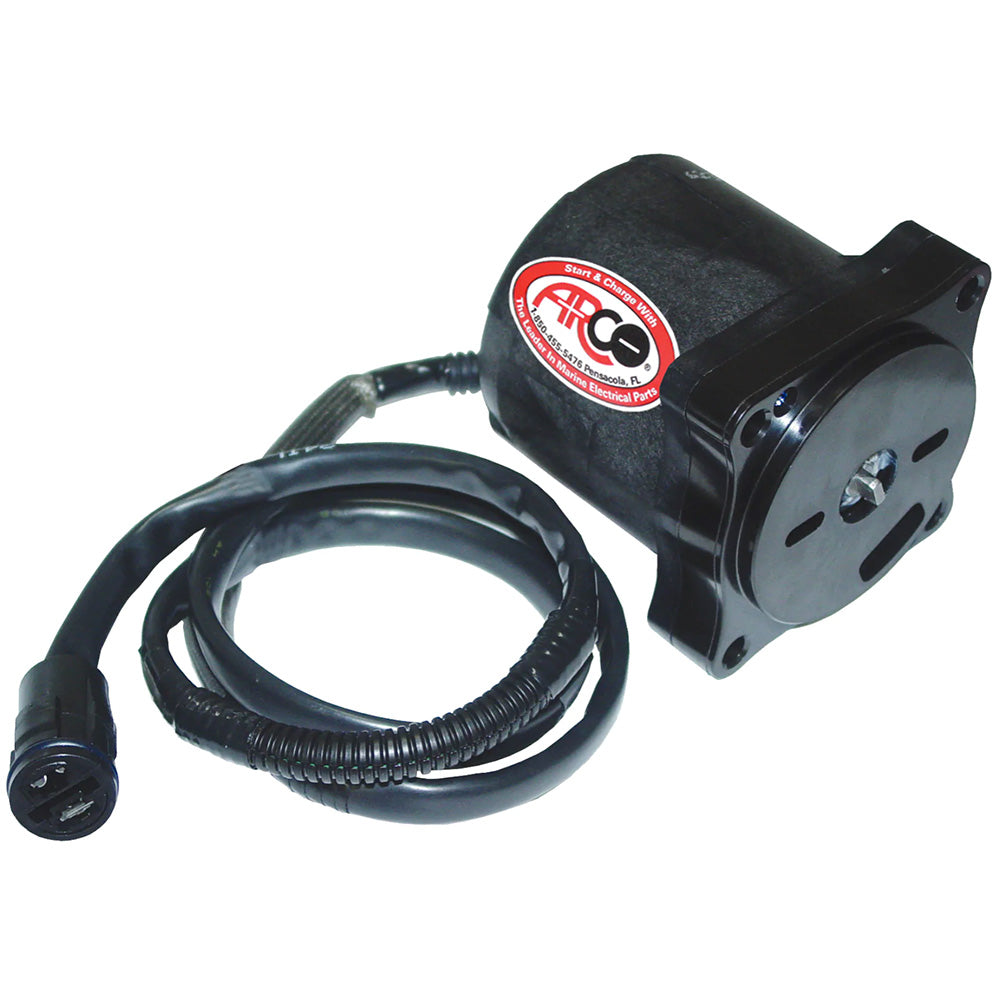

ARCO Marine Replacement Outboard Tilt Trim Motor - Honda/Suzuki - 4 Bolt Mount

ARCO Marine Replacement Outboard Tilt Trim Motor - Honda/Suzuki - 4 Bolt Mount

OM-ARCOMARINE-REPLACEMENTOUT-6234

$334.73
$445.01 $334.73
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized ARCO Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

This ARCO Marine replacement tilt trim motor is built for select Honda and Suzuki outboard applications using a 4-bolt mount. It includes an O-ring and is performance tested before packaging to meet or exceed OEM performance.

  • Application: Replacement outboard tilt trim motor
  • Mount: 4-bolt mount
  • Connector: Round plug-in connector for listed Honda fitment
  • Includes: O-ring
  • Protection: Epoxy powder coated for corrosion protection
  • Motor shaft: Induction case hardened at bearing surfaces
  • Testing: Armatures tested to withstand 50 times operation voltage, 12V
  • Performance testing: Motors tested at 5 different load levels
  • Honda fitment: 2002-Up BF175, BF200, BF225
  • Suzuki fitment: 2002 and up 175, 200 and 225hp 4 Stroke
  • Replaces Honda part number: 36120-ZY3-013
  • Replaces Suzuki part numbers: DF140TLK2, DF140TXK2, DF140TXZK2, DT150TCXK2, DT225TCXGK2, DT225TCXK2
  • Replaces Sierra part number: 18-6742
  • Warranty: 12 months for leisure use and 90 days for commercial or racing applications when properly installed
  • Registration: Extra year of warranty available for rotating electric ARCO products when registered within 30 days of purchase
  • Return note: This product may not be returned to the original point of purchase; contact the manufacturer with issues or concerns

Specifications

BrandARCO Marine
Manufacturer part #6234
UPC693006010557
Boxed dimensions10 x 5 x 4 in
Shipping weight3.2 lb
Country of originCHINA
