ARCO Marine
ARCO Marine Original Equipment Quality Replacement Tilt Trim Motor f/Yamaha 2011-2021
ARCO Marine Original Equipment Quality Replacement Tilt Trim Motor f/Yamaha 2011-2021
SKU:OM-ARCOMARINE-ORIGINALEQUIPM-6293
Low stock: 1 left
Couldn't load pickup availability
Overview

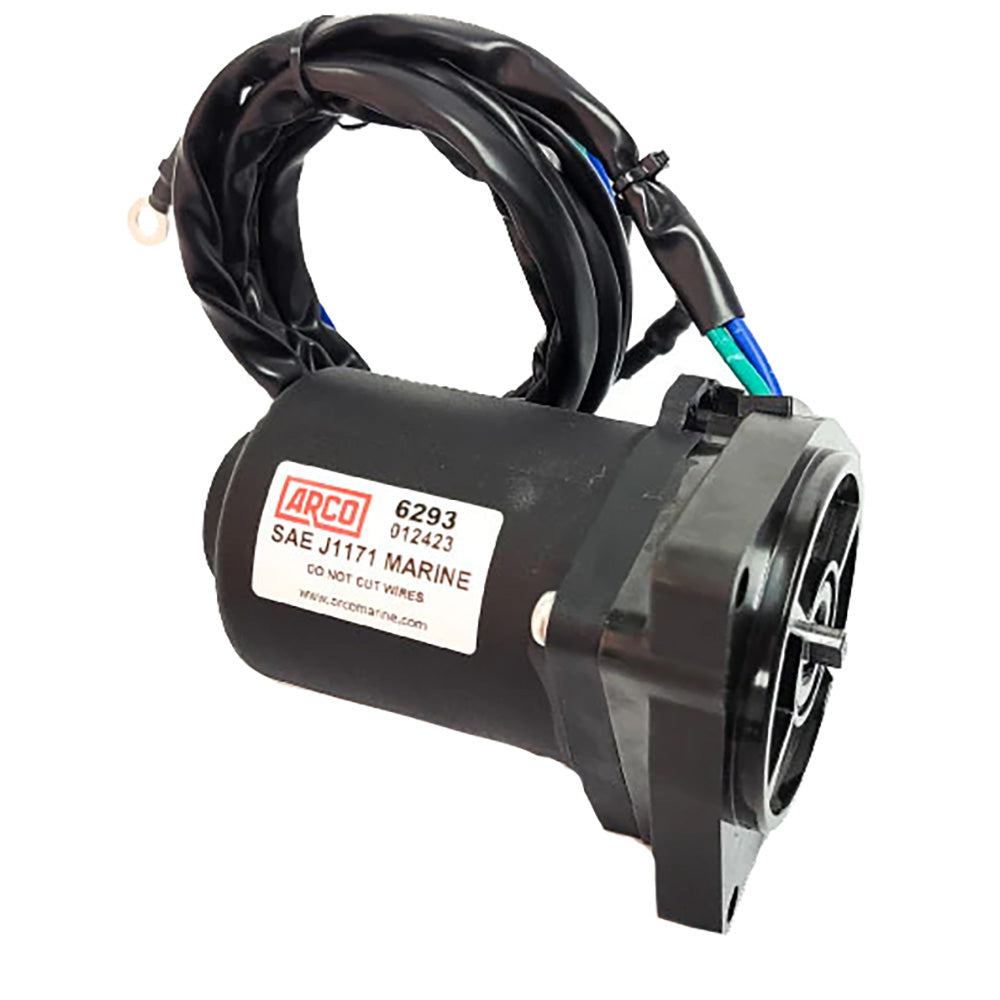

The ARCO Marine replacement tilt trim motor is made for Yamaha 150-250HP 4-stroke outboards from 2011 through 2021. It is intended as an original equipment quality replacement for listed Yamaha tilt trim motor part numbers.
ARCO advises cleaning all electrical connections during installation because corrosion can create resistance and reduce the amperage needed to operate the motor.
- Product type: replacement outboard tilt trim motor
- Fitment: Yamaha 150-250HP, 2011-2021, 4-stroke
- Testing: dynamically tested for out-of-the-box performance
- Motor shaft: induction case hardened at bearing surfaces
- Coating: epoxy powder coated for insulation protection
- Replaces Yamaha part number: 63P-43880-11-00
- Replaces Yamaha part number: 63P-43880-21-00
- Replaces Yamaha part number: 63P-43880-22-00
- Replaces Yamaha part number: 63P-43880-10-00
- Replaces Yamaha part number: 6KW-43880-00-00
- Replaces Yamaha part number: 6KW-43880-01-00
- Warranty: 12 months for leisure use and 90 days for commercial or racing applications when properly installed
- Registration: rotating electric ARCO products can receive one extra year of warranty when registered within 30 days of purchase
- Return note: this product may not be returned to the original point of purchase; contact the manufacturer directly with issues or concerns
Specifications
| Brand | ARCO Marine |
|---|---|
| Manufacturer part # | 6293 |
| UPC | 693006030722 |
| Boxed dimensions | 10 x 5 x 4 in |
| Shipping weight | 3.3 lb |
| Country of origin | UNITED STATES |
