Overview

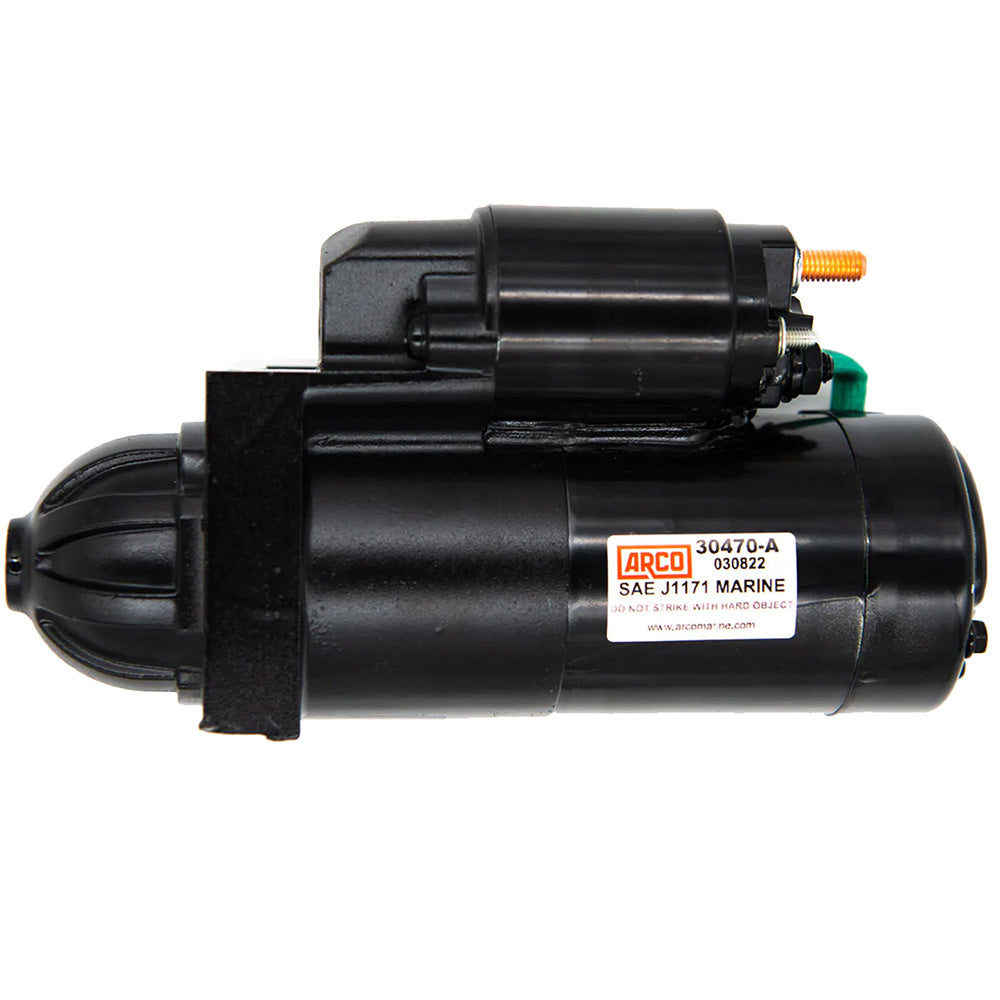

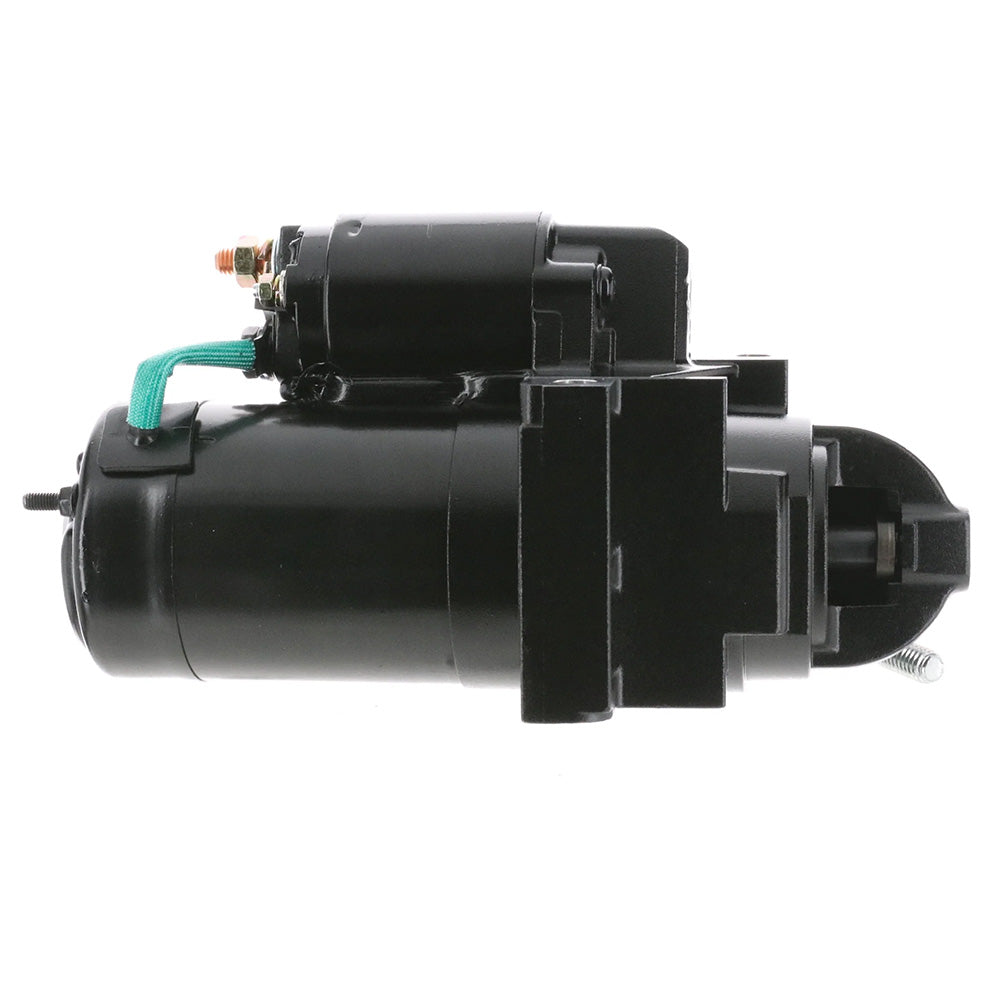

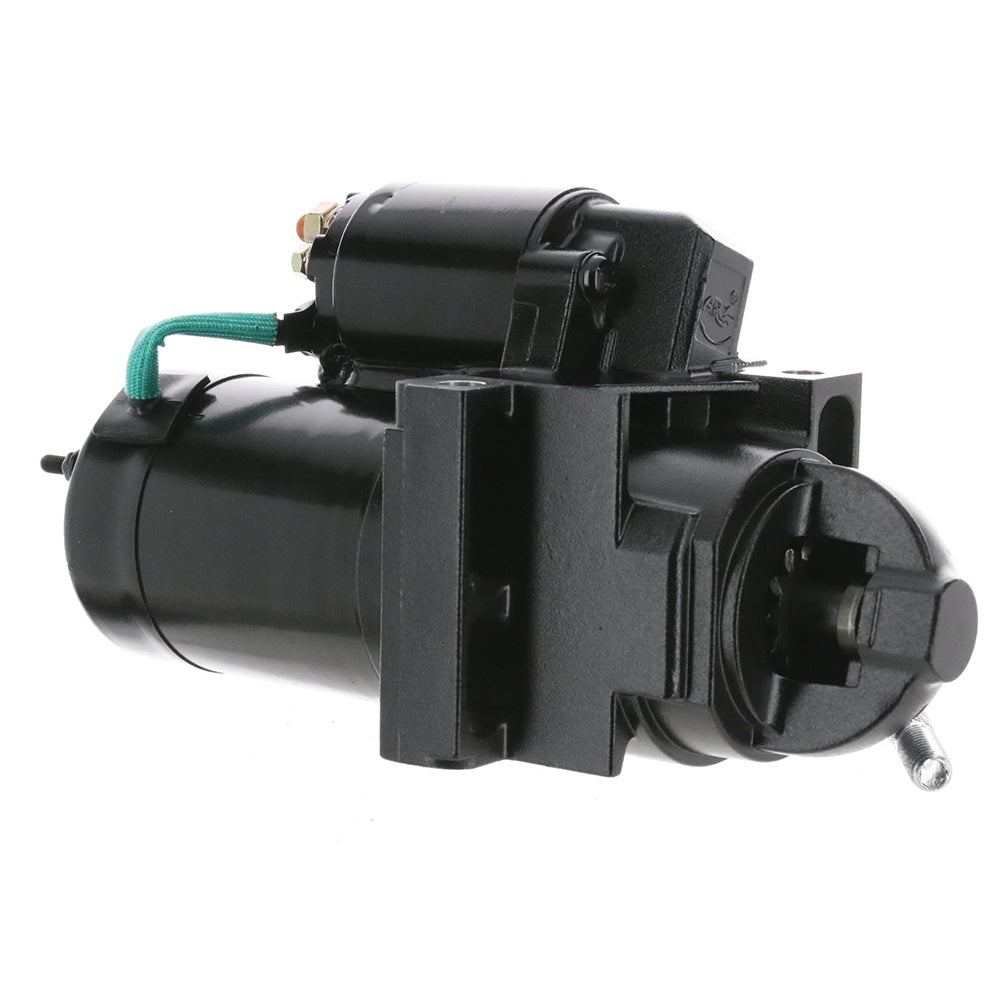

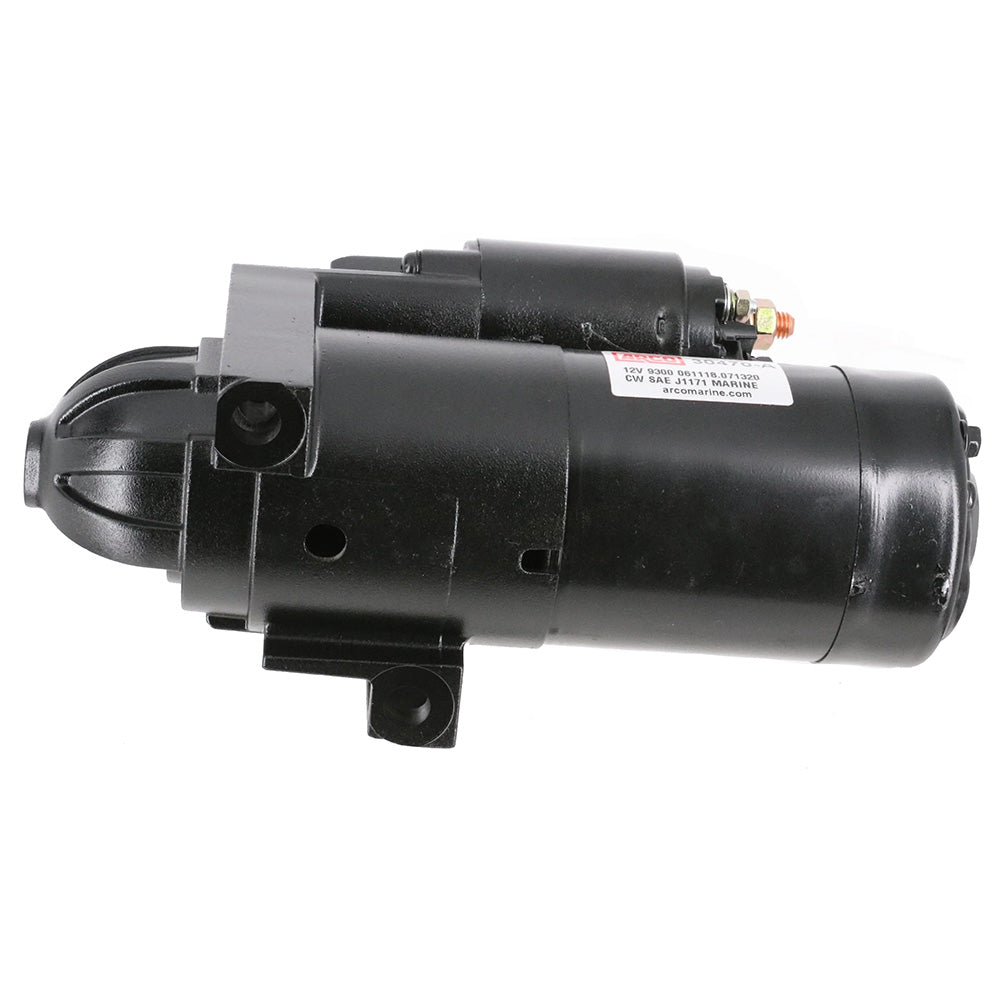

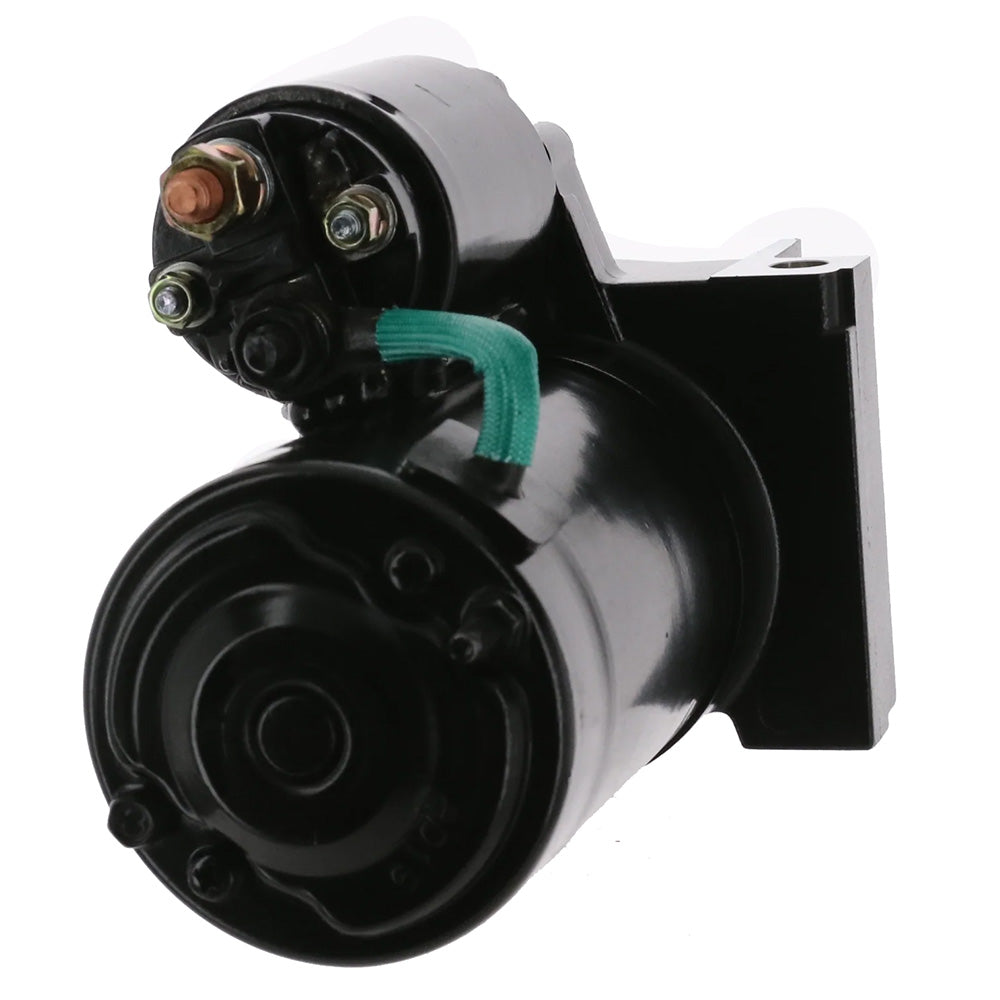

This ARCO Marine inboard starter is built for marine engines using a 14-inch flywheel and 9-tooth OEM-style starter drive. It is intended for Mercruiser, Volvo Penta, OMC, Marine Power, and other listed applications from 3.0L through 8.1L.

  • Brand: ARCO Marine
  • Product type: High-performance inboard starter with gear reduction
  • Flywheel compatibility: 14-inch flywheel
  • Replacement type: Replaces 9-tooth drive OEM versions for 3.0L to 8.1L applications
  • Construction details: Anodized casting and nickel-plated brush holder
  • Included hardware: OEM mounting bolts
  • Protection features: Nickel-coated and/or epoxy-painted surfaces, sealed design to help minimize water intrusion
  • Testing: Dynamically tested before packaging; armatures tested to withstand 50 times 12-volt operating voltage
  • Installation note: ARCO advises using a fully charged battery and clean electrical connections.
  • Warranty: 12 months for leisure use and 90 days for commercial or racing applications when properly installed; an extra year is available for registered rotating electric ARCO products when registered within 30 days.
  • Replaces: BRP/OMC 984456, 986505, 3850525, 3853982, 3854751, 3855177, 3857747, 3860566; DELCO 9000735, 9000762, 9000768, 9000789, 9000819, 9000821, 9000839, 9000840, 9000849, 9000885, 9000940, 9000884; MARINE POWER 0174-000; MERCURY 50-12121A2, 50-12177A2, 50-806964A2, 50-806964A3, 50-806964A4, 50-812428A3, 50-812604A2, 50-822330A2, 50-864340A2, 50-8M8021116, 50-99418A2; SIERRA 18-5905, 18-5910

Specifications

BrandARCO Marine
Manufacturer part #30470-A
UPC693006010755
Boxed dimensions10 x 7 x 5 in
Shipping weight8.9 lb
Country of originKOREA, SOUTH

Manuals & documents

Quick start guidePDF ↓
