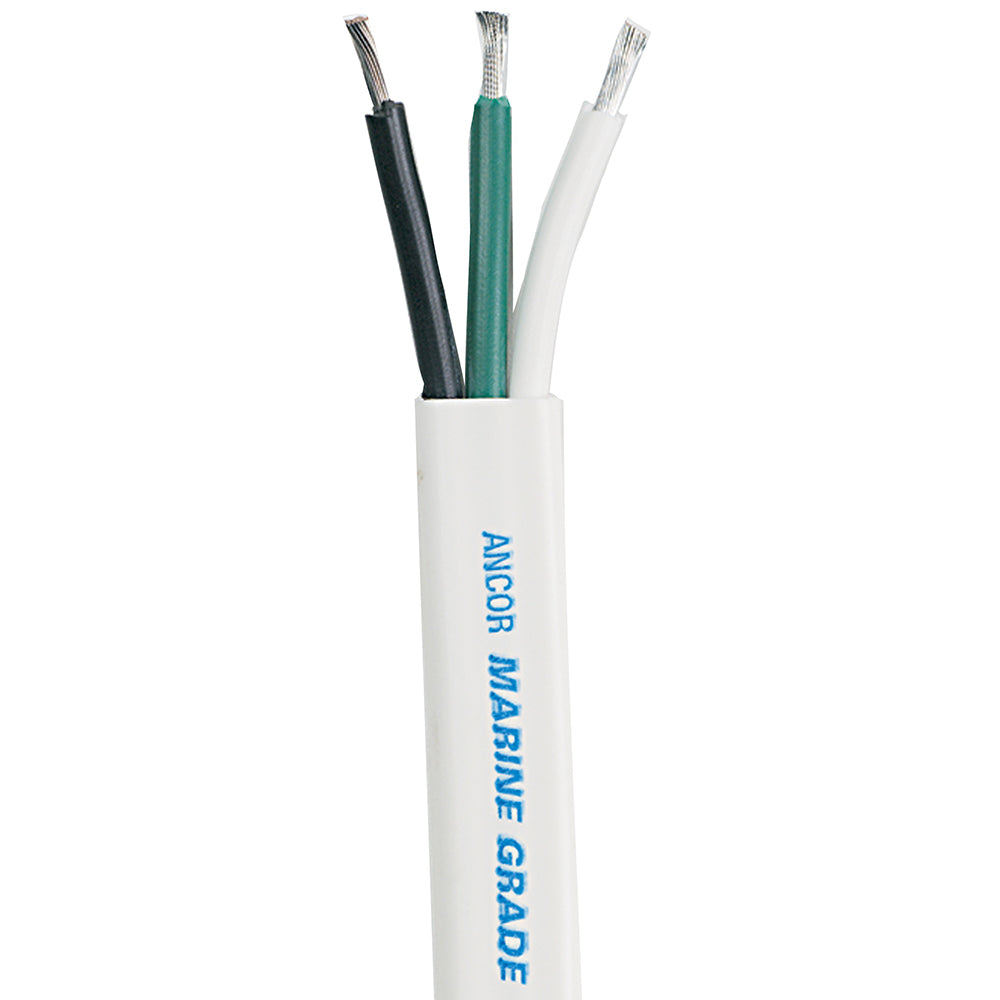

Ancor White Triplex Cable - 12/3 AWG - Flat - 250'

Plan your boat's wiring runs with Ancor's flat 12/3 AWG triplex cable, supplied in a 250-foot length. Three Marine Grade conductors share a white jacket, while flexible stranding helps resist fatigue caused by vibration and repeated flexing.

Key features

• Type 3/Class K stranding allows flexibility while resisting vibration-related fatigue.
• An outer jacket made for easy removal helps with cable preparation and provides abrasion resistance.
• Vinyl insulation retains flexibility in extreme cold.
• Insulation resists salt water, battery acid, oil, gasoline and ultraviolet radiation.
• White, black and green conductors provide distinct colors for identifying wires.

Specifications

• Brand: Ancor
• Cable configuration: Flat triplex
• Wire size: 12/3 AWG
• Length: 250 ft.
• Conductors: 3 Marine Grade primary conductors
• Conductor colors: White, black and green
• Outer jacket color: White
• Stranding: Type 3/Class K
• Insulation material: Vinyl
• Voltage rating: 600V
• Dry temperature rating: 105°C
• Wet temperature rating: 75°C
