Ancor Safety Duplex Cable - 10/2 AWG - Red/Yellow - Flat - 250'

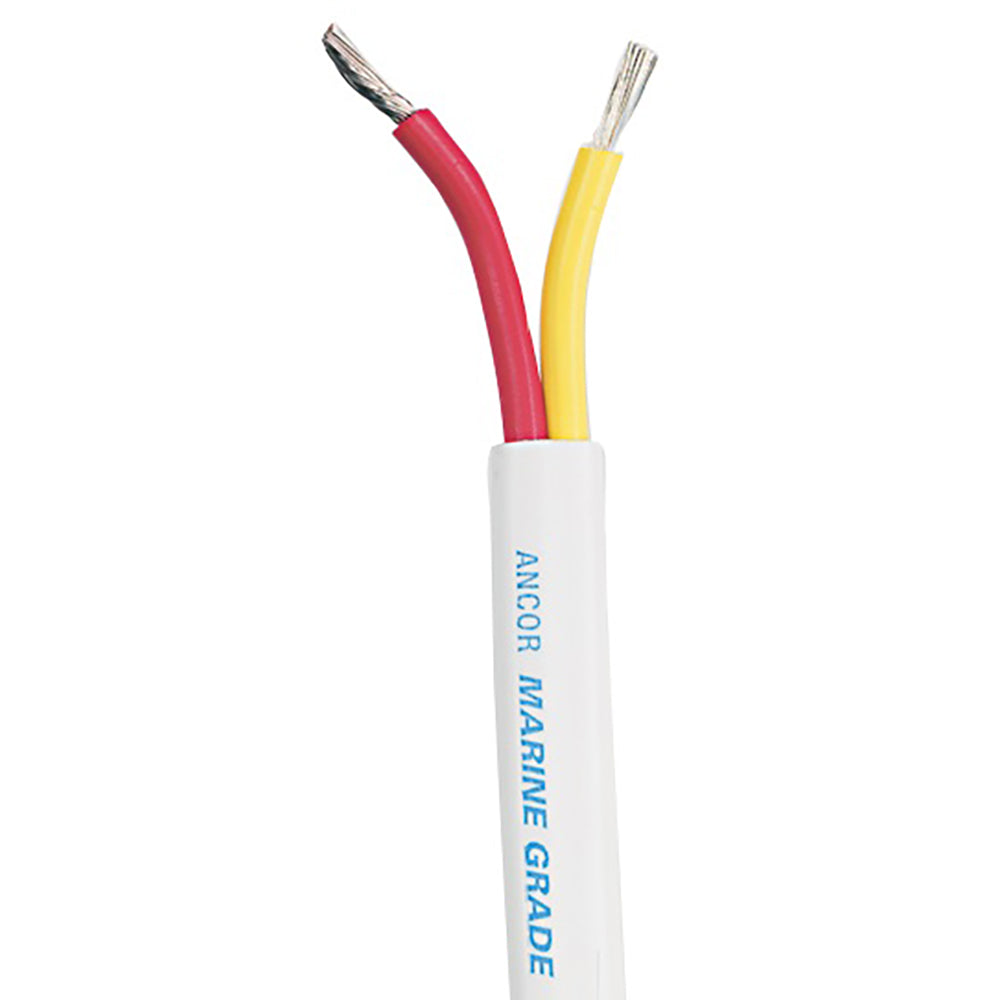

Ancor Safety Duplex Cable is a flat 10/2 AWG marine cable with red and yellow conductors inside a white common jacket. It is supplied in a 250 foot length for marine electrical installations that call for ABYC color coding.

The conductors use ultra-flexible Type 3/Class K tinned copper stranding, with vinyl insulation rated for marine exposure. The cable exceeds UL 1426 standards and is rated for 600V service.

• Brand: Ancor
• Cable type: Safety duplex cable
• Gauge: 10/2 AWG
• Shape: Flat
• Length: 250 feet
• Conductor colors: Red and yellow
• Jacket color: White
• Conductor material: Tinned copper stranding
• Stranding: Ultra flexible Type 3/Class K
• Insulation: Premium vinyl
• Voltage rating: 600V
• Temperature rating: 105°C dry and 75°C wet
• Cold flexibility: Remains flexible at -40°F/C
• Standards: Exceeds UL 1426 and uses ABYC color coding
• Resistance: Salt water, battery acid, oil, gasoline, heat, abrasion, and ultra-violet radiation
• Warning: This product can expose you to di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
