• Ancor 22-18 Male Heatshrink Snap Plug - 100-Pack
1 1

Ancor

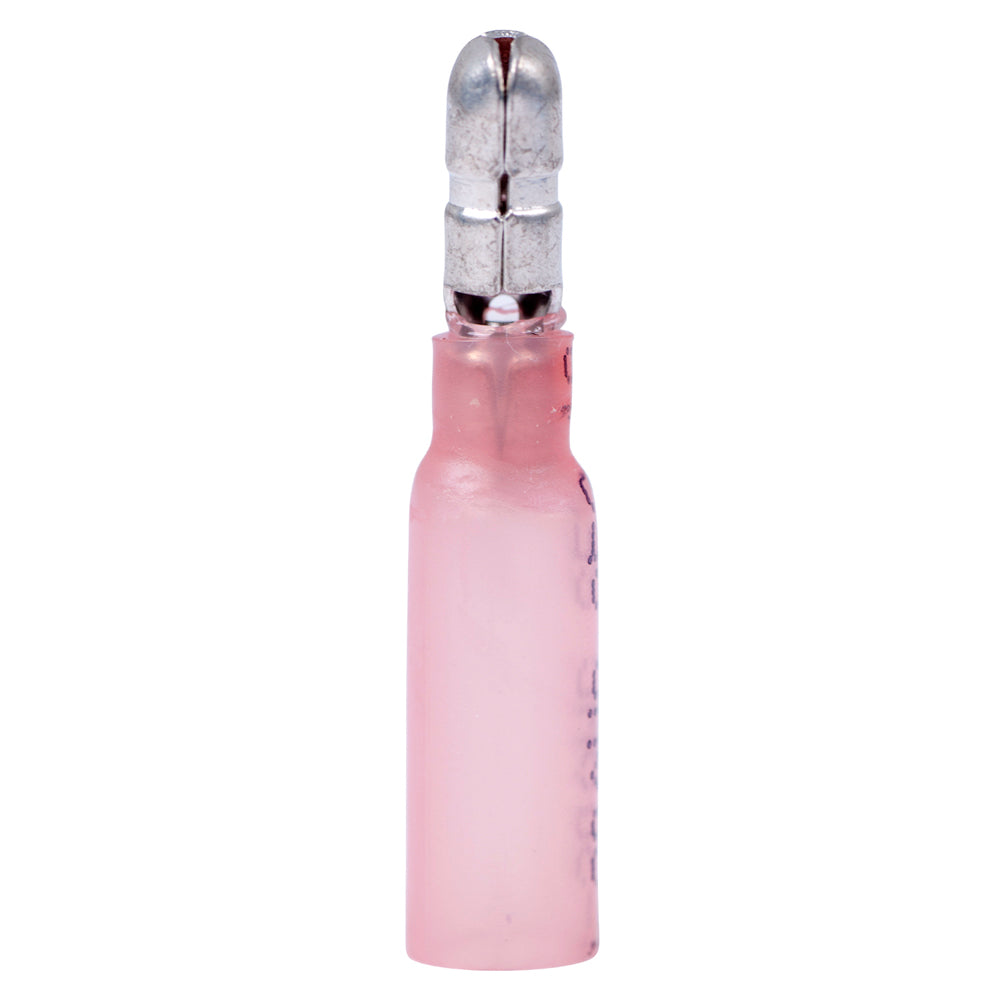

Ancor 22-18 Male Heatshrink Snap Plug - 100-Pack

Ancor 22-18 Male Heatshrink Snap Plug - 100-Pack

OM-ANCOR-2218MALE-318999

$49.03
$69.40 $49.03
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

22-18 AWGGauge
Snap PlugsType
100Package Qty
YesHeat Shrink

Ancor 22-18 male heatshrink snap plugs are electrical connectors for marine wiring jobs where sealed, strain-relieved terminations are needed. This 100-pack is suited for 22-18 wire range installations and uses heat-activated adhesive inside the sleeve to help protect the connection from harsh onboard conditions.

  • Pack quantity: 100 male snap plugs
  • Wire range: 22-18
  • Size: 0.3-0.8mm/4mm
  • Gender: Male
  • Tubing: Cross-linked polyolefin, stronger than PVC and resistant to burning like PVC
  • Seal: Heat-activated adhesive lining helps block salt water, oil, acids, and sunlight
  • Insulator: Nylon for marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage
  • Terminal construction: Tinned pure copper with brazed seam for corrosion resistance, current flow, and strength
  • Shrink ratio: Shrinks to 1/3 original size
  • Shrink temperature: 257 deg. F / 125 deg. C
  • Operating temperature range: 40 deg. C to 110 deg. C
  • Listings: UL Listed and CSA Recognized

Specifications

Gauge22-18 AWG
TypeSnap Plugs
Package Qty100
Heat ShrinkYes
BrandAncor
Manufacturer part #318999
UPC091887807677
Boxed dimensions5 x 3 x 1 in
Shipping weight0.2 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
