• Ancor 22-18 Gauge - #8 Heat Shrink Ring Terminal - 25-Pack
1 1

Ancor

Ancor 22-18 Gauge - #8 Heat Shrink Ring Terminal - 25-Pack

Ancor 22-18 Gauge - #8 Heat Shrink Ring Terminal - 25-Pack

OM-ANCOR-2218GAUGE-310225

$25.61
$25.93 $25.61
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

22-18 AWGGauge
YesHeat Shrink
Ring TerminalsType
#8Post Size
25Package Qty

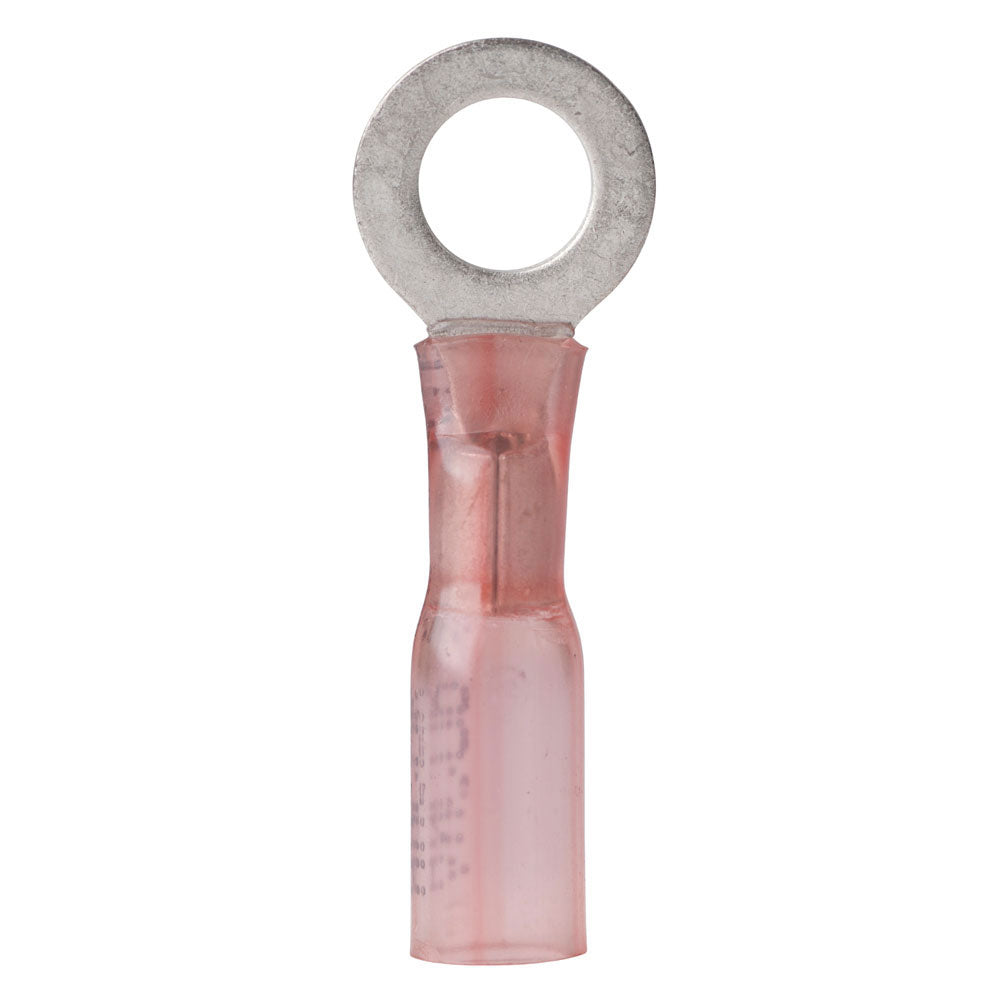

These Ancor heat shrink ring terminals are sized for 22-18 gauge wire and #8 screws in marine electrical work. The 25-pack uses adhesive-lined heat shrink insulation and tinned copper terminals to support sealed, strain-relieved connections.

  • Terminal type: Heat shrink ring terminal
  • Wire range: 22-18 gauge, 0.3-0.8 mm
  • Screw size: #8
  • Quantity: 25 terminals
  • Tubing: Cross linked polyolefin
  • Seal: Heat activated adhesive lining seals against salt water, oil, acids, and sunlight
  • Insulator: Nylon for marine grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage
  • Approvals: UL Listed and CSA Recognized
  • Shrink ratio: Shrinks to 1/3 of original size
  • Shrink temperature: 257 degrees F / 125 degrees C
  • Operating temperature range: 40 degrees C to 110 degrees C
  • Terminal material: Pure copper, tinned for corrosion resistance
  • Construction: Brazed seam
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Gauge22-18 AWG
Heat ShrinkYes
TypeRing Terminals
Post Size#8
Package Qty25
BrandAncor
Manufacturer part #310225
UPC091887316278
Boxed dimensions5 x 3 x 1 in
Shipping weight0.2 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
