• Ancor 22-18 Gauge - 5/16" Heat Shrink Ring Terminal - 25-Pack
1 1

Ancor

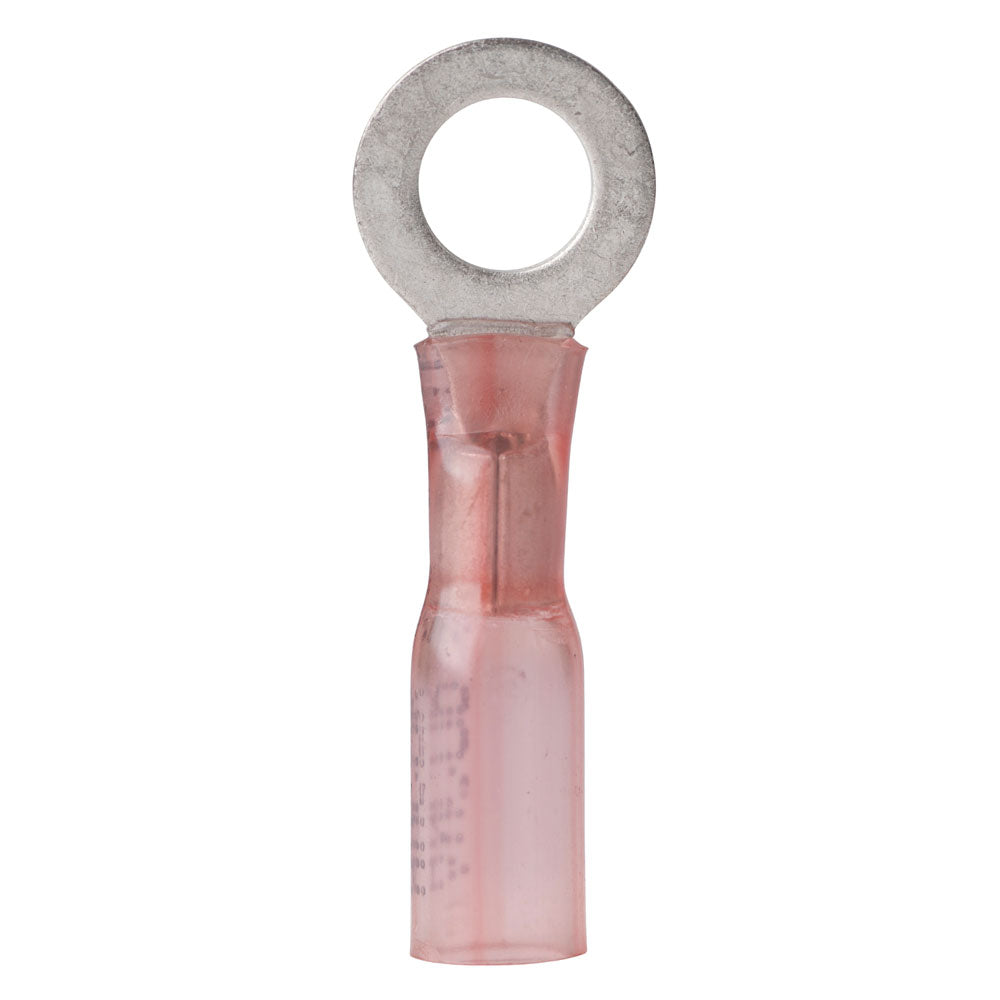

Ancor 22-18 Gauge - 5/16" Heat Shrink Ring Terminal - 25-Pack

Ancor 22-18 Gauge - 5/16" Heat Shrink Ring Terminal - 25-Pack

OM-ANCOR-2218GAUGE-310525

$24.88
$24.88
Shipping calculated at checkout.

Low stock: 1 left
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

22-18 AWGGauge
Ring TerminalsType
5/16"Post Size
25Package Qty
YesHeat Shrink

These Ancor heat shrink ring terminals connect 22 to 18 gauge wire to a 5/16 inch screw size. The 25-pack uses tinned pure copper terminals with a brazed seam, plus heat shrink insulation designed to seal and relieve strain after installation.

  • Wire range: 22-18 gauge
  • Screw size: 5/16 inch
  • Quantity: 25 terminals
  • Tubing: Cross linked polyolefin
  • Seal: Heat activated adhesive lining
  • Insulator: Nylon
  • Listings: UL Listed and CSA Recognized
  • Shrink ratio: Shrinks to 1/3 original size
  • Shrink temperature: 257 degrees F / 125 degrees C
  • Operating temperature range: 40 degrees C to 110 degrees C
  • Terminal material: Tinned pure copper
  • Construction: Brazed seam
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects or other reproductive harm.

Specifications

Gauge22-18 AWG
TypeRing Terminals
Post Size5/16"
Package Qty25
Heat ShrinkYes
BrandAncor
Manufacturer part #310525
UPC091887311037
Boxed dimensions5 x 3 x 1 in
Shipping weight0.2 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
