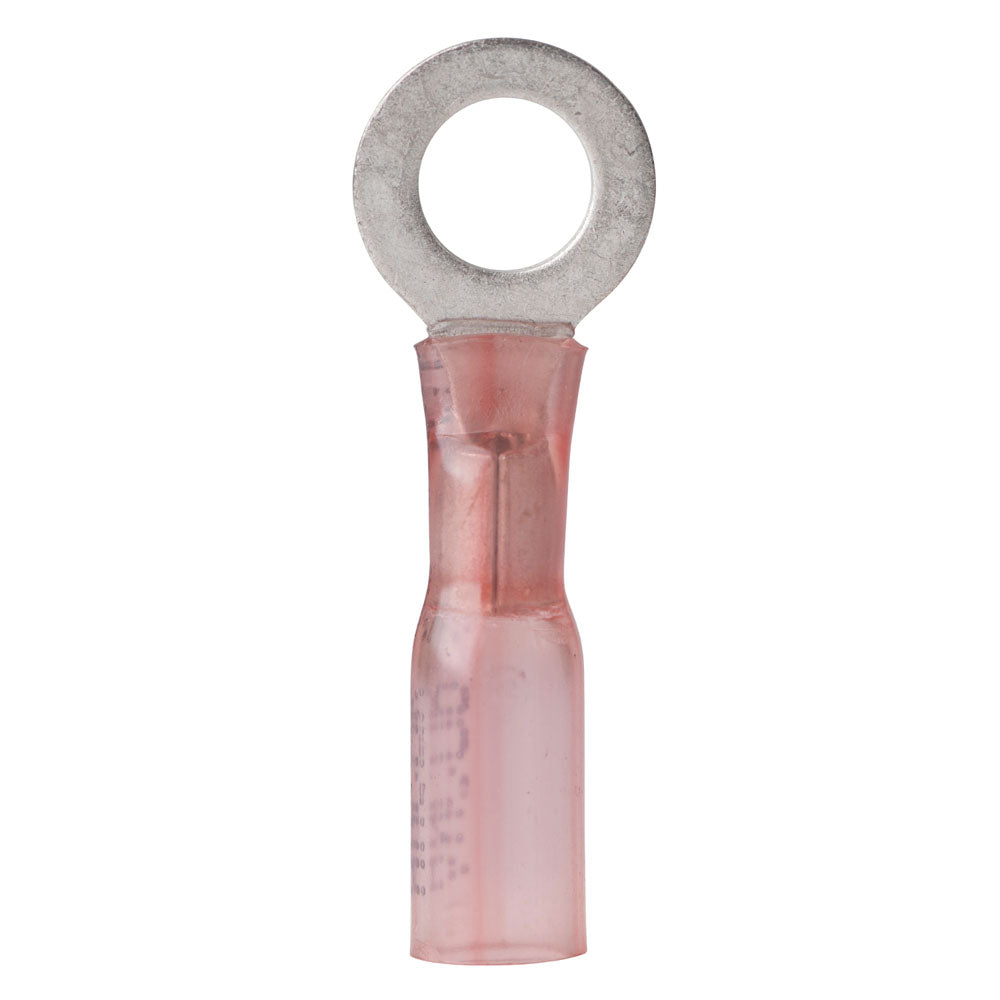

Ancor 22-18 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack

Ancor 22-18 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack

OM-ANCOR-2218GAUGE-310625

$24.88
$24.88
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

22-18 AWGGauge
25Package Qty
YesHeat Shrink
Ring TerminalsType
3/8"Post Size

These Ancor heat shrink ring terminals are made for 22-18 gauge wire and a 3/8 inch screw size. The 25-pack is suited for marine wiring work where sealed connections, strain relief, and corrosion resistance are required.

  • Product: Heat shrink ring terminal
  • Wire range: 22-18 gauge
  • Screw size: 3/8 inch
  • Quantity: 25
  • Tubing: Cross-linked polyolefin
  • Seal: Heat-activated adhesive lining seals against salt water, oil, acids, and sunlight
  • Insulator: Nylon insulator for Marine Grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage
  • Listings: UL Listed and CSA Recognized
  • Shrink ratio: Shrinks to 1/3 original size
  • Shrink temperature: 257 degrees F/125 degrees C
  • Operating temperature range: 40 degrees C to 110 degrees C
  • Terminal material: Tinned pure copper
  • Seam: Brazed seam

Specifications

Gauge22-18 AWG
Package Qty25
Heat ShrinkYes
TypeRing Terminals
Post Size3/8"
BrandAncor
Manufacturer part #310625
UPC091887311150
Boxed dimensions4 x 3 x 1 in
Shipping weight0.2 lb
Country of originUNITED STATES
