• Ancor 22-18 Gauge - #10 Heat Shrink Ring Terminal - 3-Pack
1 1

Ancor

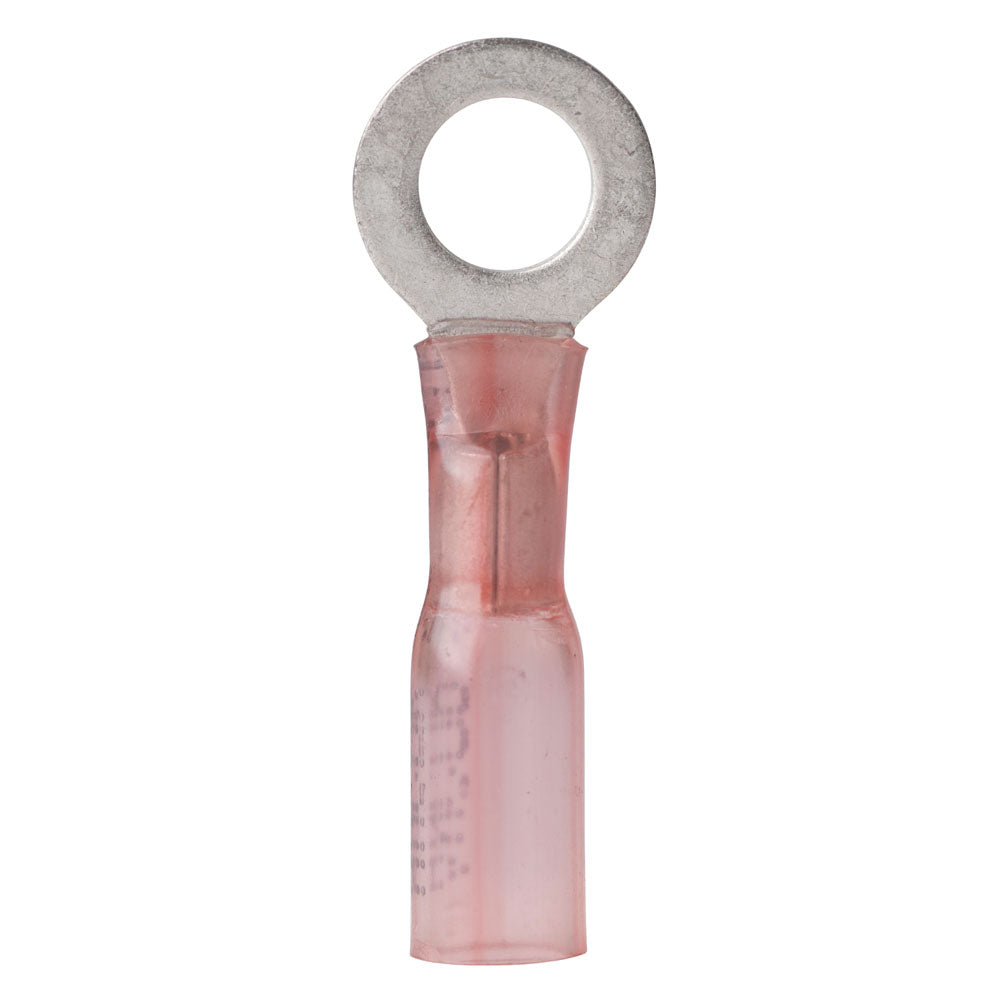

Ancor 22-18 Gauge - #10 Heat Shrink Ring Terminal - 3-Pack

Ancor 22-18 Gauge - #10 Heat Shrink Ring Terminal - 3-Pack

OM-ANCOR-2218GAUGE-310303

$13.99
$13.99
Shipping calculated at checkout.

Low stock: 3 left
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

22-18 AWGGauge
YesHeat Shrink
Ring TerminalsType
#10Post Size
3Package Qty

These Ancor heat shrink ring terminals are made for 22-18 gauge wire and #10 screw connections. The 3-pack uses a tinned pure copper terminal with a brazed seam and heat shrink insulation designed for marine electrical environments.

  • Wire range: 22-18 gauge
  • Screw size: #10
  • Quantity: 3 terminals
  • Tubing: Cross-linked polyolefin
  • Seal: Heat-activated adhesive lining
  • Insulator: Nylon
  • Listings: UL Listed and CSA Recognized
  • Shrink ratio: Shrinks to 1/3 original size
  • Shrink temperature: 257 deg F / 125 deg C
  • Operating temperature range: 40 deg C to 110 deg C
  • Terminal material: Tinned pure copper
  • Seam: Brazed seam
  • Resistance features: Marine Grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

Specifications

Gauge22-18 AWG
Heat ShrinkYes
TypeRing Terminals
Post Size#10
Package Qty3
BrandAncor
Manufacturer part #310303
UPC091887318302
Boxed dimensions4 x 2 x 1 in
Shipping weight0.1 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
