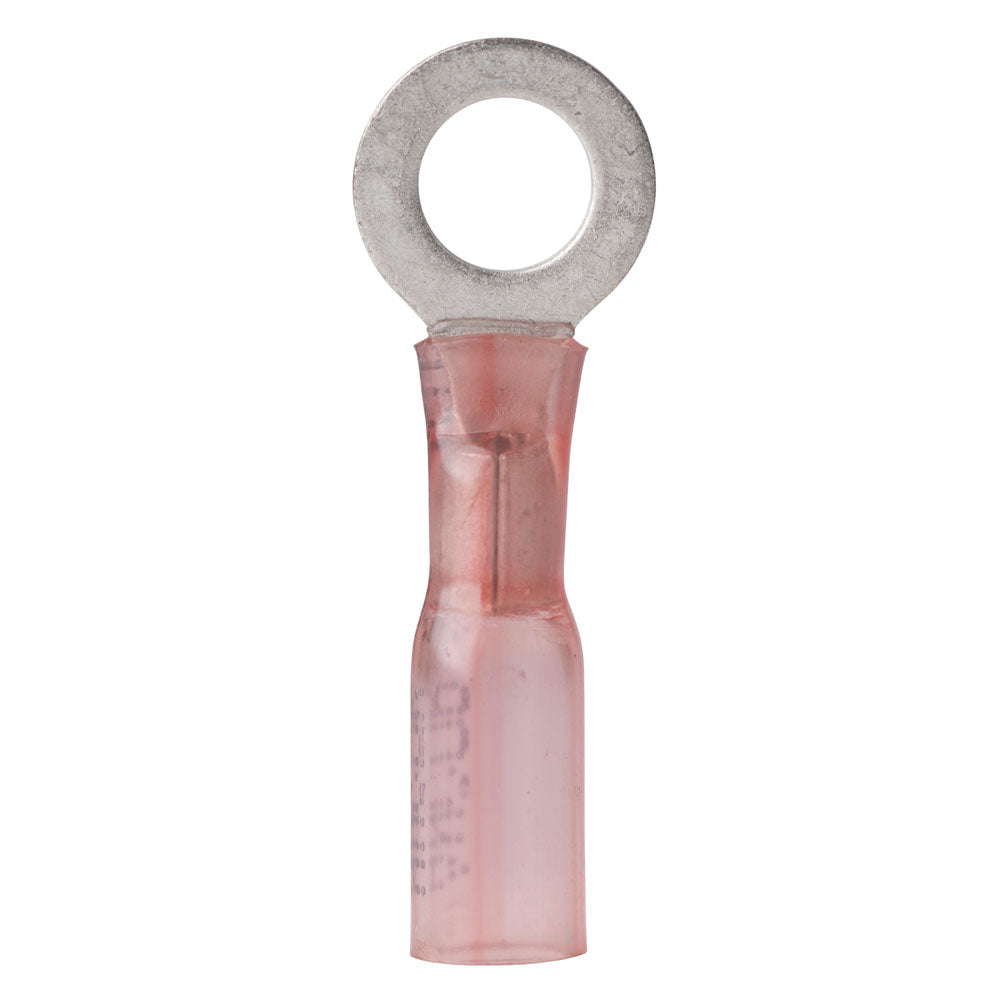

Ancor 22-18 Gauge - 1/4" Heat Shrink Ring Terminal - 25-Pack

Ancor 22-18 Gauge - 1/4" Heat Shrink Ring Terminal - 25-Pack

SKU:OM-ANCOR-2218GAUGE-310425

Regular price $24.88
Regular price Sale price $24.88
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left

Quantity
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

1/4"Post Size
25Package Qty
YesHeat Shrink
Ring TerminalsType
22-18 AWGGauge

Make ring-terminal connections on your boat's 22–18 gauge wiring with this 25-pack from Ancor. Each terminal fits a 1/4-inch screw, and its adhesive-lined heat shrink sleeve seals the connection while helping relieve strain and vibration.

Key features

  • Heat-activated adhesive forms a watertight seal to protect the connection.
  • Shrinking the sleeve adds strain relief and helps support wiring exposed to vibration.
  • Tinned copper combines electrical conductivity with corrosion resistance.
  • A brazed seam strengthens the terminal connection.
  • Nylon insulation resists sunlight, water, oil, chemicals and cut-through damage.
  • Cross-linked polyolefin tubing shrinks to one-third of its original size around the connection.

Specifications

  • Terminal type: Heat shrink ring
  • Wire range: 22–18 gauge
  • Screw size: 1/4 inch
  • Quantity: 25
  • Conductor material: Tinned pure copper
  • Insulator material: Nylon
  • Tubing material: Cross-linked polyolefin
  • Shrink ratio: 3:1
  • Shrink temperature: 257°F (125°C)
  • Certifications: UL Listed and CSA Recognized

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Post Size1/4"
Package Qty25
Heat ShrinkYes
TypeRing Terminals
Gauge22-18 AWG
BrandAncor
Manufacturer part #310425
UPC091887310757
Boxed dimensions4 x 4 x 1 in
Shipping weight0.2 lb
Country of originUS
