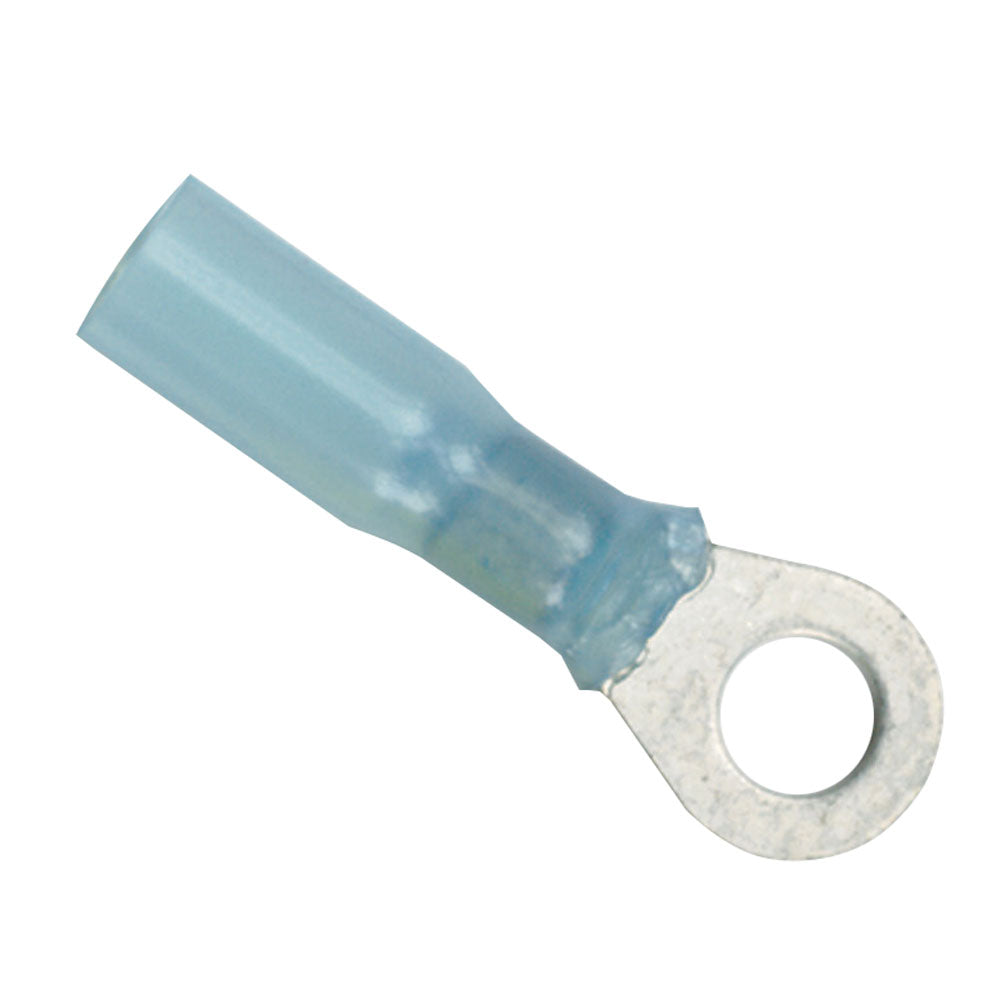

• Ancor 16-14 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack
1 1

Ancor

Ancor 16-14 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack

Ancor 16-14 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack

OM-ANCOR-1614GAUGE-311203

$13.99
$13.99
Shipping calculated at checkout.

Low stock: 3 left
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

16-14 AWGGauge
#8Post Size
3Package Qty
YesHeat Shrink
Ring TerminalsType

Ancor heat shrink ring terminals are made for marine electrical connections using 16-14 gauge wire and a #8 screw. This 3-pack is intended for sealed, strain-relieved terminations where corrosion resistance and vibration protection matter.

  • Wire size: 16-14 gauge
  • Screw size: #8
  • Quantity: 3 terminals
  • Wire range: 1-2 mm
  • Tubing: cross-linked polyolefin heat shrink with heat-activated adhesive lining
  • Insulator: nylon for marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage
  • Seal protection: adhesive lining seals against salt water, oil, acids, and sunlight
  • Shrink ratio: shrinks to 1/3 of original size
  • Shrink temperature: 257 degrees F / 125 degrees C
  • Operating temperature range: -40 degrees C to 110 degrees C
  • Terminal construction: pure copper with tinned finish and brazed seam
  • Listings: UL Listed and CSA Recognized
  • Warning: this product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

Gauge16-14 AWG
Post Size#8
Package Qty3
Heat ShrinkYes
TypeRing Terminals
BrandAncor
Manufacturer part #311203
UPC091887313024
Boxed dimensions4 x 2 x 1 in
Shipping weight0.1 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
