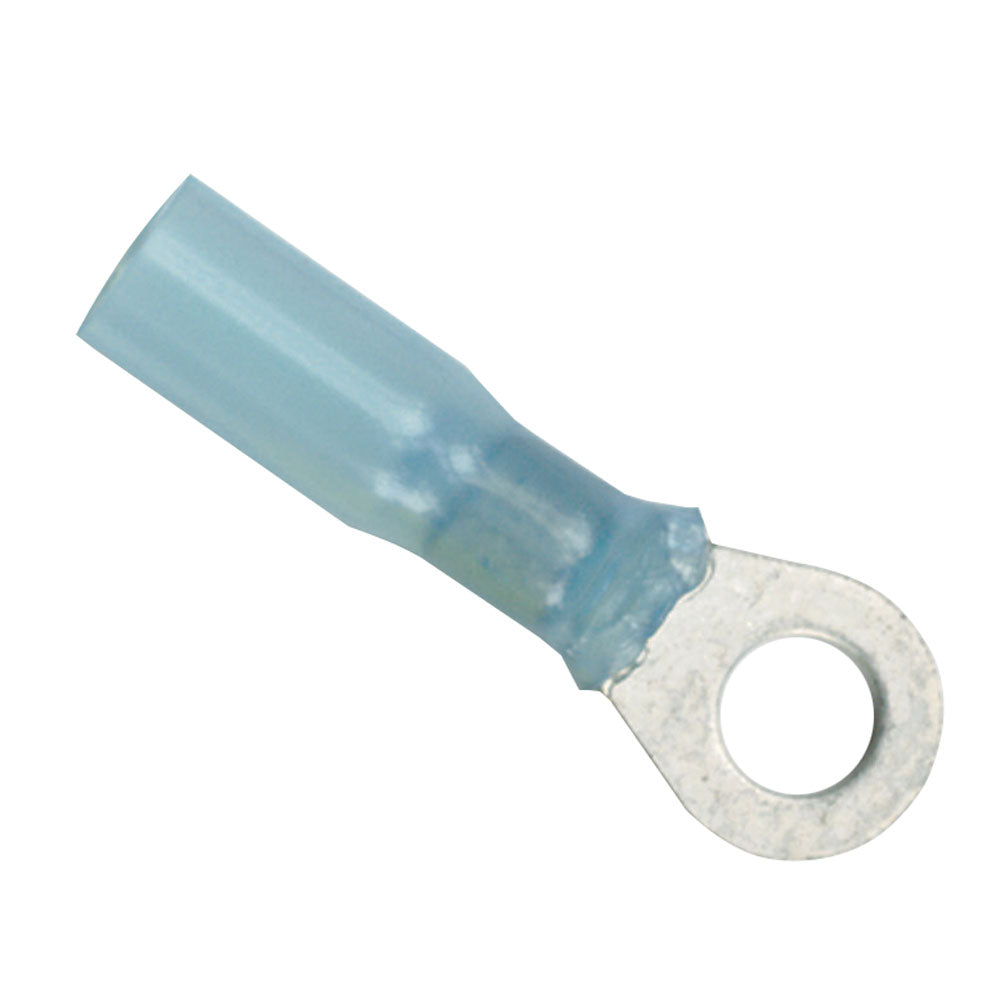

Ancor 16-14 Gauge - #8 Heat Shrink Ring Terminal - 100-Pack

Ancor heat shrink ring terminals are made for 16-14 gauge wire and #8 screw connections in marine electrical work. This 100-pack combines a tinned copper terminal, nylon insulator, and adhesive-lined heat shrink sleeve for sealed, strain-relieved terminations.

• Brand: Ancor
• Product type: Heat shrink ring terminal
• Wire gauge: 16-14
• Screw size: #8
• Quantity: 100-pack
• Wire range: 1-2 mm
• Tubing: Cross-linked polyolefin
• Seal: Heat-activated adhesive lining resists salt water, oil, acids, and sunlight while providing strain relief
• Insulator: Nylon, with resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage
• Approvals: UL Listed and CSA Recognized
• Shrink ratio: Shrinks to 1/3 original size
• Shrink temperature: 257 degrees F / 125 degrees C
• Operating temperature range: 40 degrees C to 110 degrees C
• Terminal material: Pure copper, tinned for corrosion resistance
• Construction: Brazed seam
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm
