• Ancor 16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack
1 1

Ancor

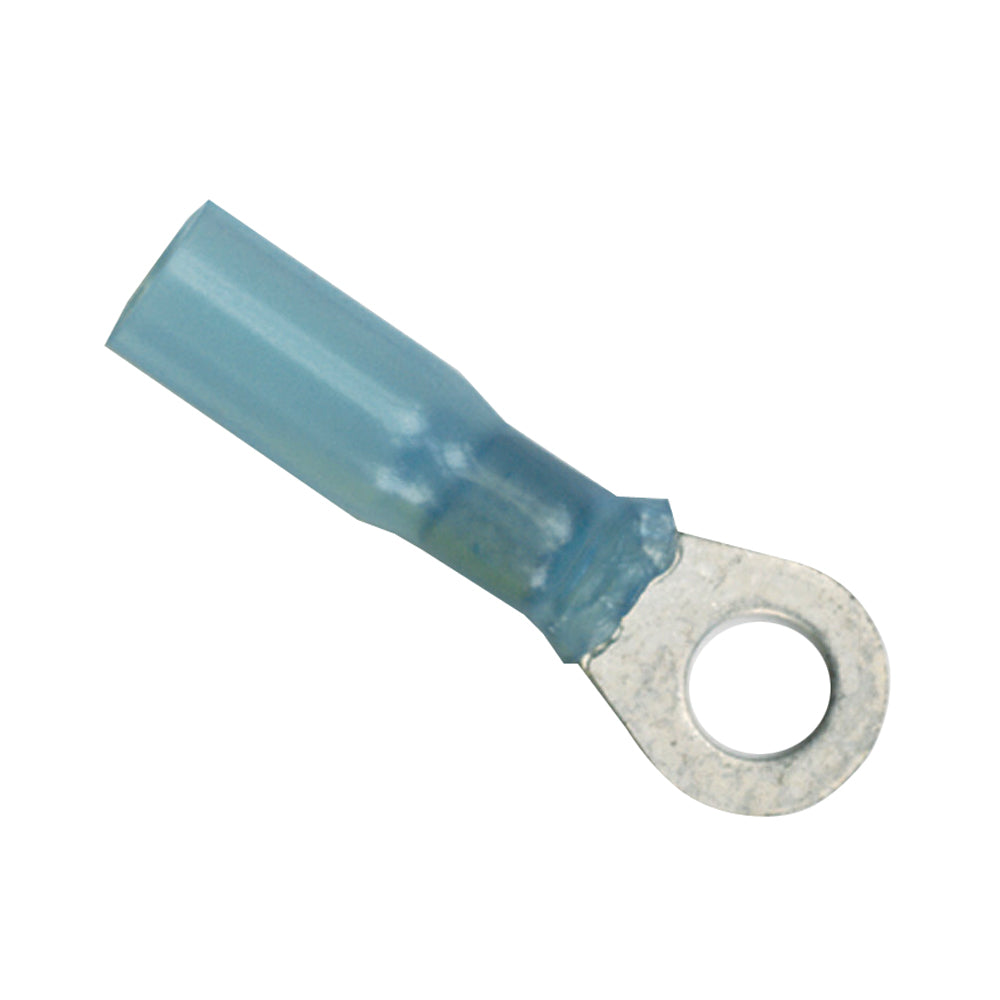

Ancor 16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack

Ancor 16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack

OM-ANCOR-1614GAUGE-311503

$13.99
$13.99
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

16-14 AWGGauge
3Package Qty
YesHeat Shrink
Ring TerminalsType
5/16"Post Size

These Ancor heat shrink ring terminals are sized for 16-14 gauge wire and a 5/16 inch screw connection. The 3-pack is intended for marine electrical terminations where sealing, strain relief, and corrosion resistance are required.

  • Wire range: 16-14 gauge
  • Screw size: 5/16 inch
  • Quantity: 3 ring terminals
  • Tubing: Cross-linked polyolefin, stronger than PVC and will not burn like PVC
  • Seal: Heat-activated adhesive lining resists salt water, oil, acids, and sunlight
  • Insulator: Nylon for marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage
  • Approvals: UL Listed and CSA Recognized
  • Shrink ratio: Shrinks to 1/3 of original size
  • Shrink temperature: 257 degrees F / 125 degrees C
  • Operating temperature range: 40 degrees C to 110 degrees C
  • Conductor: Tinned pure copper with brazed seam
  • California Proposition 65: Can expose users to di(2-ethylhexyl)phthalate (DEHP)

Specifications

Gauge16-14 AWG
Package Qty3
Heat ShrinkYes
TypeRing Terminals
Post Size5/16"
BrandAncor
Manufacturer part #311503
UPC091887313147
Boxed dimensions1 x 1 x 1 in
Shipping weight0.1 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
