• Ancor 16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 100-Pack
1 1

Ancor

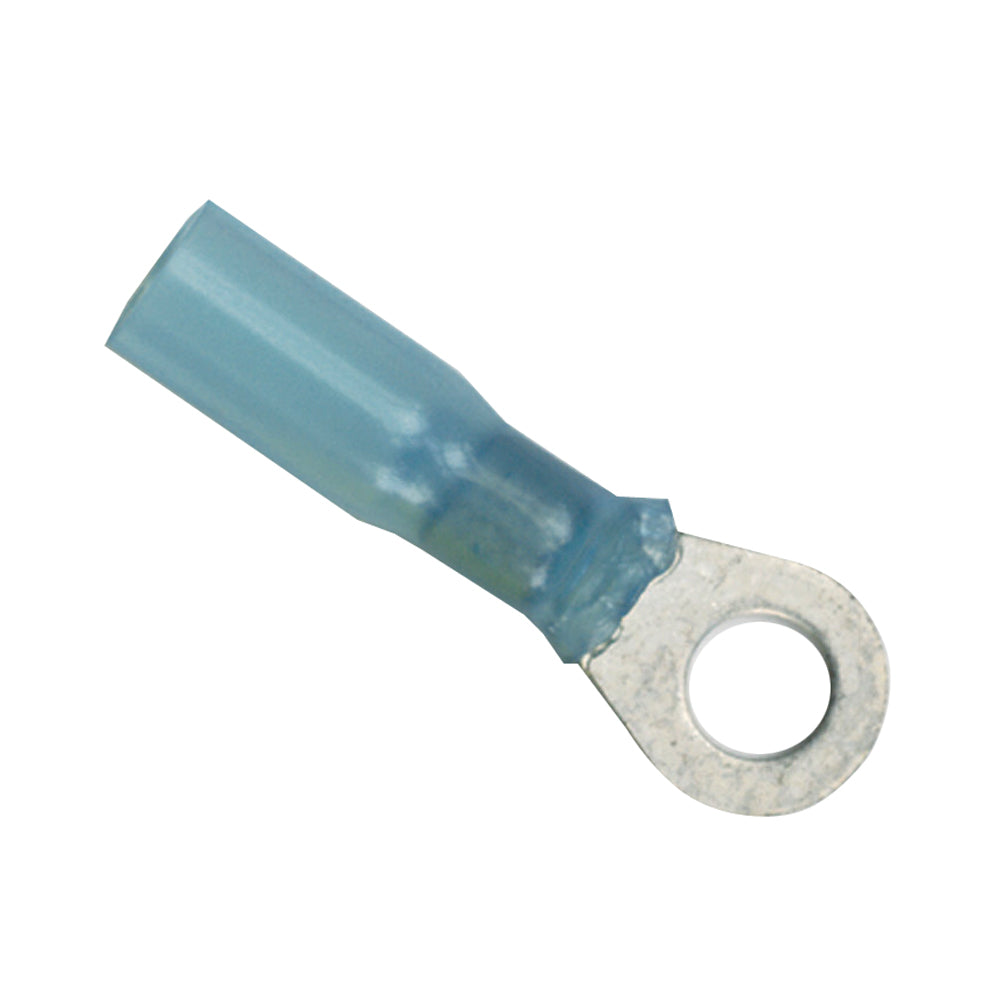

Ancor 16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 100-Pack

Ancor 16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 100-Pack

OM-ANCOR-1614GAUGE-311599

$40.25
$53.09 $40.25
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

16-14 AWGGauge
Ring TerminalsType
100Package Qty
YesHeat Shrink

Finish marine wiring connections with Ancor heat shrink ring terminals sized for 16-14 gauge wire and 5/16-inch screws. This 100-pack combines copper terminals with adhesive-lined sleeves that seal when heated and help relieve strain at the connection.

Key features

  • Heat-activated adhesive creates a watertight seal while helping protect against salt water, oil, acids and sunlight.
  • Sleeves shrink to one-third of their starting size to support the connection against strain and vibration.
  • Tinned copper combines electrical conductivity with corrosion resistance.
  • Nylon insulation resists water, chemicals, sunlight and cut-through damage.
  • Brazed seams add strength to the terminals.

Specifications

  • Terminal type: Heat shrink ring
  • Wire range: 16-14 gauge
  • Screw size: 5/16 inch
  • Quantity: 100
  • Terminal material: Tinned pure copper
  • Tubing material: Cross-linked polyolefin
  • Insulator material: Nylon
  • Shrink ratio: 3:1
  • Shrink temperature: 257°F / 125°C
  • Operating temperature range: 40°C to 110°C
  • Certifications: UL Listed and CSA Recognized

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Gauge16-14 AWG
TypeRing Terminals
Package Qty100
Heat ShrinkYes
BrandAncor
Manufacturer part #311599
UPC091887313185
Boxed dimensions8 x 3 x 1 in
Shipping weight0.4 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
