• Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 3-Pack
1 1

Ancor

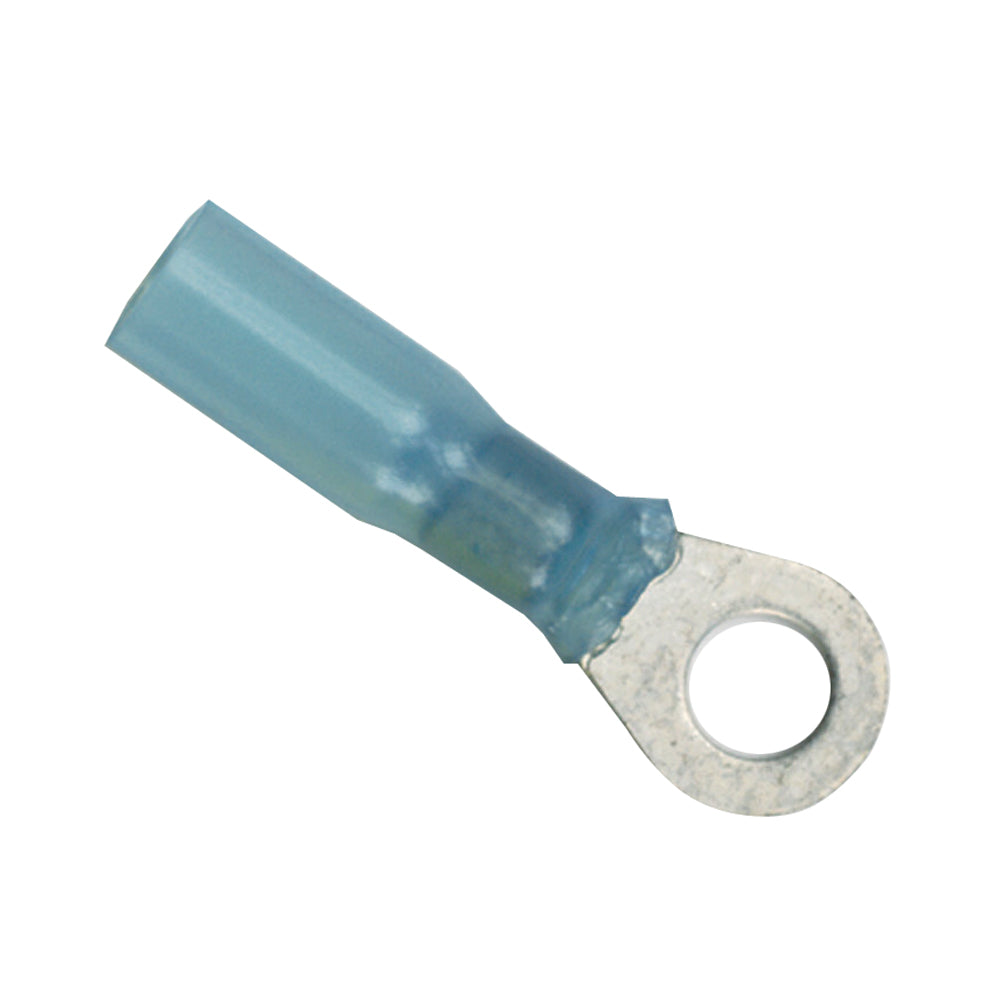

Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 3-Pack

Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 3-Pack

OM-ANCOR-1614GAUGE-311603

$13.99
$13.99
Shipping calculated at checkout.

Low stock: 1 left
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

16-14 AWGGauge
Ring TerminalsType
3/8"Post Size
3Package Qty
YesHeat Shrink

These Ancor heat shrink ring terminals are made for 16-14 gauge wire and a 3/8" screw size. The 3-pack is suited to marine electrical work where a sealed terminal, strain relief and corrosion resistance are needed.

  • Wire range: 16-14 gauge
  • Screw size: 3/8"
  • Quantity: 3 terminals
  • Tubing: cross-linked polyolefin, stronger than PVC and will not burn like PVC
  • Seal: heat-activated adhesive lining seals against salt water, oil, acids and sunlight
  • Insulator: nylon for marine-grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
  • Approvals: UL Listed and CSA Recognized
  • Shrink ratio: shrinks to 1/3 original size
  • Shrink temperature: 257 degrees F / 125 degrees C
  • Operating temperature range: 40 degrees C to 110 degrees C
  • Terminal construction: tinned pure copper with brazed seam
  • Warning: may expose users to di(2-ethylhexyl)phthalate (DEHP), a chemical known to the State of California to cause cancer, birth defects or other reproductive harm

Specifications

Gauge16-14 AWG
TypeRing Terminals
Post Size3/8"
Package Qty3
Heat ShrinkYes
BrandAncor
Manufacturer part #311603
UPC091887313208
Boxed dimensions4 x 2 x 1 in
Shipping weight0.1 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
