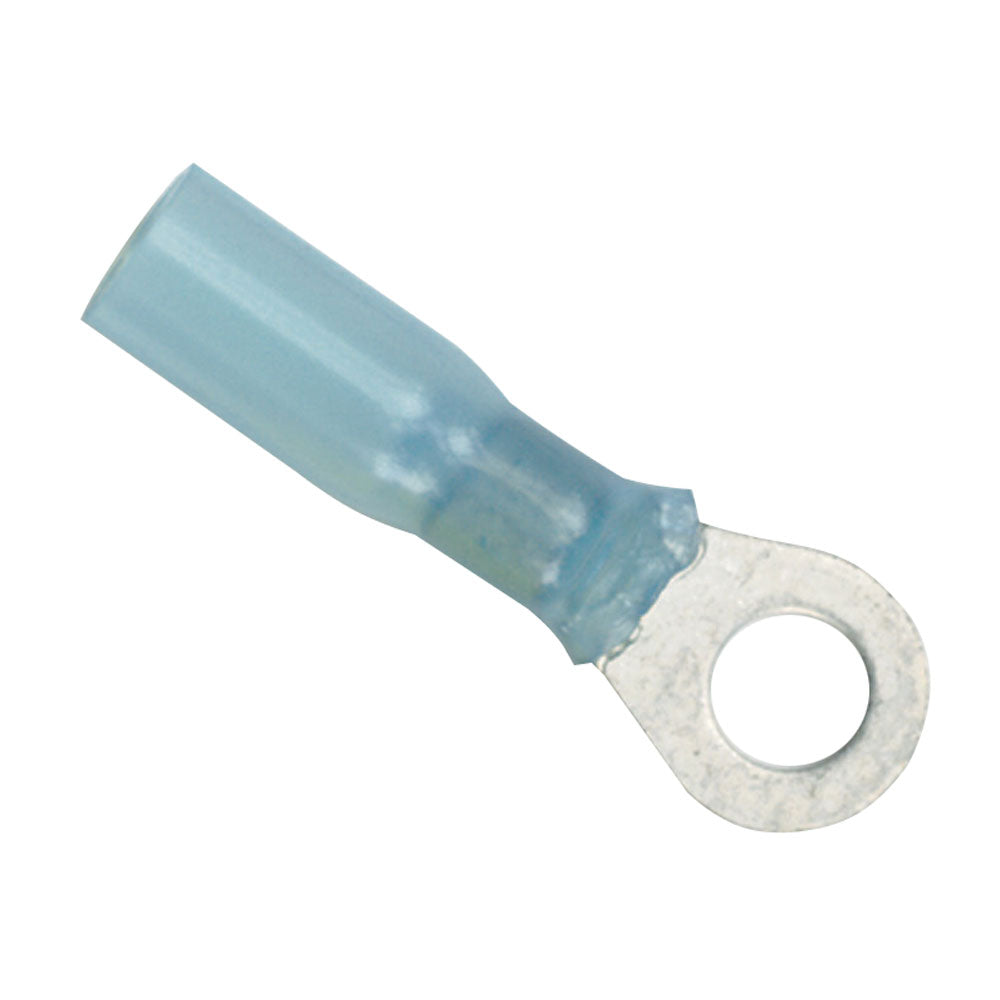

Ancor 16-14 Gauge - 1/4" Heat Shrink Ring Terminal - 25-Pack

Ancor 16-14 Gauge - 1/4" Heat Shrink Ring Terminal - 25-Pack

OM-ANCOR-1614GAUGE-311425

$25.61
$25.93 $25.61
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

16-14 AWGGauge
Ring TerminalsType
1/4"Post Size
25Package Qty
YesHeat Shrink

These Ancor heat shrink ring terminals are sized for 16-14 gauge wire and a 1/4" screw connection. The 25-pack is intended for marine electrical work where sealed insulation, vibration relief, and corrosion resistance are required.

  • Wire size: 16-14 gauge
  • Screw size: 1/4"
  • Quantity: 25 terminals
  • Tubing: Cross-linked polyolefin
  • Seal: Heat-activated adhesive lining seals against salt water, oil, acids, and sunlight
  • Insulator: Nylon marine-grade insulator
  • Listings: UL Listed and CSA Recognized
  • Shrink ratio: Shrinks to 1/3 of original size
  • Shrink temperature: 257 deg F / 125 deg C
  • Operating temperature: 40 deg C to 110 deg C
  • Conductor: Tinned pure copper
  • Seam: Brazed seam
  • California warning: Can expose users to di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

Gauge16-14 AWG
TypeRing Terminals
Post Size1/4"
Package Qty25
Heat ShrinkYes
BrandAncor
Manufacturer part #311425
UPC091887316292
Boxed dimensions5 x 3 x 1 in
Shipping weight0.2 lb
Country of originUNITED STATES
