• Ancor 16-14 Gauge - 1/4" Heat Shrink Ring Terminal - 100-Pack
1 1

Ancor

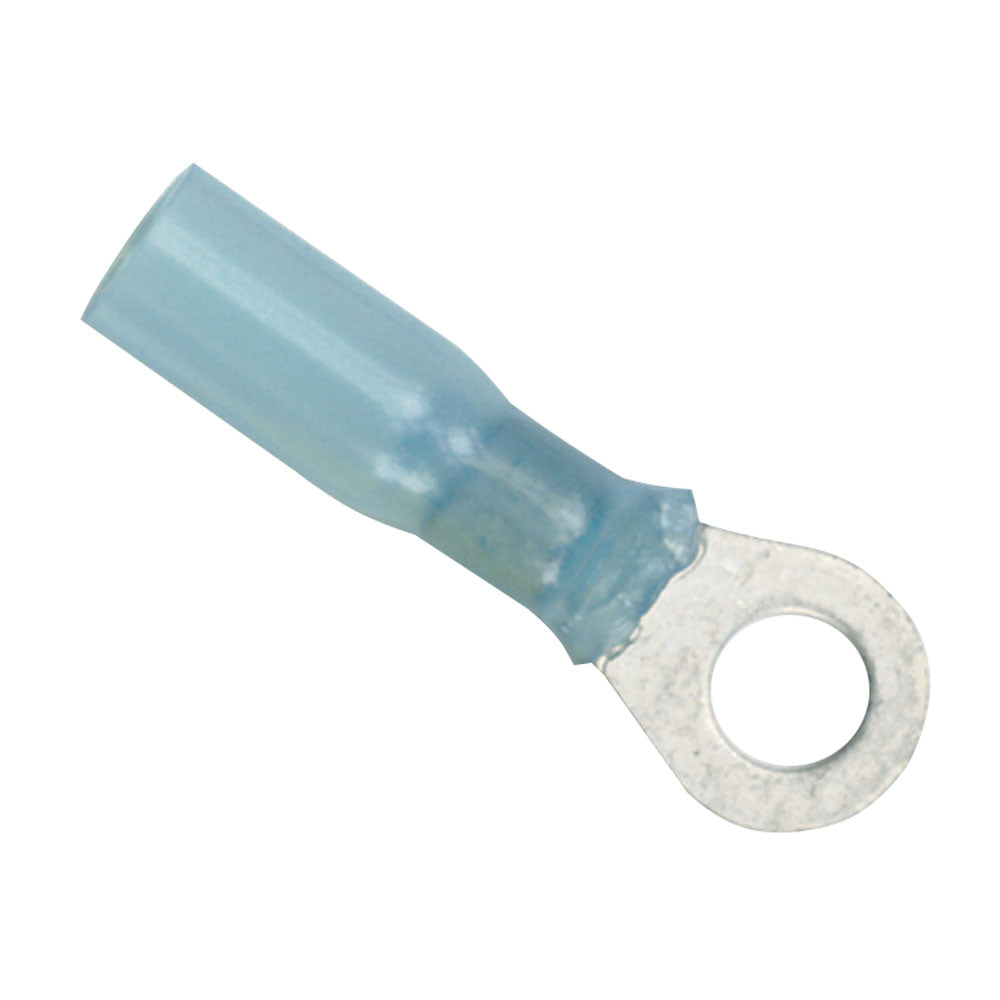

Ancor 16-14 Gauge - 1/4" Heat Shrink Ring Terminal - 100-Pack

Ancor 16-14 Gauge - 1/4" Heat Shrink Ring Terminal - 100-Pack

OM-ANCOR-1614GAUGE-311499

$40.25
$53.09 $40.25
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

16-14 AWGGauge
Ring TerminalsType
1/4"Post Size
100Package Qty
YesHeat Shrink

These Ancor heat shrink ring terminals are sized for 16-14 gauge wire and 1/4 inch screws. The 100-pack is intended for marine electrical connections that need sealed insulation, corrosion resistance, and strain relief.

  • Brand: Ancor
  • Product type: Heat shrink ring terminal
  • Wire gauge: 16-14
  • Screw size: 1/4"
  • Quantity: 100-pack
  • Tubing: Cross-linked polyolefin
  • Seal: Heat-activated adhesive lining
  • Insulator: Nylon
  • Ratings: UL Listed and CSA Recognized
  • Shrink ratio: Shrinks to 1/3 original size
  • Shrink temperature: 257 degrees F / 125 degrees C
  • Operating temperature range: 40 degrees C to 110 degrees C
  • Conductor material: Tinned pure copper
  • Seam: Brazed seam
  • Resistance features: Made for resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Gauge16-14 AWG
TypeRing Terminals
Post Size1/4"
Package Qty100
Heat ShrinkYes
BrandAncor
Manufacturer part #311499
UPC091887313130
Boxed dimensions5 x 3 x 2 in
Shipping weight0.35 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
