• Ancor 12-10 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack
1 1

Ancor

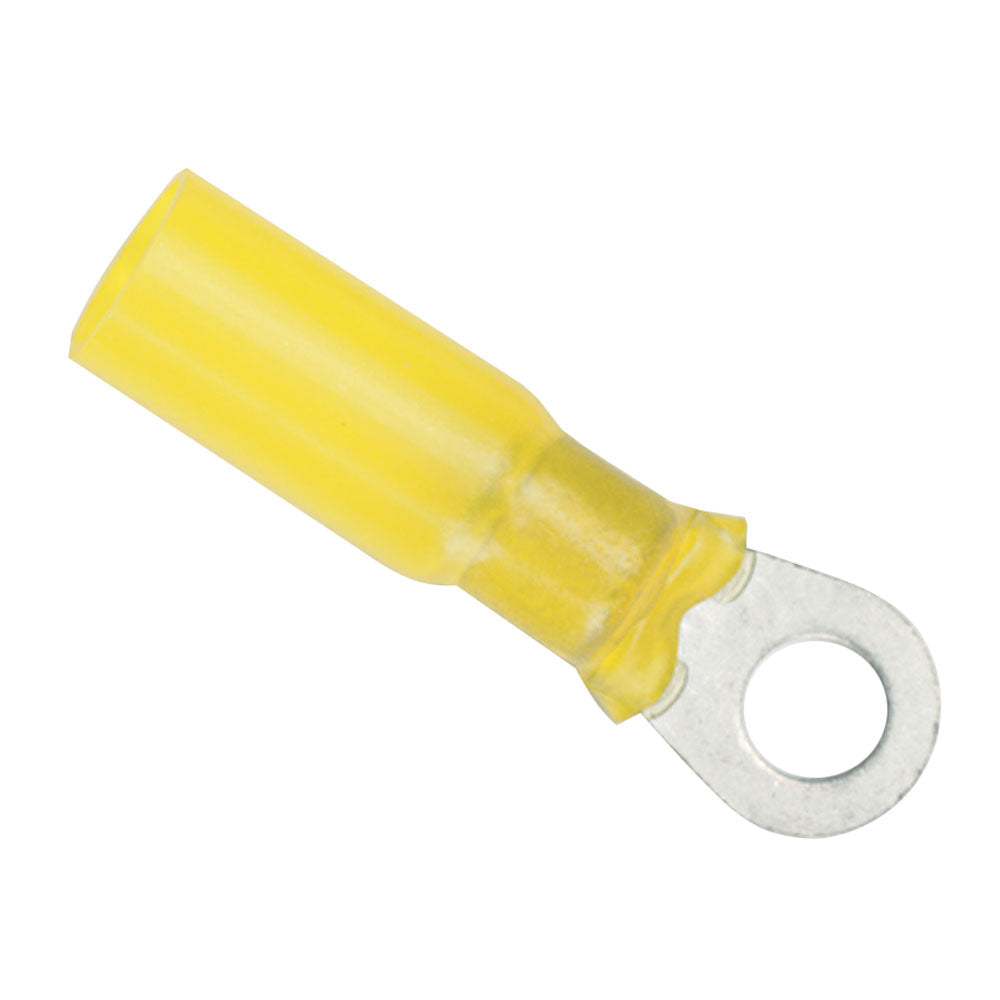

Ancor 12-10 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack

Ancor 12-10 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack

OM-ANCOR-1210GAUGE-312503

$14.59
$14.59
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

12-10 AWGGauge
Ring TerminalsType
5/16"Post Size
3Package Qty
YesHeat Shrink

These Ancor heat shrink ring terminals are made for 12-10 gauge wire and a 5/16" screw connection. The 3-pack is intended for marine electrical work where sealed, strain-relieved and corrosion-resistant terminations are needed.

  • Wire size: 12-10 gauge
  • Screw size: 5/16"
  • Quantity: 3 terminals
  • Tubing: Cross-linked polyolefin
  • Seal: Heat-activated adhesive lining resists salt water, oil, acids and sunlight
  • Insulator: Nylon for marine grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
  • Shrink ratio: Shrinks to 1/3 original size
  • Shrink temperature: 257 deg F/125 deg C
  • Operating temperature: 40 deg C to 110 deg C
  • Conductor: Tinned pure copper with brazed seam
  • Listing: UL Listed and CSA Recognized

Specifications

Gauge12-10 AWG
TypeRing Terminals
Post Size5/16"
Package Qty3
Heat ShrinkYes
BrandAncor
Manufacturer part #312503
UPC091887316148
Boxed dimensions4 x 2 x 1 in
Shipping weight0.1 lb
Country of originUNITED STATES
