• Ancor 12-10 Gauge - 5/16" Heat Shrink Ring Terminal - 100-Pack
1 1

Ancor

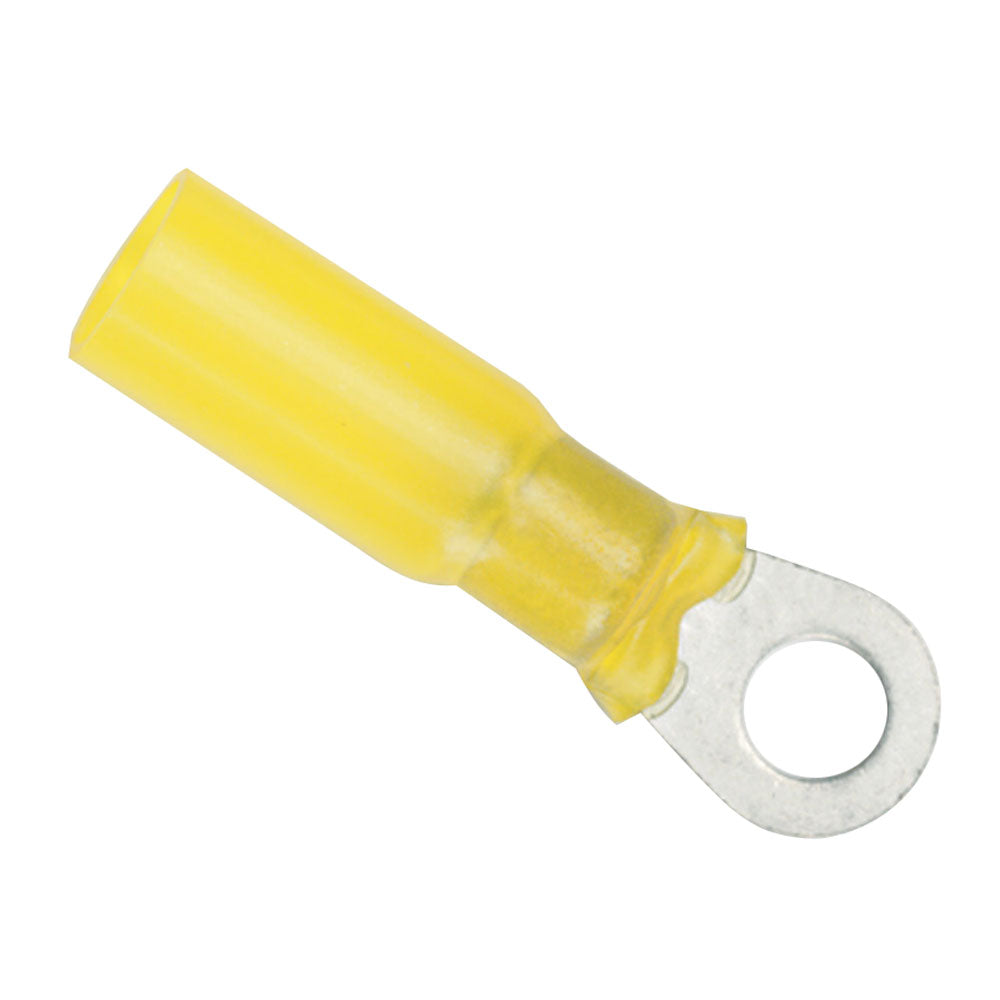

Ancor 12-10 Gauge - 5/16" Heat Shrink Ring Terminal - 100-Pack

Ancor 12-10 Gauge - 5/16" Heat Shrink Ring Terminal - 100-Pack

OM-ANCOR-1210GAUGE-312599

$51.06
$73.16 $51.06
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Ring TerminalsType
5/16"Post Size
100Package Qty
YesHeat Shrink
12-10 AWGGauge

These Ancor heat shrink ring terminals are made for 12-10 gauge marine wiring and fit a 5/16 inch screw size. The 100-pack is intended for electrical work where a sealed, strain-relieved, corrosion-resistant terminal connection is needed.

  • Product type: heat shrink ring terminal
  • Wire gauge: 12-10 gauge
  • Screw size: 5/16 inch
  • Quantity: 100-pack
  • Tubing: cross-linked polyolefin
  • Insulator: nylon
  • Seal: heat activated adhesive lining
  • Resistance: salt water, oil, acids, sunlight, water, chemicals, vibration, and cut-through damage
  • Listings: UL Listed and CSA Recognized
  • Shrink ratio: shrinks to 1/3 original size
  • Shrink temperature: 257 degrees F/125 degrees C
  • Operating temperature range: 40 degrees C to 110 degrees C
  • Terminal material: pure copper
  • Finish: tinned for corrosion resistance
  • Construction: brazed seam
  • Warning: this product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

TypeRing Terminals
Post Size5/16"
Package Qty100
Heat ShrinkYes
Gauge12-10 AWG
BrandAncor
Manufacturer part #312599
UPC091887316186
Boxed dimensions8 x 3 x 2 in
Shipping weight0.55 lb
Country of originUNITED STATES
