• Ancor 12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 3-Pack
1 1

Ancor

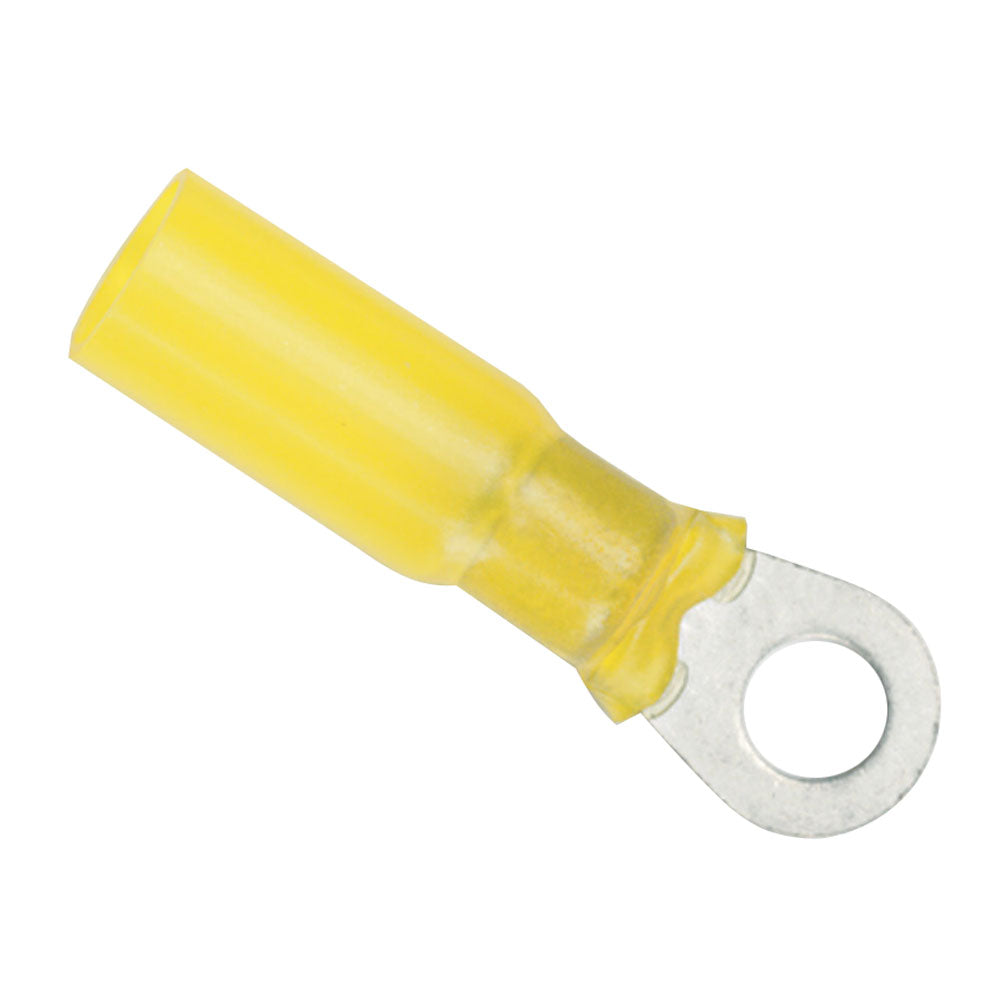

Ancor 12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 3-Pack

Ancor 12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 3-Pack

OM-ANCOR-1210GAUGE-312403

$14.59
$14.59
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

12-10 AWGGauge
Ring TerminalsType
1/4"Post Size
3Package Qty
YesHeat Shrink

These Ancor ring terminals pair 12-10 gauge wire compatibility with a 1/4 inch screw size. Each terminal uses heat shrink insulation with an adhesive lining to create a sealed connection for marine electrical installations.

  • Brand: Ancor
  • Wire size: 12-10 gauge
  • Screw size: 1/4 inch
  • Quantity: 3 terminals
  • Tubing: Cross-linked polyolefin
  • Insulation: Nylon insulator with resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage
  • Seal: Heat-activated adhesive lining for protection from salt water, oil, acids, and sunlight
  • Shrink ratio: Shrinks to 1/3 of original size
  • Shrink temperature: 257 deg F / 125 deg C
  • Operating temperature range: 40 deg C to 110 deg C
  • Terminal material: Tinned pure copper with brazed seam
  • Listings: UL Listed and CSA Recognized

Specifications

Gauge12-10 AWG
TypeRing Terminals
Post Size1/4"
Package Qty3
Heat ShrinkYes
BrandAncor
Manufacturer part #312403
UPC091887316254
Boxed dimensions4 x 2 x 1 in
Shipping weight0.1 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
