• Ancor 12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 100-Pack
1 1

Ancor

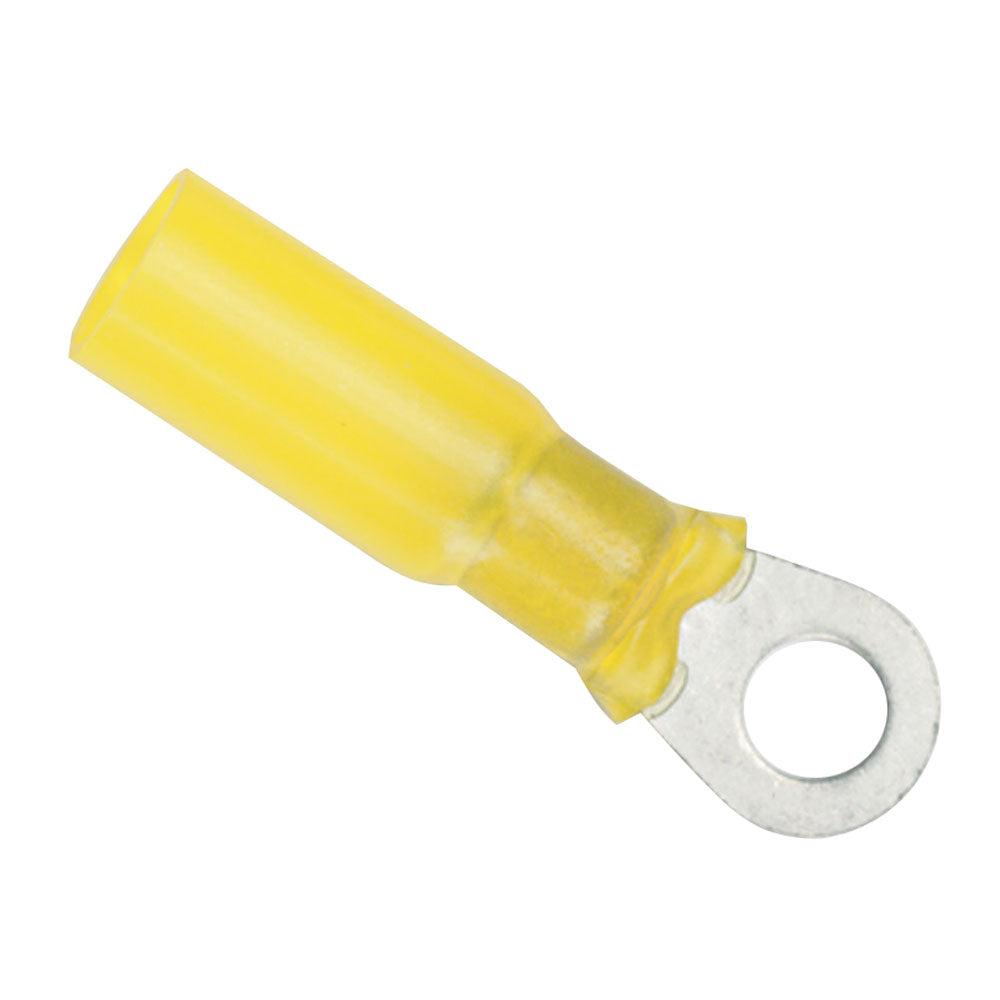

Ancor 12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 100-Pack

Ancor 12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 100-Pack

OM-ANCOR-1210GAUGE-312499

$51.06
$73.16 $51.06
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Ancor Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Ring TerminalsType
1/4"Post Size
100Package Qty
YesHeat Shrink
12-10 AWGGauge

These Ancor heat shrink ring terminals are made for marine electrical terminations using 12-10 gauge wire and a 1/4" stud. The 100-pack is suited for wiring jobs where sealed, strain-relieved ring connections are needed.

  • Wire size: 12-10 gauge
  • Screw size: 1/4"
  • Quantity: 100 ring terminals
  • Heat shrink tubing: cross-linked polyolefin
  • Seal: heat-activated adhesive lining
  • Insulator: nylon
  • Shrink ratio: shrinks to 1/3 of original size
  • Shrink temperature: 257 deg F or 125 deg C
  • Operating temperature range: 40 deg C to 110 deg C
  • Terminal construction: tinned pure copper with brazed seam
  • Listings: UL Listed and CSA Recognized
  • Resistance claims: designed for exposure to salt water, oil, acids, sunlight, chemicals, vibration, and cut-through damage
  • Warning: this product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

TypeRing Terminals
Post Size1/4"
Package Qty100
Heat ShrinkYes
Gauge12-10 AWG
BrandAncor
Manufacturer part #312499
UPC091887316131
Boxed dimensions8 x 3 x 2 in
Shipping weight0.6 lb
Country of originUNITED STATES
