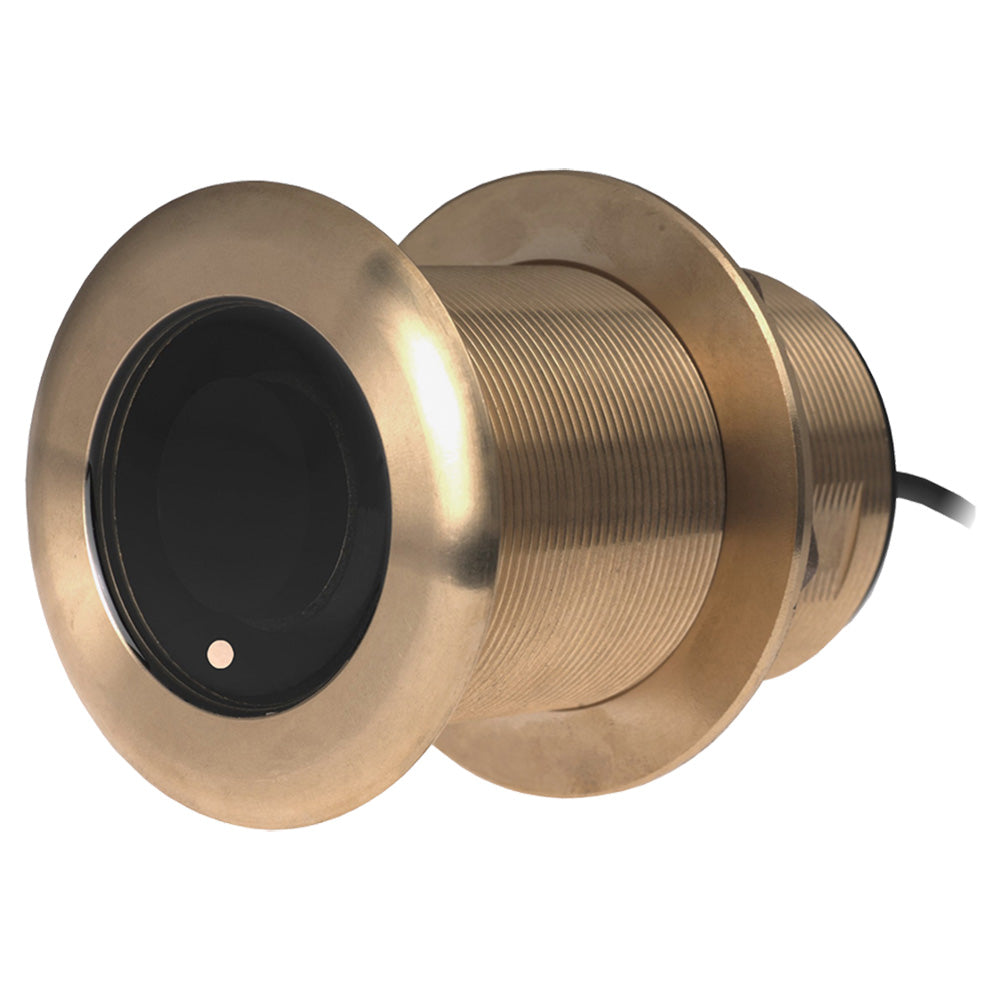

Airmar B60 Thru-Hull Transducer 20° Tilt 9-Pin f/Navico xSonic

Track depth and water temperature with the Airmar B60 thru-hull transducer for Navico xSonic. Suited to fishing and leisure boats with fiberglass or wood hulls, this version has a 20° tilted element that compensates for hull deadrise to direct the beam downward.

Key features

• Dual-frequency operation provides a wide 45° beam at 50 kHz and a narrower 12° beam at 200 kHz.
• The fixed 20° element angle compensates for hull slope while the housing sits nearly flush.
• Fast-response temperature sensing adds water temperature information alongside depth.
• A low-profile housing projects just 5 mm outside the hull, making it suitable for center-console and trailered boats.

Specifications

• Model: B60
• Connection: 9-pin for Navico xSonic
• Power rating: 600 W
• Frequencies: 50/200 kHz
• Beamwidths: 45° at 50 kHz; 12° at 200 kHz
• Element tilt: 20°
• Maximum hull deadrise: 24°
• Functions: Depth and temperature
• Housing material: Bronze
• Acoustic window material: Urethane
• Hull materials: Fiberglass or wood
• Maximum vessel length overall: 8 m (26 feet)
• Hole size: 60 mm (2-3/8 inches)
• Usable shaft length: 68.5 mm (2.70 inches)
• Projection outside hull: 5 mm (3/16 inch)
• Mounting style: Tilted element thru-hull
• Retractable housing: No
• Weight: 1.4 kg (3 lbs.)
